DM-NAX-8ZSA

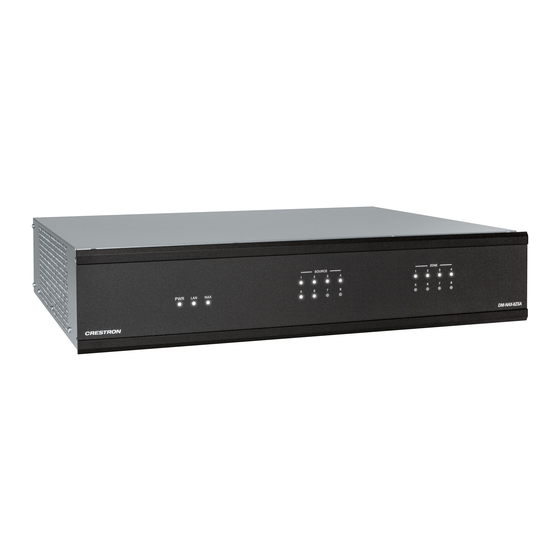

DM NAX™ 8-Zone Streaming Amplifier
The Crestron®
DM-NAX-8ZSA
Streaming services are built-in with media player access available for each stereo amplified zone.
Front Panel
In the Box
1
DM-NAX-8ZSA
Additional Items
2
Bracket, Rack Ear, 2 RU (2053799)
1
Power Cord, approx. 6.5 ft (2 m) (2014835)
1
Cable, CAT6, RJ45-to-RJ-45, approx. 5 ft (1.5 m) (2036196)
16
Connector, 2-Pin (2012361)
2
Connector, 4-Pin (2003576)
3
Connector, 5-Pin (2003577)
6
Screw, 4B x 1/4 in., Pan Head, Phillips (2007195)
is a next generation Audio-over-IP (AoIP) amplifier that puts Crestron multiroom audio distribution on the network.
Quick Start
1
Advertisement
Table of Contents
Related Manuals for Crest Audio DM-NAX-8ZSA
Summary of Contents for Crest Audio DM-NAX-8ZSA
- Page 1 DM-NAX-8ZSA Quick Start DM NAX™ 8-Zone Streaming Amplifier The Crestron® DM-NAX-8ZSA is a next generation Audio-over-IP (AoIP) amplifier that puts Crestron multiroom audio distribution on the network. Streaming services are built-in with media player access available for each stereo amplified zone.
-
Page 2: Install The Device
Quick Start DM-NAX-8ZSA DM NAX™ 8-Zone Streaming Amplifier Rack Installation This device occupies 2 RU of rack space. Install the Device To install the included rack ears: Refer to the Safety Instructions (Doc. 6607) prior to installation. 1. Use a #1 Phillips screwdriver to remove the three screws from each The device can be placed on a table or installed in a rack. -
Page 3: Connect The Device
Quick Start DM-NAX-8ZSA DM NAX™ 8-Zone Streaming Amplifier Rack Mounting Safety Precautions Elevated Operating Ambient Temperature: If installed in a closed or Connect the Device multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. - Page 4 Quick Start DM-NAX-8ZSA DM NAX™ 8-Zone Streaming Amplifier Rear Panel...
-
Page 5: Digital Inputs
NOTE: The Line Outputs 1-4 mirror their respective Speaker Outputs 1-4. These outputs can feed another amplifier or an active subwoofer. Conventional Wiring Connect speakers to the DM-NAX-8ZSA as shown in the following NOTE: Only 2-channel PCM digital audio is supported at the digital illustration. inputs. -
Page 6: Configure The Device
Quick Start DM-NAX-8ZSA DM NAX™ 8-Zone Streaming Amplifier Balanced/Unbalanced Audio Output Bridged Wiring Connect speaker outputs as shown in the following illustration to deliver Refer to the following table and illustration for analog audio output pin more power to the speakers (8 ohm speakers only). - Page 7 To stream media from an iOS device to a speaker zone in your distributed audio system: 1. Ensure that the iOS device and DM-NAX-8ZSA are on the same network. 2. On the DM-NAX-8ZSA, enable AirPlay for the built-in media player you would like to stream to, either using the web UI or programming.
- Page 8 To stream media from a device to a speaker zone in your distributed audio system: Network Reset 1. Ensure that the device and DM-NAX-8ZSA are on the same network. 1. Ensure the device is powered on. 2. On the DM-NAX-8ZSA, enable Spotify for the built-in media player 2.
-
Page 9: Legal Notice
Quick Start DM-NAX-8ZSA DM NAX™ 8-Zone Streaming Amplifier LED Indicator Color Meaning The SETUP button is pressed. SETUP Solid Red Observe the LED Indicators A network reset or factory restore has Blinking Red been initiated via the adjacent SETUP Refer to the following table for information about the LED indicators on button. - Page 10 Quick Start DM-NAX-8ZSA DM NAX™ 8-Zone Streaming Amplifier Additional Information Original Instructions The U.S. English version of this document is the original instructions. All other languages are a translation of the original instructions. Regulatory Model: M1845004 Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited nonexclusive, nontransferable Software Development Tools License Agreement.
