Constant cosφ
7.2.6.4.3
When this Mode is turned on, inverter will maintain power factor as a constant
value. Users can set power factor from Cap 0.80 to Ind 0.80.
cosφ(P)
7.2.6.4.4
The output power factor would be affected by feeding power. Lock-in voltage and
Lock-out voltage are only adjustable if Country setting is Italy BT or Italy MT.
Inverter would feed-in reactive power depends on active power once Grid voltage
is higher than Lock-in voltage and back to pure active power when Grid voltage is
lower than Lock-out voltage. For the countries other than Italy, cosφ (P) control
will not concern Grid voltage.
Reactive Power Control
Upper limit - cosφ
a
Lower Power
b
Lower limit - cosφ
c
Upper Power
d
Lock-in Voltage
Reactive Power Control
Lock-out Voltage
Lock-out Voltage
Mode
Reactive Power Control
cosφ
Mode

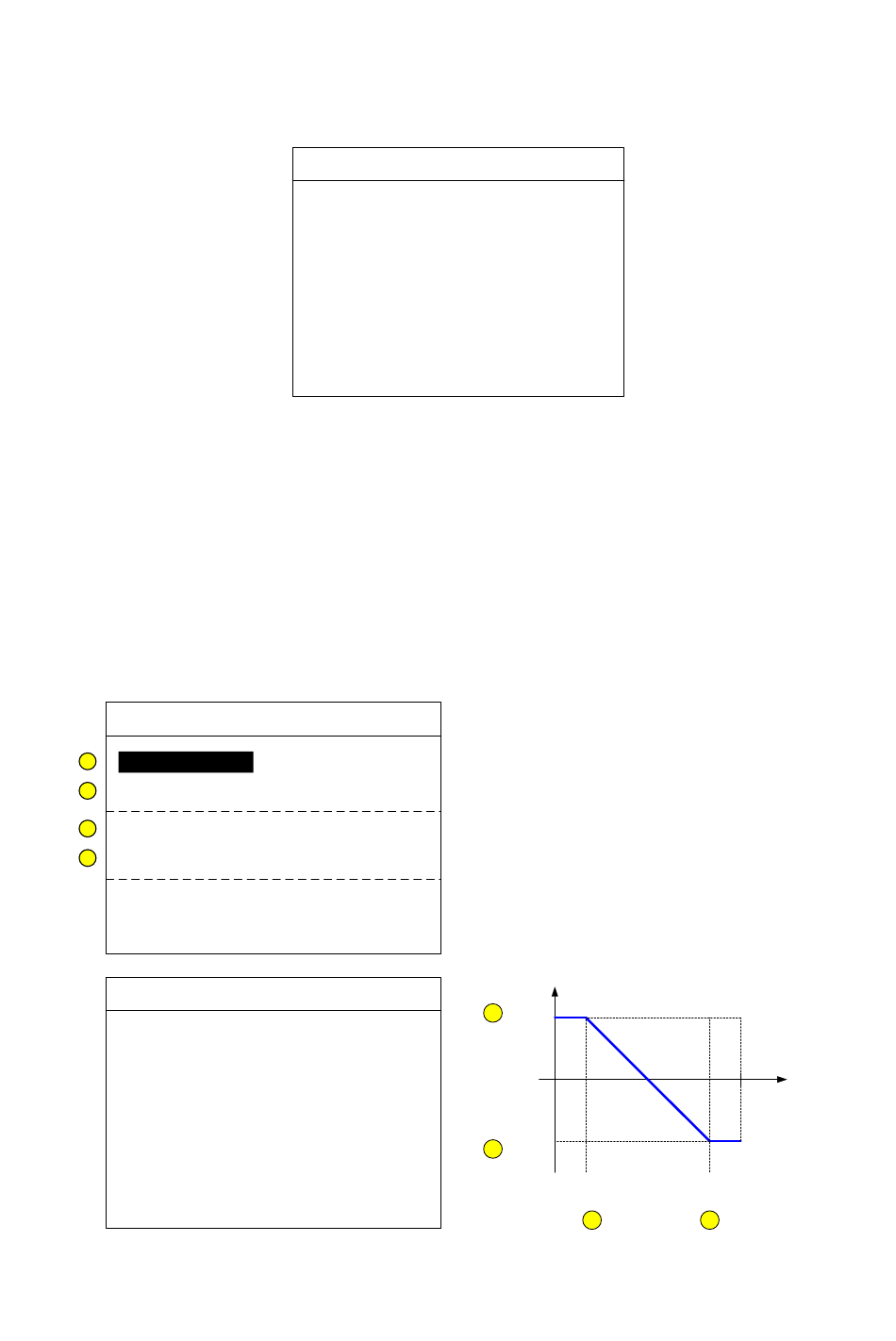

Figure 7-21 Constant cosφ setting page
21. Jun 2010 13:50
[
Cap 0.90
]
[
0
] %
[
Ind 0.90
]
[
100
] %
[
241.5
] V
21. Jun 2010 13:50
[
[
230.0
]
]
V
[
OFF
]
Figure 7-22 cosφ(P) setting page
21. Jun 2010 13:50
[
Ind 0.90
]
[
ON
]
cosφ
Upper
a
Limit
Lower
c
Limit
Lower
Power
b
1
P/Pn
Upper
Power
d
42
