2.4 Identify of Inverter

Users can identify the model number by the information on the product label. The
model number, specification and the series No. is specified on the product label.

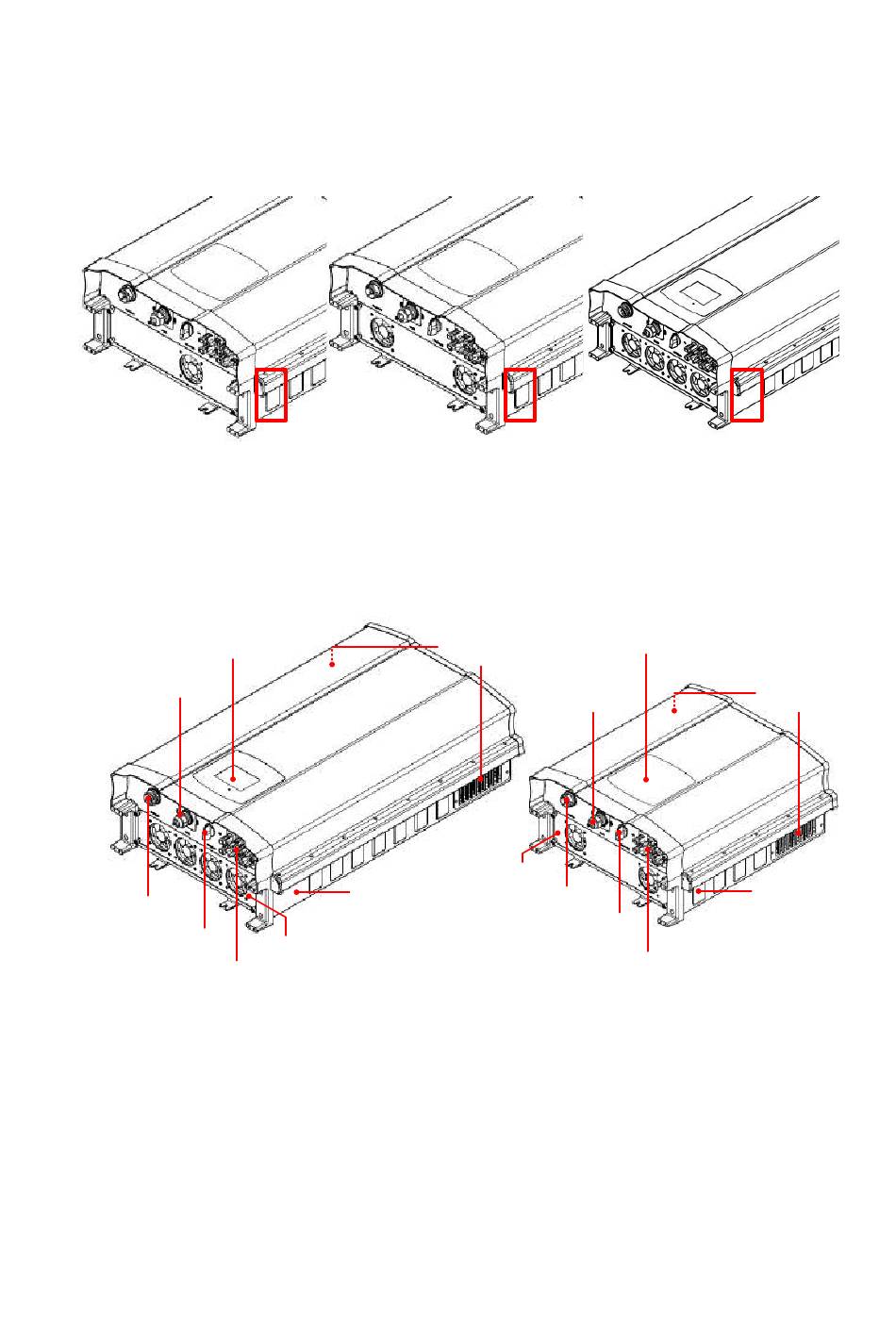

Regard to the label location, please refer to the figure 2-3.
RPI-M8/ M10/ M12

3. Product Overview

3.1 Exterior Objects

LCD/LED Display
and Buttons
Communication
Connetions
AC Connectors
DC Switch
DC Connectors
RPI-M15A/ M20A
Figure 2-3 The identification label
Label
RPI-M15/ M20/ M30
Fan*4
Figure 3-1 Inverter exterior objects
RPI-M15/ M20/ M30
LCD/LED Display
and Buttons
Air outlets
Communication
Connetions
Fan*1 or 2
AC Connectors
DC Switch
DC Connectors
Air outlets
Label
RPI-M8/ M10/ M12/
M15A/ M20A
