7.2.2 Energy Log

After pressing ENT in this page, user can view the historical data about power
generating yearly, monthly, and daily.
Energy Log - Total
21. Jun 2010 13:50
Life Energy: 29200 kWh
ENT
Life Runtime: 3651 Hours
Total CO2 Saved: 54312 kg
Total Earning: 0 €
EXIT
History

7.2.3 Event Log

When entering this page, the display will show all the events (error or fault) and it
can show 30 records at most with the latest one on the top. When pressing ENT,
user can view all the statistic data.
Event Log
1. 15/02/2010 17:02
2. 02/12/2009 09:13
3. 23/11/2009 15:28
4. 03/10/2009 06:02
5. 27/05/2009 05:52
6. 18/02/2009 16:46
Energy Log - Year
21. Jun 2010 13:50
2010
kWh
4500
3750
3000
2250
1500
750
0
1 2 3 4 5 6 7 8 9 10 11 12 Month Month
Peak Month: May, 2354 kWh
E-Year: 17033 kWh Year CO2 Saved: 31681 kg
Exit 2009 Month
Energy Log - Year
21. Jun 2010 13:50
2009 2009
kWh
4500
3750
3000
2250
1500
750
0
1 2 3 4 5 6 7 8 9 10 11 12
Month Month
Peak Month: Jul, 2490 kWh
E-Year: 29200 kWh Year CO2 Saved:
54312 kg
Exit 2008 2010 Month
EXIT

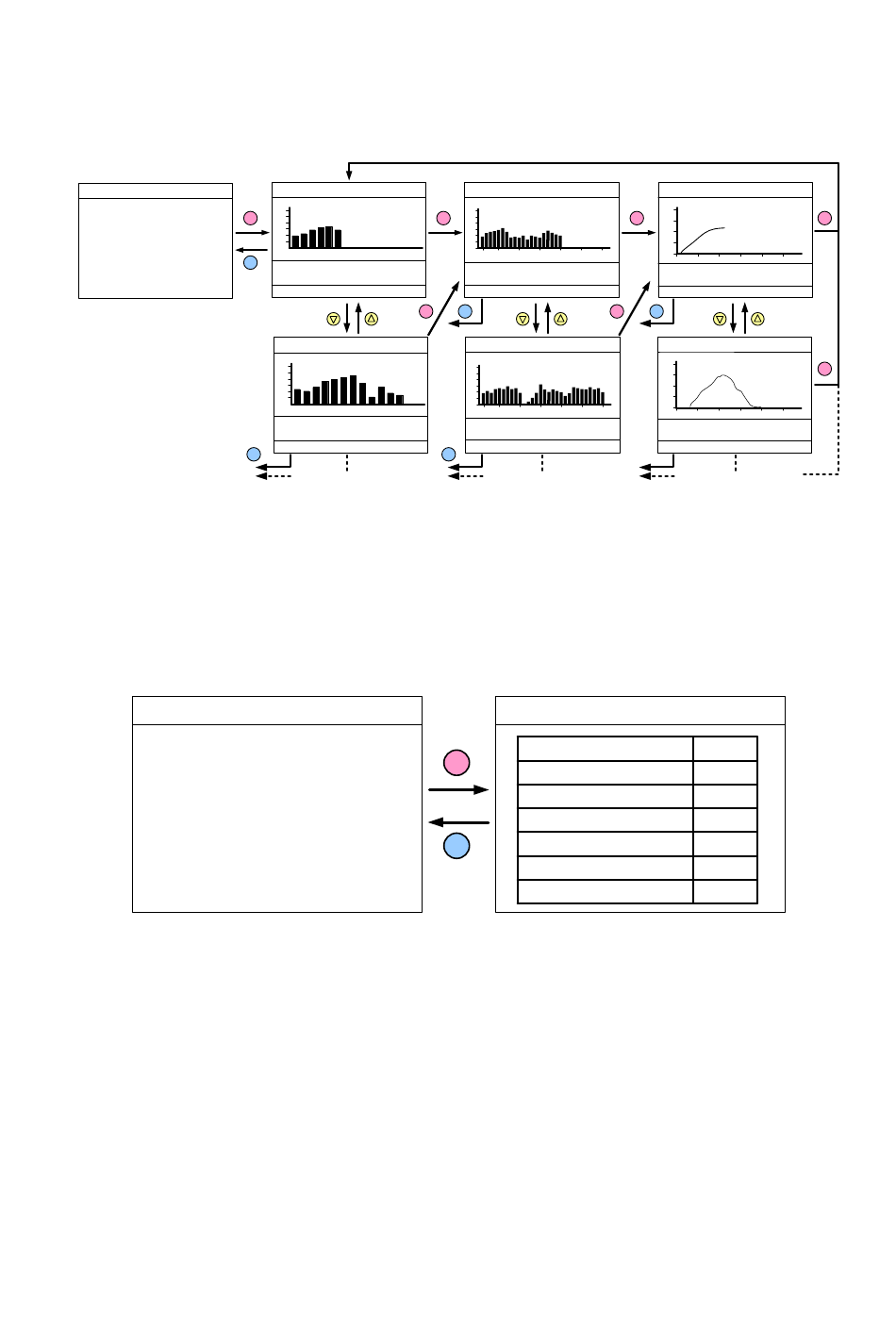

Figure 7-7 Energy log flow chart
21. Jun 2010 13:50
AC Freq High
No Grid
HW Fan
Insulation
Insulation
HW DC Injection
Summary
Figure 7-8 Event log flow chart
