Side
l Output Tray
All printed documents are ejected from this slot.
m Ejection Guide
Guides printed documents as they are ejected.
n Top Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer, as needed.
(See "Top Cover (Inside).")
o Width Guide
When loading the sheets , move the guide to match the paper size.
p Stand
A stand that holds the printer. Equipped with casters to facilitate moving it. (See "Stand.")
Side Side

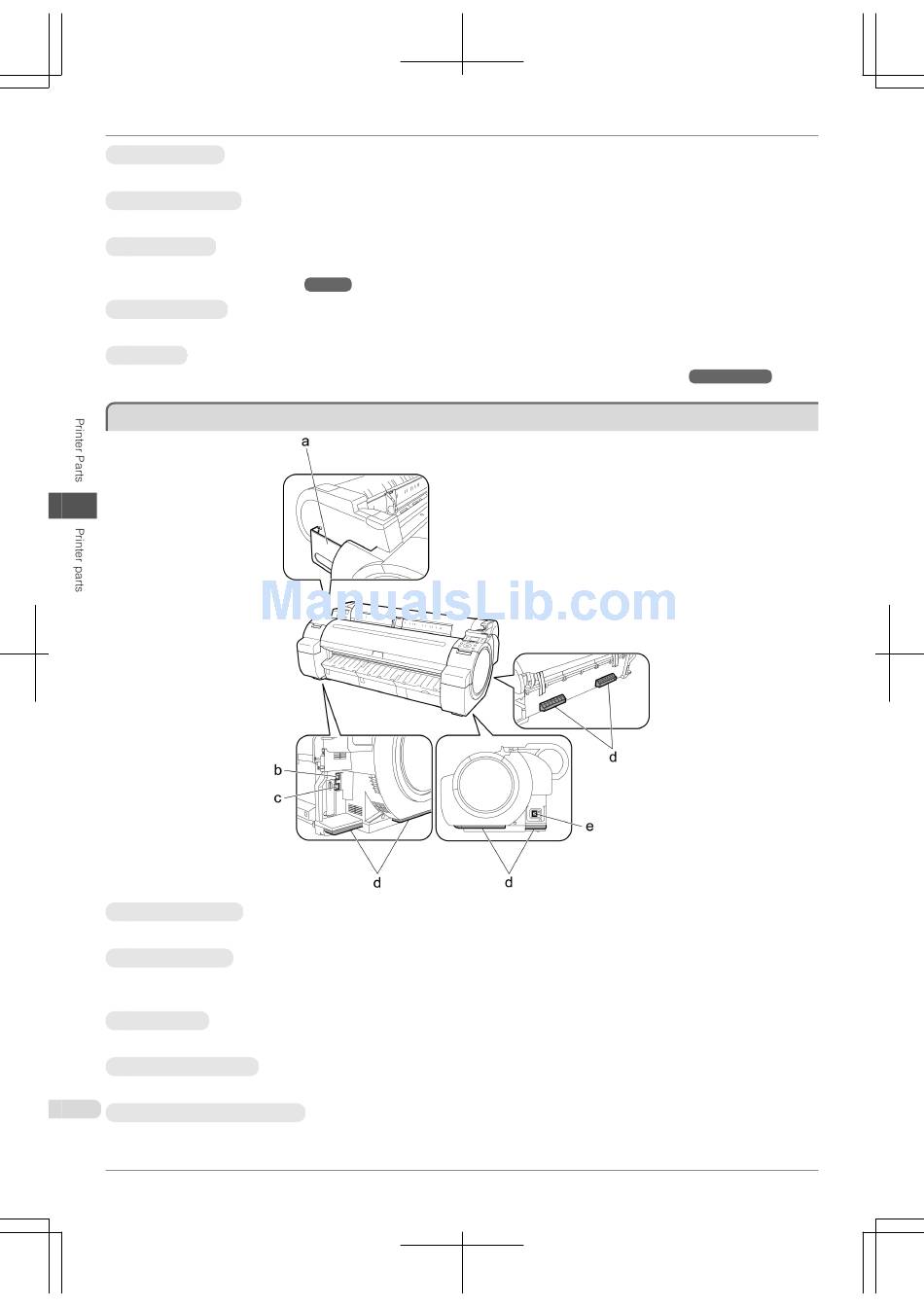

a Manual Pocket
Store printer manuals in this pocket.
b Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly and commu-
nication is possible between the computer and printer.
c USB Port
Connect a USB cable to this port. The printer is compatible with Hi-Speed USB connections.
d Carrying Handles
When carrying the printer, have three people hold it by these handles on the back at both ends.
56
e Power Supply Connector
Connect the power cord to this connector.
→P.57
iPF765
→User's Guide
Basic Guide
