Printer parts

Printer parts
Front .............................................................................................................................................................. 55
Side ............................................................................................................................................................... 56
Top Cover (Inside) ........................................................................................................................................ 57
Roll Cover (Inside) ........................................................................................................................................ 58
Carriage ........................................................................................................................................................ 58
Ink Tank Cover (Inside) ................................................................................................................................ 59

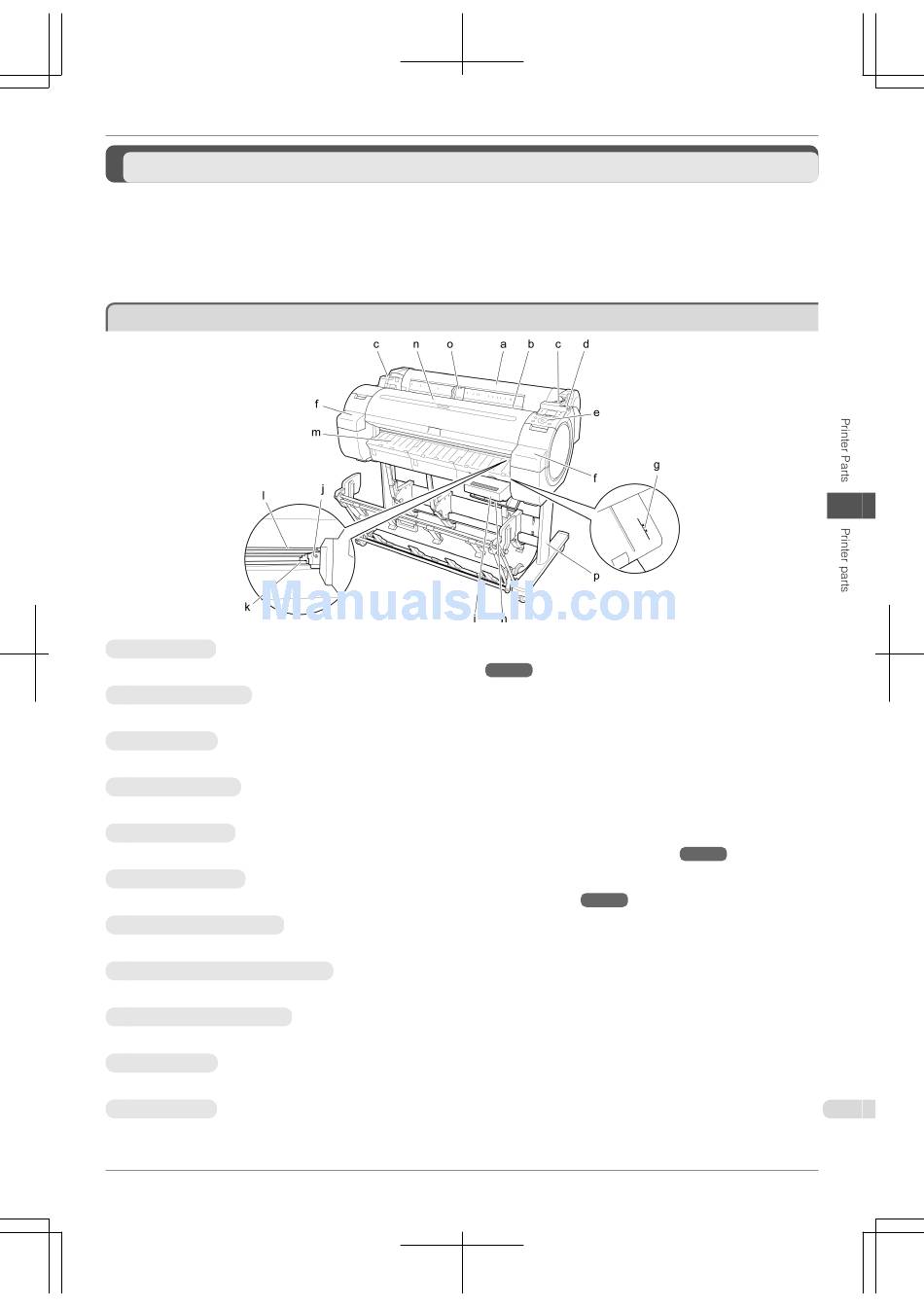

Front
Front
a Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).")
b Paper Feed Slot
When loading paper, insert it here.
c Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d Release Lever
When releasing the Paper Retainer, push this lever back.
e Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.")
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).")
g Paper Alignment Line
An orange line for alignment of paper.
h Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge.
i Maintenance Cartridge
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the cartridge when it is full.)
j Cutter Unit
A round-bladed cutter for automatic roll cutting.
k Cutter Rail
The Cutter Unit passes over this rail to cut paper.
Basic Guide
→P.58
→P.59
Front
→P.43
