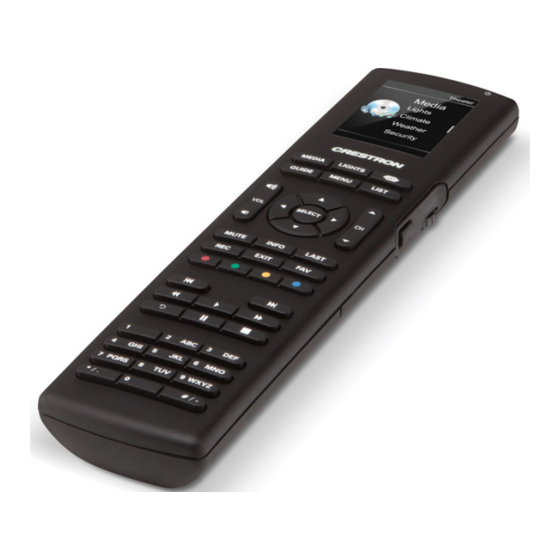

- Page 1 Crestron MLX-3N Color LCD Handheld Wireless Remote ® with infiNET EX Configuration Guide...
- Page 2 United States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Color LCD Handheld Wireless Remote with infiNET EX Contents ® Color LCD Handheld Wireless Remote with infiNET EX : MLX-3N Navigate the MLX-3N ....................... 1 Access the Setup Screens ......................2 Configure the MLX-3N ......................4 Radio ........................... 4 Backlights ........................9 About ......................... -
Page 5: Navigate The Mlx-3N
Color LCD Handheld Wireless Remote with infiNET EX Color LCD Handheld Wireless ® Remote with infiNET EX : MLX-3N Navigate the MLX-3N The MLX-3N uses a scroll wheel and a “MenuBack” button to navigate through the LCD display. Highlighted Item Scroll Wheel “MenuBack” Button •... -
Page 6: Access The Setup Screens
Color LCD Handheld Wireless Remote with infiNET EX Crestron MLX-3N Access the Setup Screens The MLX-3N is configured from the setup screen. NOTE: If no project has been loaded or if an invalid project has been loaded, the MLX-3N defaults to the setup menu screen. - Page 7 ® Crestron MLX-3N Color LCD Handheld Wireless Remote with infiNET EX NOTE: To activate the setup functions during regular operation of the MLX-3N, press MEDIA, LIGHTS, and GUIDE in sequence twice within a five second period. ® Configuration Guide – DOC. xxxxA Color LCD Handheld Wireless Remote with infiNET EX : MLX-3N •...
-
Page 8: Configure The Mlx-3N
Information” screen, shown in the following illustration. “Radio Information” Screen The “Radio Information” screen can be used to access information about the MLX-3N remote and about the gateway with which it is communicating. ® 4 • Color LCD Handheld Wireless Remote with infiNET EX : MLX-3N Configuration Guide –... - Page 9 “Remote RF Info” screen, shown in the following illustration. “Remote RF Info” Screen The “Remote RF Info” screen shows whether the MLX-3N has been acquired by a gateway as well as the MLX-3N’s current RF ID, channel setting and EUID (Effective User ID).
- Page 10 “Radio RF ID” Screen The “Radio RF ID” screen shows the MLX-3N’s current RF ID and allows the option to change the RF ID. To exit the “Radio RF ID” screen without changing the setting, either turn the scroll wheel to highlight No and press the scroll wheel or simply press the “MenuBack”...
- Page 11 “Radio Acquire” screen, shown in the following illustration. “Radio Acquire” Screen 1 Before the MLX-3N can be used, it must first be acquired by a CEN-RFGW-EX ® gateway (sold separately) that is connected to an infiNET EX system.
- Page 12 “Radio Acquire” Screen 2 Put the CEN-RFGW-EX in Acquire mode by pressing its ACQUIRE button (on the unit itself or from Crestron Toolbox™, as described in the latest version of the CEN-RFGW-EX infiNET EX Gateway Operations & ®...
-
Page 13: Backlights
“Radio Acquire” Screen 4 Press the scroll wheel to take the MLX-3N out of Acquire mode and return to the “Radio Options” screen. Press the “MenuBack” button to exit from the “Radio Options” screen. - Page 14 ® Color LCD Handheld Wireless Remote with infiNET EX Crestron MLX-3N Backlights – Screen Level To change the screen backlight setting, turn the scroll wheel to highlight Screen Level and press the scroll wheel to go to the “Change Screen Level” screen, shown in the following illustration.
-
Page 15: About
“About” screen, shown in the following illustration. “About” Screen The “About” screen can be used to access information about the project loaded on the MLX-3N, information about the MLX-3N itself and version information. ® Configuration Guide – DOC. xxxxA Color LCD Handheld Wireless Remote with infiNET EX : MLX-3N •... - Page 16 “Device Info” screen, shown in the following illustration. “Device Info” Screen The “Device Info” screen provides the name, MNET ID and TSID for this MLX-3N. Press the “MenuBack” button to return to the “About” screen. ®...
-
Page 17: Battery
“Versions” screen, shown in the following illustration. “Versions” Screen The “Versions” screen provides information about the MLX-3N, firmware, radio and bootloader (a small program that loads and starts the operating system when power is applied to the MLX-3N). -
Page 18: Exit Setup
EXIT (if it is not already highlighted) and press the scroll wheel to leave the setup screens, reboot the MLX-3N and start the project that is loaded in the MLX-3N. To return to the “Setup Options” screen, turn the scroll wheel to highlight Back to SETUP and press the scroll wheel. - Page 19 ® Crestron MLX-3N Color LCD Handheld Wireless Remote with infiNET EX This page is intentionally left blank. ® Configuration Guide – DOC. xxxxA Color LCD Handheld Wireless Remote with infiNET EX : MLX-3N • 15...
- Page 20 Crestron Electronics, Inc. Configuration Guide – DOC. 7527A (2036431) 15 Volvo Drive Rockleigh, NJ 07647 Tel: 888.CRESTRON 04.13 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
