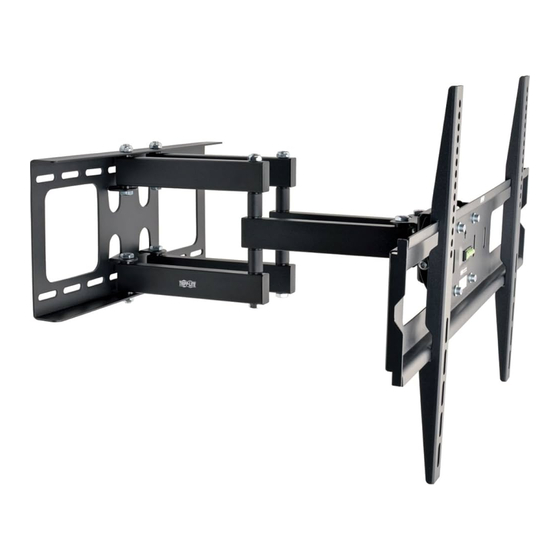

Full Motion Flat Screen
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR
PROPERTY DAMAGE MAY OCCUR!
200x200/300x300/
400x200/400x400/
600x400
Este manual esta disponible en español en la página de Tripp Lite: www.tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : www.tripplite.com
Русскоязычная версия настоящего руководства представлена на веб-сайте компании
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar: www.tripplite.com
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
14-10-260-9333EB.indd 1
Owner's Manual
Wall Mount
MODEL: DWM3770X
Tripp Lite по адресу: www.tripplite.com
Copyright © 2015 Tripp Lite. All rights reserved.
70"
MAX
1
75kg
(165lbs)
MAX
1/6/2015 4:25:51 PM
