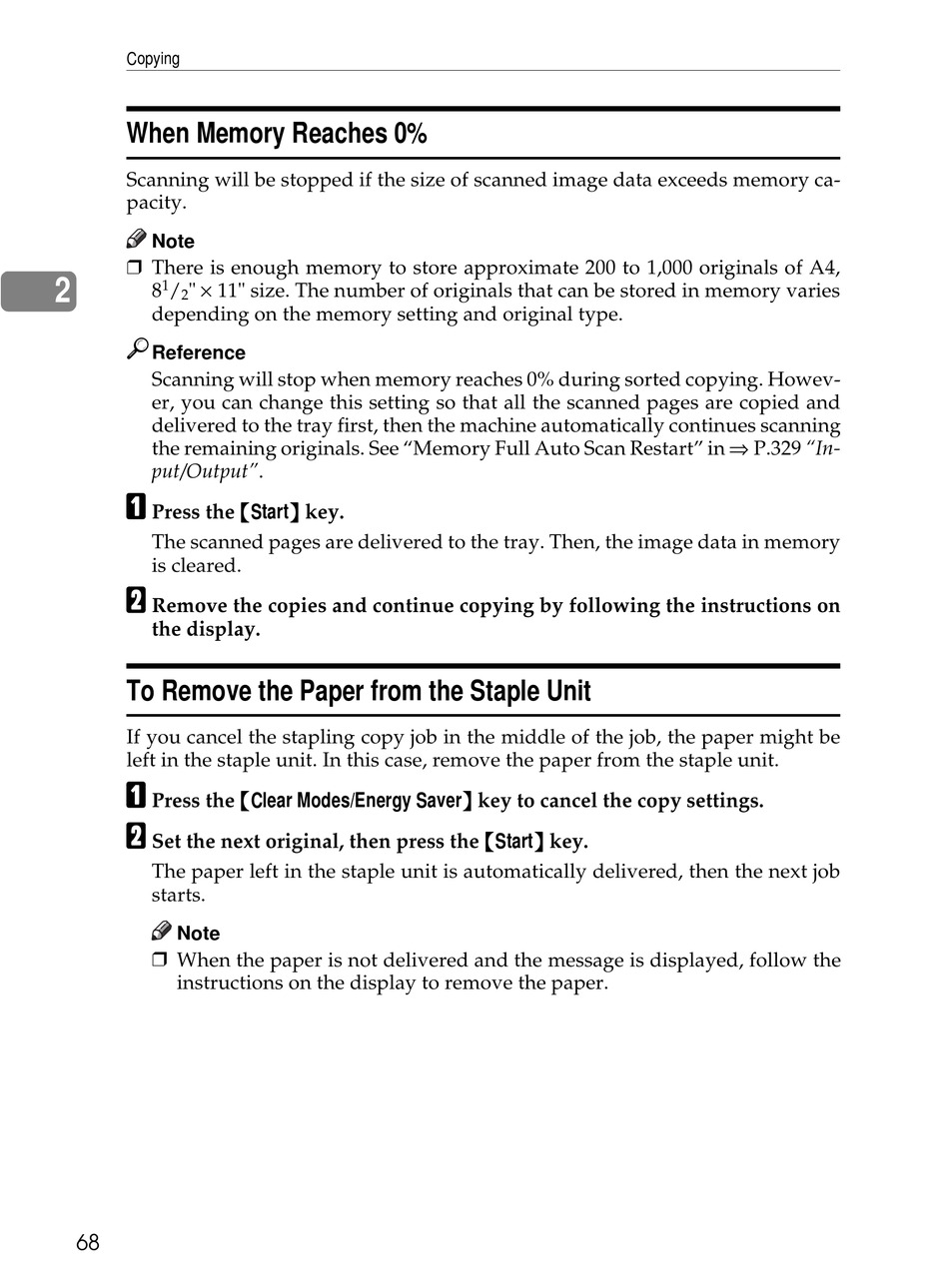

Copying
When Memory Reaches 0%
Scanning will be stopped if the size of scanned image data exceeds memory ca-
pacity.
Note
There is enough memory to store approximate 200 to 1,000 originals of A4,
2
1
8
/
"
11" size. The number of originals that can be stored in memory varies
2
depending on the memory setting and original type.
Reference
Scanning will stop when memory reaches 0% during sorted copying. Howev-
er, you can change this setting so that all the scanned pages are copied and
delivered to the tray first, then the machine automatically continues scanning
the remaining originals. See "Memory Full Auto Scan Restart" in
put/Output".
A
Press the {Start} key.
The scanned pages are delivered to the tray. Then, the image data in memory
is cleared.
B
Remove the copies and continue copying by following the instructions on
the display.
To Remove the Paper from the Staple Unit
If you cancel the stapling copy job in the middle of the job, the paper might be
left in the staple unit. In this case, remove the paper from the staple unit.
A
Press the {Clear Modes/Energy Saver} key to cancel the copy settings.
B
Set the next original, then press the {Start} key.
The paper left in the staple unit is automatically delivered, then the next job
starts.
Note
When the paper is not delivered and the message is displayed, follow the
instructions on the display to remove the paper.
68
P.329 "In-
