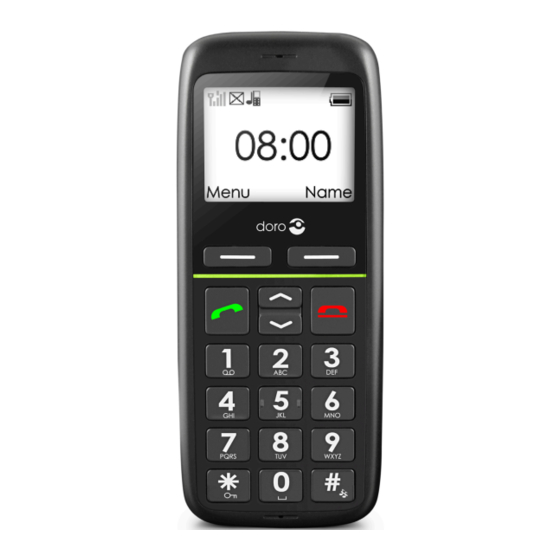

Doro PhoneEasy 341GSM Manual
  1. Manuals
  2. Brands
  3. Doro Manuals
  4. Cell Phone
  5. PhoneEasy 341gsm
  6. Manual

Doro PhoneEasy 341GSM Manual

Hide thumbs Also See for PhoneEasy 341GSM:
Table of Contents

Advertisement

Quick Links

Download this manual
PhoneEasy
341gsm

Advertisement

Table of Contents
loading

Related Manuals for Doro PhoneEasy 341GSM

Summary of Contents for Doro PhoneEasy 341GSM

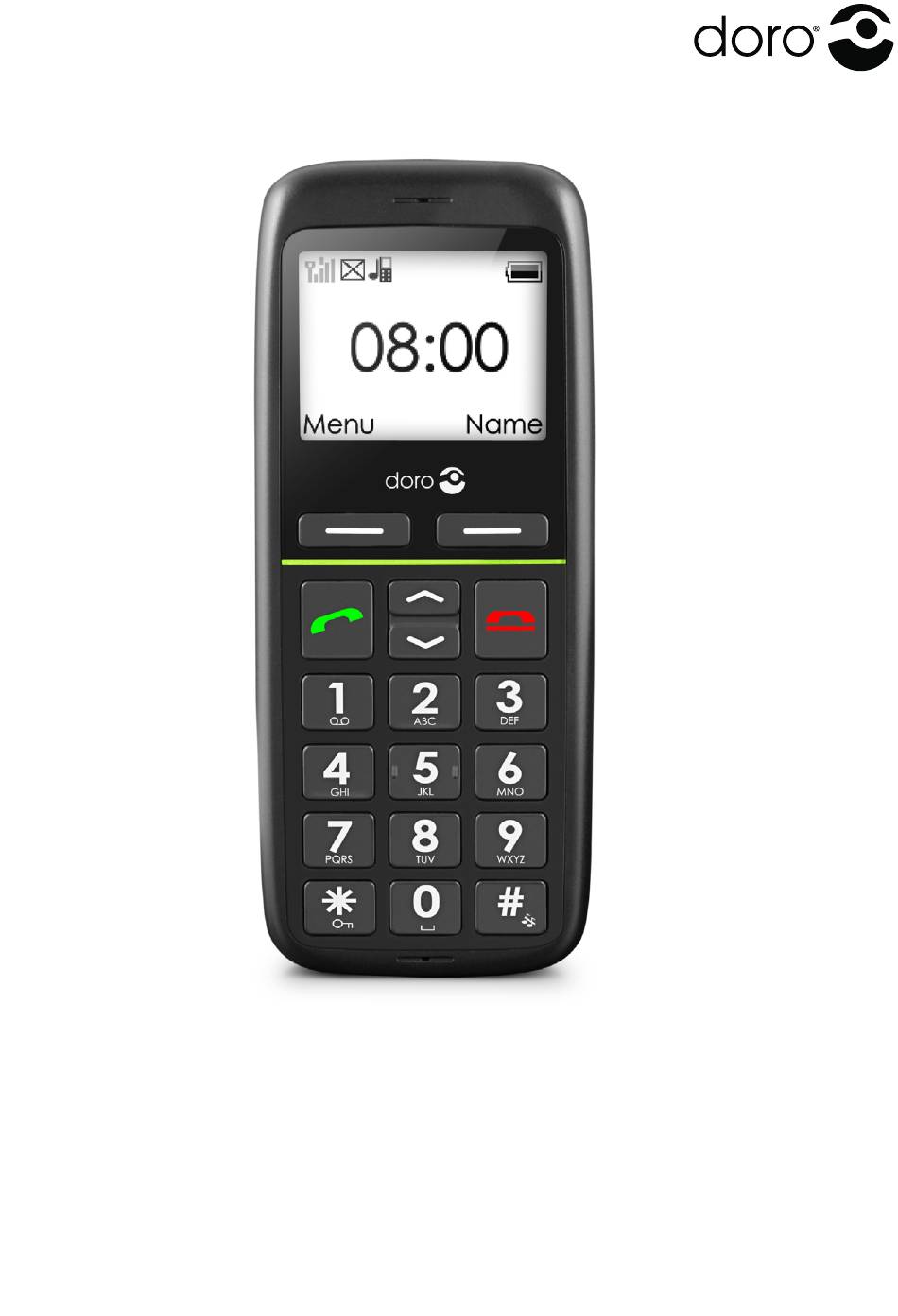

  • Page 1 PhoneEasy 341gsm...
  • Page 3 English Power on/off 11 . Right soft key Display 12 . Charging contacts (for use Left soft key with charging stand) Call key 13 . Emergency call key / Voice mail 14 . Battery cover Numeric keypad 15 . Headset socket / Key lock 16 .

  • Page 5: Table Of Contents

    English Contents Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Installing the SIM card and battery .
  • Page 6 English Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Time &...

  • Page 7: Installation

    English Installation Warning! Turn.off.the.phone.and.disconnect.the.charger.before.removing. the.battery.cover . Installing.the.SIM.card.and.battery The SIM card holder is located behind the battery . Remove the battery cover and the battery if it is already installed . Insert the SIM card by carefully sliding it into the holder . Make sure that the SIM card’s contacts are facing inwards and that the cut-off corner is pointing upwards .

  • Page 8: Charging

    English Charging Warning! Only.use.batteries,.charger.and.accessories.that.have.been. approved.for.use.with.this.particular.model ..Connecting. other.accessories.may.be.dangerous.and.may.invalidate.the. phone’s.type.approval.and.guarantee . When the battery is running low, is displayed and a warning signal is heard . To charge the battery, connect the mains adapter to the wall socket and to the charging socket y . If the phone is turned on when the charger is connected to the phone is displayed briefly in the display and...

  • Page 9: Operation

    English Operation Activating.the.phone Press and hold 1 on the top of the phone to turn it on/off . The following messages may be displayed: SIM card missing or SIM card damaged or not incorrectly inserted . valid . If the SIM card is valid but protected with a PIN code (Personal Identification Number), is displayed .

  • Page 10: Making A Call

    English Making.a.call Enter the phone number . Delete with Clear Press q to dial . Press to cancel dialling . Abort Press L to end the call . Note! When making international calls, press * twice for the international prefix "+". Always use ”+” before the country code (instead of 00 or similar) for best operation.

  • Page 11: Display.symbols

    English Display.symbols Signal.strength Headset.connected Ring.only Missed.call Vib.only.(vibration only� vibration.only� Keylock.on Vib.&.ring Battery.level Vib.->.ring Roaming.(in.other.network� Light.only. New.message (no ring�no vibration� no.ring�no.vibration� Alarm.active SIM.card.missing Charger.connected SIM.card.error Charger.disconnected Mute Headset.connected Unlocking.keypad Headset.disconnected New.SMS.message Handsfree.on SOS.calls.only Handsfree.off OK (confirmed) Warning Query Error Battery.level.low Charging.(animated� Calling Call.ended Incoming.call...

  • Page 12: Additional.functions

    English Additional.functions Call.options During a call the soft keys give access to additional functions: Options.(left.soft.key� A menu with the following options is displayed: Hold.single.call Hold the current call End.single.call End the current call (same as L ) New.call Call another number (three-party call) Phonebook Search the phonebook Msg.centre...

  • Page 13: Call Waiting

    English Call.waiting An alert tone will be heard if there is an incoming call while talking . To put the current call on hold and answer the incoming call, press Options This service must be activated, see Settings/Call setup. Call.information During a call, the called or calling phone number and the elapsed call time is displayed .

  • Page 14: Phonebook

    English Phonebook The phonebook can store 100 entries with 3 phone numbers in each entry . Creating.a.phonebook.entry Press , scroll to and press Menu Select and press -New contact- Select and press Name Edit Enter a name for the contact, see Text input .
  • Page 15 English Call Press to call the contact . Send.SMS Press to write an SMS message, see messaging . Top.10.setting Press then to set the entry as one of the first 10 numbers in the phonebook . To delete a Top 10 entry, select the entry in the Top 10 list and press options, then Delete Delete...

  • Page 16: Key Lock

    English Key.lock Press and hold * to lock/unlock the keypad . Incoming calls can be answered by pressing q even if the keypad is locked . During the call, the keypad is unlocked . When the call is ended or rejected, the keypad is locked again . Settings for key lock options .

  • Page 17: Silent Mode

    English SOS.calls Warning! Mobile.phones.such.as.this.unit.use.radio.signals,.the. mobile.phone.network,.the.terrestrial.network.and.user- programmed.functions ..This.means.that.connection.cannot. be.guaranteed.in.all.circumstances ..Therefore,.you.should. never.rely.solely.on.a.mobile.phone.for.very.important.calls. such.as.medical.emergencies . When the phone is turned on, the right soft key shows before the SIM card is activated or if the phone lock is on . Press and then press to automatically call 911 .

  • Page 18: Emergency Call Key

    English Emergency.Call.key To make an emergency call, press and hold the Emergency Call key on the back of the phone for 3 seconds, or press it two times within 1 second . The phone will send an emergency SMS text message to all numbers in the Emergency numbers list .

  • Page 19: Text Input

    English Text.input Text is entered by pressing the numerical keys repeatedly to select characters . When writing SMS messages in some languages you can use the Smart ABC (eZiType™) input method which uses a dictionary to suggest words . See Settings on how to change input method .

  • Page 20: Sms.messaging

    English SMS.messaging Creating.and.sending.messages Press , scroll to and press Menu Select and press Write message Type your message (see Text input) then press Done Select one of the Send.options below and press to confirm. Save.and.send Send the message and save it in the Outbox Send.only Send the message without saving Send.to.many...
  • Page 21 English Incoming.messages.(Inbox� Press , scroll to and press Menu Select and press Inbox Select a message from the list and press . Use the Read arrow keys to scroll the message up/down . Press Options Send.(Outbox� Select one of the Send.options and press to confirm, (see Creating and sending SMS) .
  • Page 22 English Use.number Displays all phone numbers contained in the message as well as the number of the sender . Use the arrow keys to select one of the displayed numbers . Press Options Select one of the following options and press Call Call the selected number Save...

  • Page 23: Settings

    English Settings Note! The settings described in this chapter are carried out in standby mode. Time.&.date Setting.the.time.and.date Press , scroll to and press Menu Select and press Time & date Select and press Set time Enter the time (HH:MM), then press Select and press Set date...

  • Page 24: User Setup

    English User.setup Changing.the.language The default language for the phone menus, messages etc . is determined by the SIM card . You can change this to any other language supported by the phone . Press , scroll to and press Menu Select and press User setup...

  • Page 25: User Profile (Rings & Tones)

    English User profile (rings & tones) The phone has 3 available user profiles. Each profile can have different settings for ring signals, ring volume, etc . is a fixed profile with SMS and ring signals disabled, while Silent vibration and key tone settings are unchanged . Press and hold # to activate/deactivate Silent Selecting a user profile...
  • Page 26 English Alert.type.(ring�vibrate� Incoming calls can be signalled by a ring tone and/or vibration, or by light only . Press , scroll to and press Menu Select and press User profiles Select a user profile and press Options Select and press Customise Select and press...

  • Page 27: Blocking Functions

    English Blocking.functions You can disable some functions to simplify use of the phone . Press , scroll to and press Menu Select and press Block function Select each function you want to disable and press Press to confirm. Done Emergency Settings for the Emergency Call key function .

  • Page 28: Voice Mail

    English Message The SMS text message to be sent when the Emergency Call key is pressed . Enter/edit text, then press to save . Alarm.information Please read this important safety information before enabling the Emergency Call function: Be careful about including numbers with automatic answering in the call list, as the alarm sequence stops once the call is answered.

  • Page 29: Speed Dial

    English Speed.dial The numerical keys 0 and 2 – 9 can be used for speed dialling . Adding.speed.dial.numbers Press , scroll to and press Menu Select and press Speed dial Select 0 and press Select an entry from the phonebook and press Repeat to add speed dial entries for keys 2 –...
  • Page 30 English Call.divert Set up which calls should be diverted . Select a condition and press , then select Activate (see Call waiting above) for each . Deactivate Query status Div ..voice.calls Diverts all voice calls . Diverts incoming calls if the phone is turned off or turned off or Div ..unreach out of range .

  • Page 31: Sms Settings

    English SMS.settings Press , scroll to and press Menu Select and press for the following settings: SMS settings Predictive.text Press Select to enable/disable it, and press Select a dictionary (language) to enable Smart ABC/ eZiType™, see Text input, and press Profile set This number is needed to use the SMS function .

  • Page 32: Network Setup

    English Network.setup Press , scroll to and press Menu Select and press Network setup Select one of the following options and press to confirm. Automatic Network is selected automatically . A list of available network operators is displayed Manual (after a short delay) . Select the desired operator and press OK .

  • Page 33: Security Settings

    English Security.settings Press , scroll to and press Menu Select and press Security SIM.lock The SIM card is protected with a PIN code (Personal Identification Number) . The phone can be set to ask for the PIN code on startup . Select and press to enable/disable SIM card lock .
  • Page 34 English Alarms Press , scroll to and press Menu Select and press Alarms Select one of the alarms – , then press Alarm 1 Alarm 5 Edit To disable an alarm select , to enable it select , then press Enter the alarm time using the keypad, then press For a single occurrence, select and press...

  • Page 35: Task Reminders

    English Task.reminders Press , scroll to and press Menu Select and press Tasks To add a new task, press Enter a date for the task, then press Enter a time for the task, then press Press , enter a description for the task (see Text input), Edit...
  • Page 36 English Troubleshooting Phone.cannot.be.switched.on Battery.charge.low Connect the power adapter and charge the battery for 12 hours . Battery.incorrectly.installed Check the installation of the battery . Failure.to.charge.the.battery Battery.or.charger.damaged Check the battery and charger . Battery.recharged.in.temperatures.. Improve the charging environment . <.0°C.or.>.40°C Charger.incorrectly.connected.to. Check the charger connections .
  • Page 37 English SIM.card.error SIM.card.damaged Check the condition of the SIM card . If it is damaged, contact the network operator . SIM.card.incorrectly.installed Check the installation of the SIM card . Remove the card and reinstall it . SIM.card.dirty.or.damp Wipe the contact surfaces of the SIM card with a clean cloth .

  • Page 38: Safety.instructions

    English Safety.Instructions Warning! The.unit.and.the.accessories.can.contain.small.parts ..Keep. all.of.the.equipment.out.of.the.reach.of.small.children . Operating.environment Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is prohibited or can cause interference or hazards . Only use the unit in its normal user position .
  • Page 39 English Areas.with.explosion.risk Always turn off the unit when you are in an area where there is a risk of explosion . Follow all signs and instructions . There is a risk of explosion in places that include areas where you are normally requested to turn off your car engine . In these areas, sparks can cause explosion or fire which can lead to personal injury or even death.
  • Page 40 English Driving.safely Warning! Use.of.this.unit.alone.or.with.headphones.(even.if.used.only. in.one.ear�.while.driving.a.motor.vehicle.or.riding.a.bicycle.is. dangerous.and.is.illegal.in.some.areas,.and.the.user.should. not.engage.in.such.conduct ..Driving.while.operating.a.mobile. phone.is.distracting.and.could.cause.serious.injury.or.death . If you decide to use this unit while driving or riding a bicycle, keep in mind the following guidelines: • Give.full.attention.to.driving.and.to.the.road .. Using a mobile device while driving may be distracting. If you find it disruptive or distracting while operating any type of vehicle, riding a bicycle, or performing any activity that requires your full attention, pull off the road and park before making or answering a call if driving conditions require .
  • Page 41 English • Let.the.person.you.are.speaking.with.know.you.are.driving .. If necessary, suspend the call in heavy traffic or hazardous weather conditions. Driving in rain, sleet, snow, ice, fog, and even heavy traffic can be hazardous. • Do.not.take.notes,.look.up.phone.numbers,.or.perform.any.other.activities.that. require.your.attention.while.driving ... Jotting down a to-do list or flipping through your address book takes attention away from your primary responsibility, driving safely .
  • Page 42 English *In the United States and Canada, the SAR limit for mobile phones used by the public is 1 .6 watts/kilogram (W/kg) averaged over one gram of tissue . The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements .
  • Page 43 Doro AB and its affiliates, licensees and retailers assume no responsibility for any damage or loss resulting from the use of this guide. Doro AB and its affiliates, licensees and retailers assume no responsibility for any loss or claims by third parties that may arise through the use of this software.

  • Page 44: Care.and.maintenance

    English Care.and.Maintenance Your unit is a technically advanced product and should be treated with the greatest care . Negligence may void the warranty . • Protect the unit from moisture . Rain/snowfall, moisture and all types of liquid can contain substances that corrode the electronic circuits . If the unit gets wet, you should remove the battery and allow the unit to dry completely before you replace it .
  • Page 45 English • Battery usage by children should be supervised . • Avoid dropping the phone or battery . If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection .

  • Page 46: Warranty.and.technical.data

    . Batteries are consumables and are not included in any guarantee . This guarantee does not apply if batteries other than DORO original batteries are used . Support For assistance, please contact:...
  • Page 47 English...
  • Page 48 English (US) Version 1.0...
