Summary of Contents for Doro PhoneEasy 345gsm

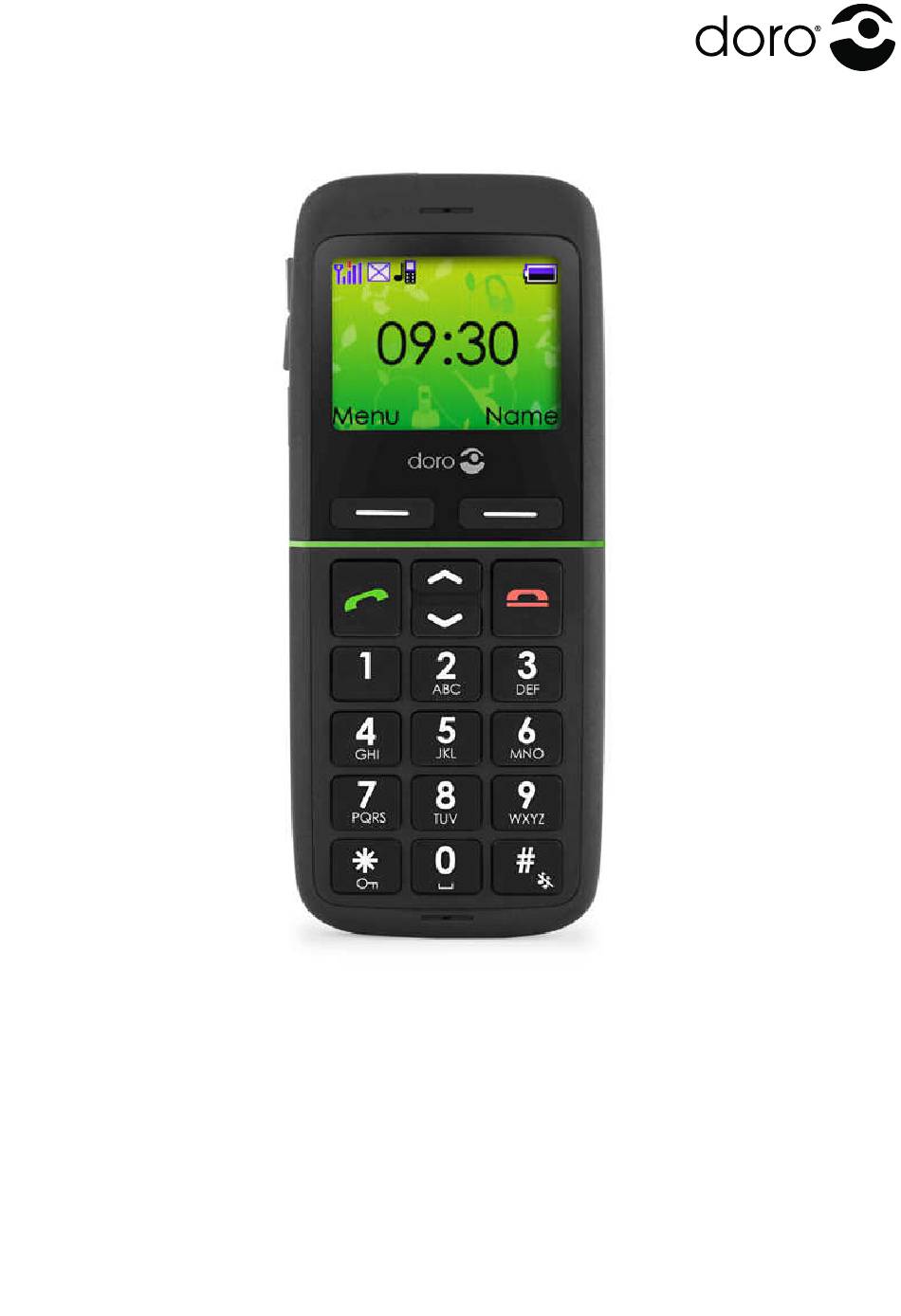

  • Page 1 Now available from www.M2Cshop.com PhoneEasy 345gsm...
  • Page 3 English Side key (volume) Charging contacts (for use Torch key with charging stand) Display Emergency call key Left soft key Battery cover Headset socket Call key Numeric keypad Charging socket / Key lock Power on/off / Change profile Torch End call Loudspeaker Arrow keys Microphone...

  • Page 4: Table Of Contents

    English Contents Installation ........3 Installing the SIM card and battery .
  • Page 5 English Settings ........17 Time and date .

  • Page 6: Installation

    English Installation Warning! Turn off the phone and disconnect the charger before removing the battery cover. Installing the SIM card and battery The SIM card holder is located behind the battery. Remove the battery cover and the battery if it is already installed.

  • Page 7: Charging

    English Charging Warning! Only use batteries, charger and accessories that have been approved for use with this particular model. Connecting other accessories may be dangerous and may invalidate the phone’s type approval and guarantee. When the battery is running low, is displayed and a warning signal is heard.

  • Page 8: Operation

    English Operation Activating the phone Press and hold 1 on the top of the phone to turn it on/off. The following messages may be displayed: SIM card missing or SIM card damaged or not incorrectly inserted. valid. If the SIM card is valid but protected with a PIN code (Personal Identification Number), is displayed.

  • Page 9: Making A Call

    English Making a call Enter the phone number. Delete with Clear Press q to dial. Press to cancel dialling. Abort Press L to end the call. Note! When making international calls, press * twice for the international prefix "+". Always use ”+” before the country code (instead of 00 or similar) for best operation.

  • Page 10: Display Symbols

    English Display symbols Signal strength Missed call Ring only Keylock on Ring + vibration Bluetooth on Vibration only Bluetooth connected No ring/no vibration Battery level Roaming (in other network) New message Headset connected Alarm active SIM card missing Charger connected SIM card error Charger disconnected Mute...

  • Page 11: Additional Functions

    English Additional functions Call options During a call the soft keys give access to additional functions: Options (left soft key) A menu with the following options is displayed: Hold the current call Hold single call End the current call (same as L ) End single call Call another number (three-party call) New call...

  • Page 12: Call Waiting

    English Call waiting An alert tone will be heard if there is an incoming call while talking. To put the current call on hold and answer the incoming call, press Options This service must be activated, see Settings/Call setup. Call information During a call, the called or calling phone number and the elapsed call time is displayed.

  • Page 13: Phonebook

    English Phonebook The phonebook can store 100 entries with 3 phone numbers in each entry. Creating a phonebook entry Press , scroll to and press Menu Select and press New contact Select and press Name Edit Enter a name for the contact, see input.
  • Page 14 English Send SMS Press to write an SMS message, see messaging. Top 10 setting Press then to set the entry as one of the first 10 numbers in the phonebook. To delete a Top 10 entry, select the entry in the Top 10 list and press options, then Delete Delete Press...

  • Page 15: Key Lock

    English Key lock Press and hold * to lock/unlock the keypad. Incoming calls can be answered by pressing q even if the keypad is locked. During the call, the keypad is unlocked. When the call is ended or rejected, the keypad is locked again. for key lock options.

  • Page 16: Sos Calls

    English SOS calls When the phone is turned on, the right soft key shows before the SIM card is activated or if the phone lock is on. Press , then press to automatically call 112. Press to return to the activation screen. If you pressed by mistake, press immediately to abort.

  • Page 17: Text Input

    English Text input Text is entered by pressing the numerical keys repeatedly to select characters. When writing SMS messages in some languages you can use the Smart ABC (eZiType ) input method ™ which uses a dictionary to suggest words. See on how to Settings change input method.

  • Page 18: Sms Messaging

    English SMS messaging Creating and sending messages Press , scroll to and press Menu Select and press Write message Type your message (see input) then press Text Done Select one of the sending options below and press confirm. Send the message without saving Send only Send the message and save it in the Outbox Save and send...

  • Page 19: Incoming Messages (Inbox)

    English Incoming messages (Inbox) Press , scroll to and press Menu Select and press Inbox Select a message from the list and press . Use the Read arrow keys to scroll the message up/down. Press Options Reply Type your reply, then press .

  • Page 20: Settings

    English Settings Note! The settings described in this chapter are carried out in standby mode. Time and date Setting the time and date Press , scroll to and press Menu Select and press Time & date Select and press Set time Enter the time (HH:MM), then press Select and press...

  • Page 21: User Setup

    English User setup Changing the language The default language for the phone menus, messages etc. is determined by the SIM card. You can change this to any other language supported by the phone. Press , scroll to and press Menu Select and press User setup...
  • Page 22 English Torch settings (flash light) Press , scroll to and press Menu Select and press User setup Select and press Flash Light Select one of the following options and press Torch key enabled. Torch key disabled. Torch key enabled. 20 sec. Torch will turn off automatically after 20 seconds.

  • Page 23: User Profile (Rings & Tones)

    English User profile (rings & tones) The phone has 4 available user profiles. Each profile can have different settings for ring signals, ring volume, etc. Silent mode is a fixed profile with SMS and ring signals disabled, while vibration and key tone settings are unchanged. Press and hold # to activate/deactivate Silent mode.
  • Page 24 English Ring volume Press , scroll to and press Menu Select and press User profiles Select a user profile and press Options Select and press Customize Select and press Ring tone Scroll up/down to change the ring volume, then press Alert type (ring/vibrate) Incoming calls can be signalled by a ring tone and/or vibration, or by light only.

  • Page 25: Bluetooth Settings

    English Bluetooth settings ® You can connect wirelessly to other Bluetooth -compatible devices such as headsets. Press , scroll to and press Menu Select and press for the following settings: Bluetooth Function on/off Select and press to enable/disable Bluetooth. Visibility Select to make your phone visible/invisible to other devices.

  • Page 26: Emergency

    English Audio path Select one of the options and press Incoming calls are answered with the phone. Phone Incoming calls are forwarded to Bluetooth device. Forward BT Blocking functions You can disable some functions to simplify use of the phone. Press , scroll to and press...

  • Page 27: Voice Mail

    English Message The SMS text message to be sent when the Emergency Call key is pressed. Enter/edit text, then press to save. Alarm information Please read this important safety information before enabling the Emergency Call function: Be careful about including numbers with automatic answering in the call list, as the alarm sequence stops once the call is answered.

  • Page 28: Speed Dial

    English Speed dial The numerical keys 0 and 2 – 9 can be used for speed dialling. Adding speed dial numbers Press , scroll to and press Menu Select and press Speed dial Select 0 and press Select an entry from the phonebook and press Repeat to add speed dial entries for keys 2 –...
  • Page 29 English Call divert Set up which calls should be diverted. Select a condition and press , then select Activate (see above) for each. Call waiting Deactivate Query status Diverts all voice calls. Div. voice calls Diverts incoming calls if the phone is turned off or Div.

  • Page 30: Sms Settings

    English SMS settings Press , scroll to and press Menu Select and press for the following settings: SMS settings Spelling support Press to enable Smart ABC/eZiType™, see Text input. Select a dictionary (language) and press On/Off enable/disable it. Press to confirm. Done Profile set This number is needed to use the SMS function.

  • Page 31: Network Setup

    English Network setup Press , scroll to and press Menu Select and press Network setup Select one of the following options and press to confirm. Network is selected automatically. Automatic A list of available network operators is displayed (after a Manual short delay).
  • Page 32 English Phone lock Select and press to enable/disable the Phone lock. Note! You need to input the current Phone code to change this setting. The default Phone code is 1234. Keypad lock Select one of the following options and press Select the time delay for automatic keypad locking Auto key lock and press...

  • Page 33: Fm Radio

    English FM radio The FM radio has a frequency range from 87.5 to 108.0 MHz and 9 preset channels. Note! The FM Radio and its settings are only available when a headset is connected. The headset also works as a radio antenna. Turning the radio on Connect the headset to the headset socket Press...
  • Page 34 English Setting channels manually Press , scroll to and press Menu Select from the menu at the right edge of the display using the arrow keys. Press to start automatic searching. When a station has been found, select and press show the options menu.

  • Page 35: Alarms

    English Alarms Press , scroll to and press Menu Select and press Alarms Select one of the alarms – , then press Alarm 1 Alarm 5 Edit To disable an alarm select , to enable it select , then press Enter the alarm time using the keypad, then press For a single occurence, select and press...

  • Page 36: Calculator

    English Calculator The Calculator can perform basic math operations. Press , scroll to and press Menu Enter the first number. Use # to enter decimal points. Use the arrow keys to select an operation (+ - * /) and press Enter the next number and press Repeat steps 2–4 as necessary.

  • Page 37: Safety Instructions

    English Safety instructions Warning! The unit and the accessories can contain small parts. Keep all of the equipment out of the reach of small children. Operating environment Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is prohibited or can cause interference or hazards.

  • Page 38: Pacemakers

    English Pacemakers The Health Industry Manufacturers Association recommends that a minimum separation of 15 cm be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. Persons with pacemakers: • Should always keep the phone more than 15 cm from their pacemaker when the phone is turned on •...

  • Page 39: Emergency Calls

    This device meets applicable international safety requirements for exposure to radio waves. Doro PhoneEasy 345gsm measures 0.692 W/kg (GSM 900MHz) / 0.202 W/kg (DCS 1800MHz) measured over 10 g tissue. The maximum limit according to WHO is 2.0 W/kg measured over 10 g tissue.

  • Page 40: Troubleshooting

    English Troubleshooting Phone cannot be switched on Connect the power adapter and Battery charge low charge the battery for 12 hours. Check the installation of the Battery incorrectly installed battery. Failure to charge the battery Check the battery and charger. Battery or charger damaged Improve the charging environment.
  • Page 41 English SIM card error Check the condition of the SIM SIM card damaged card. If it is damaged, contact the network operator. Check the installation of the SIM SIM card incorrectly installed card. Remove the card and reinstall Wipe the contact surfaces of the SIM card dirty or damp SIM card with a clean cloth.

  • Page 42: Care And Maintenance

    English Care and maintenance Your unit is a technically advanced product and should be treated with the greatest care. Negligence may void the warranty. • Protect the unit from moisture. Rain/snowfall, moisture and all types of liquid can contain substances that corrode the electronic circuits. If the unit gets wet, you should remove the battery and allow the unit to dry completely before you replace it.

  • Page 43: Warranty And Technical Data

    fluctuations. As a matter of precaution, we recommend disconnecting the charger during a thunderstorm. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if batteries other than DORO original batteries are used. Specifications...
