3M™ Drive-Thru Systems

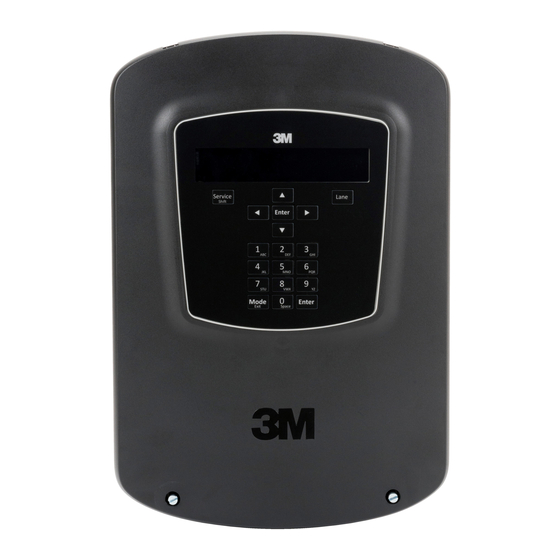

3M™ Drive-Thru Basestation G5
Upgrading from 3M™ Wireless Communication System, Model XT-1 Basestation
to 3M™ Drive-Thru Basestation G5
Overview
This document describes and illustrates the steps involved to successfully replace a 3M™ Wireless Communication
System, Model XT-1 basestation with a 3M™ Drive-Thru Basestation G5, in sites using a single lane drive-thru
operation. For the remainder of the document:
• 3M™ Wireless Communication System, Model XT-1 basestation will be referred to as XT-1 Basestation, and
• 3M™ Drive-Thru Basestation G5 referred to as G5 Basestation.
Pre-Requisites
1.
Interview the Store Manager and verify they are currently NOT experiencing any issues with their 3M Drive-Thru
equipment. If they are, these issues need to be resolved before conducting the Basestation upgrade.
2. Use the Pre-Installation Checklist to capture ALL information related to Store Operation and Greeter functionality
by:
• Checking and writing down the current settings from the XT-1 Basestation.
• Inspecting the XT-1 basestation for all connected peripherals (Timers, Greeters, External or Internal Vehicle
Detectors, Pre-Approach Loops, etc.).
• Interviewing the Store Manager for any desired changes in operation (such as OT Modes, Range, etc).
3. Verify the cable to the outside Order Post is in good condition.
4. Inspect the Order Post to verify the speaker and microphone are properly positioned in the order post and that
the 3M™ Acoustic Kit has been properly applied inside the order post.
Important Notes
1.
The G5 Basestation allows for ONLY ONE internal Vehicle Detector Board per Lane (for the Order Point Loop).
If the current XT-1 Basestation has more than one Internal Vehicle Detector Board, ALL but one (the Vehicle
Detector Board connected to the Order Point) MUST be replaced with External Detectors.
2. The Greeter functionality is built into the G5 Basestation.
3. All G5 Basestation configurations will have to be manually entered either via the Basestation's Front Panel (Key-
pad and LCD Screen) or the Basestation's Web Server. Any Configuration File you may have exported from the
XT-1 Basestation CANNOT be imported/loaded onto the G5 Basestation.
Technical Bulletin #161 Release B
Technical Bulletin #161
Release B, January 2017
1

Advertisement

loading

Related Manuals for 3M Drive-Thru Basestation G5

Summary of Contents for 3M Drive-Thru Basestation G5

  • Page 1 Overview This document describes and illustrates the steps involved to successfully replace a 3M™ Wireless Communication System, Model XT-1 basestation with a 3M™ Drive-Thru Basestation G5, in sites using a single lane drive-thru operation. For the remainder of the document: •...
  • Page 2 3M Graphics Warranties 3M™ Drive-Thru Systems Process It is recommended you follow the steps outlined below to successfully upgrade from the XT-1 Basestation to the G5 Basestation. Disconnect and remove the XT-1 Basestation from the wall. 2. Mount the G5 Basestation to the wall.
  • Page 3 2. Make sure you label each wire so you know what terminal they connect to. For example: MEN SKR +, or MEN SKR -, or GND or MIC+ or MIC- etc. This should not be required if you have followed 3M’s guidelines on properly terminating color coded cables to terminals on the XT-1 Basestation.
  • Page 4 Basestation, you may have to pull new cable. If you are short by a few inches, you may splice in sufficient length of wire from an another spool of 3M Cable. Make sure that the point where you connect the two wires (or splice) is properly insulated with Electrical Insulation Tape and/or securely held with wire nuts.
  • Page 5 If the current wires do not extend out to the terminals on the G5 Basestation, you may splice in sufficient length of wire from an another spool of 3M Cable. Make sure the point where you connect the two wires (or splice) is properly insulated with Electrical Insulation Tape and/or securely held with wire nuts.

  • Page 6: Dip Switch Settings

    3M Graphics Warranties 3M™ Drive-Thru Systems Install Vehicle Detector Board and Any External Antennas Install Vehicle Detector Boards The G5 Basestation can accommodate up to TWO vehicle detector boards and these MUST be connected to the Order Point induction loops. Follow the procedure below to install them into the G5 basestation.
  • Page 7 3M™ Drive-Thru Systems Install External Antenna(s) If the store currently uses an External Antenna (either Omni-Directional or Patch Antenna), it is assumed that the location of the external antenna is not going to change. Follow the steps below to re-connect the existing external antenna.
  • Page 8 3M Graphics Warranties 3M™ Drive-Thru Systems Timer Greet Event The Timer Greet Event is extracted from the XT-1 Basestation using any one of the following procedures. a. Using TALK and GND on the XT-1 Basestation b. Using a combination of XT-1 Basestation’s •...
  • Page 9 3M™ Drive-Thru Systems Wire Any External Button to Change Order Taking Modes, SPLIT/CROSS, or DAY/NIGHT Connect using the following GPIOs to re-wire external buttons: Change Order Taking Modes --- GPIO2 and GND0 Split/Cross --- GPIO1 and GND0 Day/Night --- GPIO3 and GND0 Wire any Alert Message Triggers The Greeter functionality is built into the G5 Basestation Model G5B1.
  • Page 10 3M Graphics Warranties 3M™ Drive-Thru Systems Power Up the G5 Basestation and Close the Basestation Cover You may now power up the system by plugging in the Power Supply’s barrel connector to the 12V input terminal on the G5 Basestation, as illustrated: To replace the basestation cover: - Verify there are no obstructions (tools, etc.)
  • Page 11 - Press Mode when finished. Connect to G5 Basestation Web Server (For Configuration) Please refer to 3M Technical Bulletin 160 - Setting up communication via 3M™ Drive-Thru Basestation G5 Web Server. Configuring G5 Basestation for Store Operation, Greeter, Alert and Reminder Functionality All G5 Basestation configurations will have to be manually entered.

  • Page 12: Technical Information

    3M’s option, repair or replacement of the 3M product or refund of the purchase price. This warranty does not cover: (1) the cost of shipping products to or from 3M for repair, (2) repair or replacement of existing cable or wiring, (3) product failure caused by misuse, abuse, improper installation, or unapproved modifications, or (4) intercom products that are installed or serviced by a non -3M authorized party.
