3M™ Wireless Communication System Model XT-1
Headset Service Procedures – Using assemblies
Technical Bulletin - #140
The document below
Lists the 3M™ Wireless Communication System Model XT-1 headset assemblies available for servicing (with 3M OEM SKUs)
Describes the standard procedure for conducting break-fix and maintenance tasks on the 3M™ Wireless Communication
System Model XT-1 headset using readily available assemblies from 3M
Only 3M OEM parts (SKU's listed below) should be used for servicing. These procedures should be conducted in a repair center
facility.
.

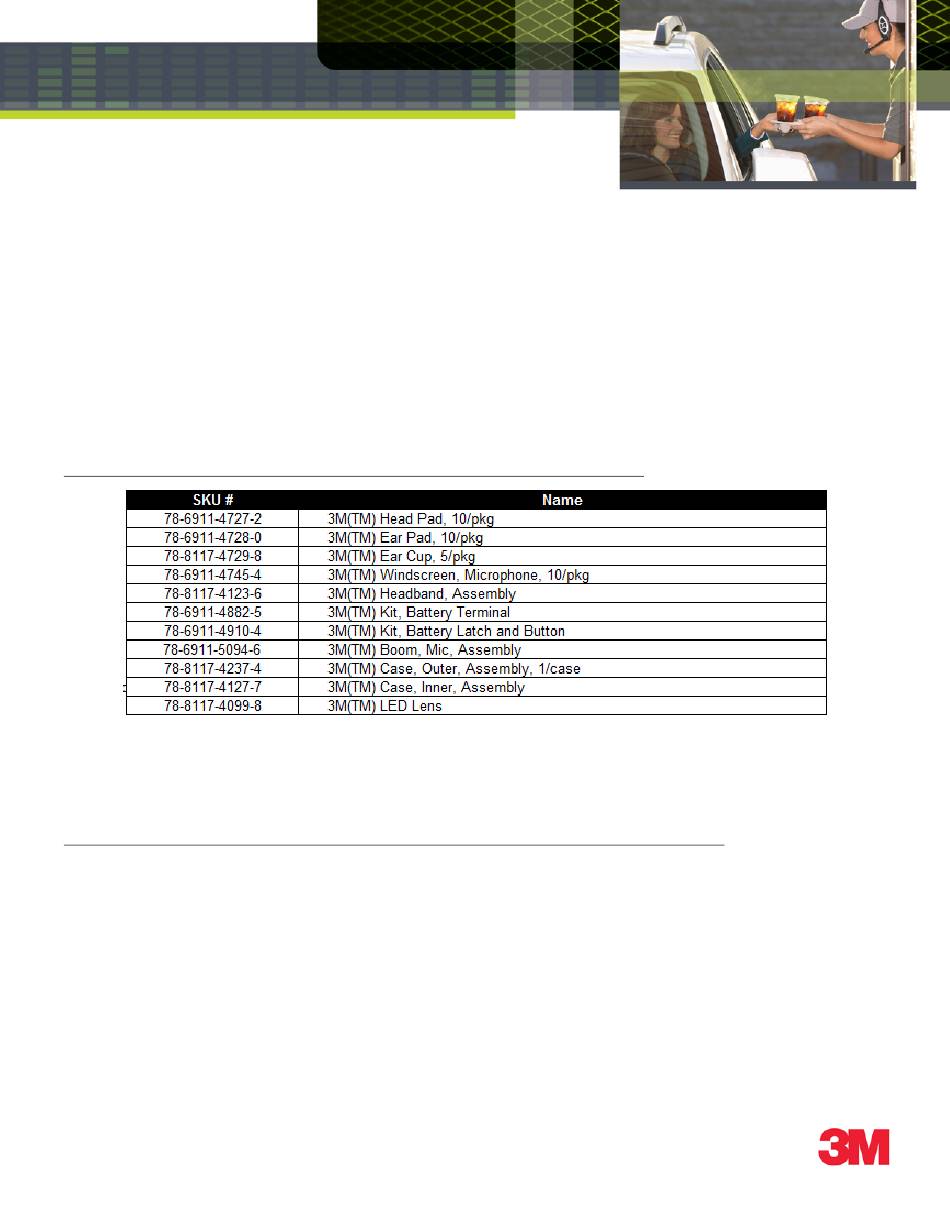

3M™ Wireless Communication System Model XT-1 Headset Service Parts – Assemblies
3M™ Wireless Communication System Model XT-1 Headset Standard Break-Fix Service Procedures
1. Replacing the Ear Cup and/or Ear Pad and/or Head Pad and/or Microphone Windscreen.
2. Replacing the Inner Case Assembly, Outer Case Assembly, and Boom Microphone Assembly.
3. Replacing Battery Latch Parts, Battery Latch Spring, or Battery Holder PWA.
4. Replacing the Headband Assembly.
5. Replacing the Indicator LED Lens and the Programming Station IR Lens.
