4.6 Reading the Indicators

4.6.1 Attendant-in-charge indication (Attendant control

unit)

Attendant-in-charge
indication

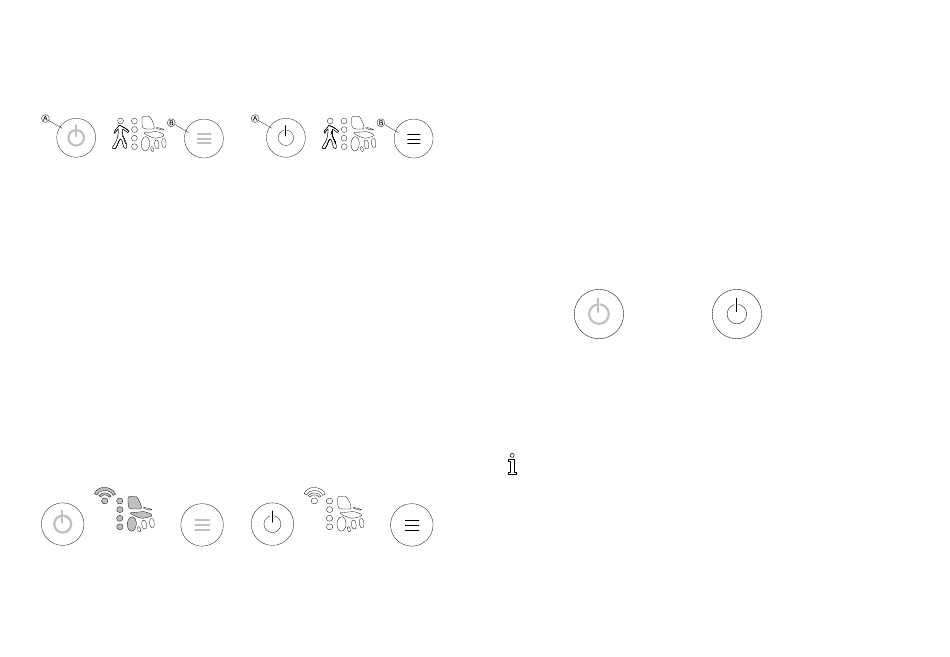

Fig. 4-3
The attendant-in-charge indication displays which remote
module, attendant control unit or primary remote module,
has control of the mobility device.
If the attendant control unit takes over control of the system,
or powers up with the attendant in charge, the power button
and mode button LEDs, drive function indicator, attendant
indicator and the selected function on the attendant control
unit switch on immediately, depending on the system status.
If the primary remote has control of the system, all LEDs are
switched off on the attendant control unit.
4.6.2 User-in-Charge Indication (Compact Remote Module)

User-in-charge indication

Fig. 4-5
1608055-C
Attendant-not-in-charge
indication
Fig. 4-4
User-not-in-charge
indication
Fig. 4-6
The user-in-charge indication displays which remote module,
compact remote module or primary remote module, has
control of the mobility device.
If the compact remote module takes over control of the
system, or powers up with the compact remote module in
charge, the power button LEDs, drive function indicator,
connectivity indicator and the selected function on the
compact remote module on the compact remote module
switch on immediately. If the primary remote module has
control of the system, all LEDs switch off on the compact
remote module.

4.6.3 Restricted user indication (Attendant control unit)

The secondary remote can not become the remote-in-charge,
if a restriction has been set. When a restricted user requests
control, the request is denied. The status LED lights up
green, then dims and finally switches off again.
For restricting a remote, contact your Invacare
provider.

4.6.4 Sleep indication

When transitioning into sleep mode, all lit LEDs start
dimming for a period of two seconds until LEDs are
completely switched off. All indicators remain switched off
when the system is in sleep mode.
