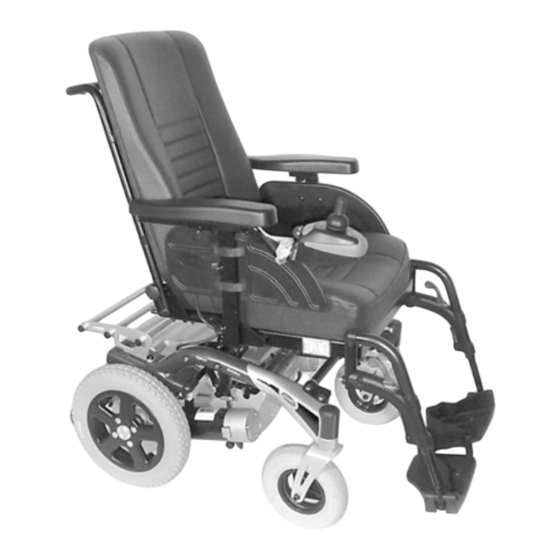

Invacare® Dragon
Power wheelchair
User manual

Advertisement

Table of Contents
loading

Related Manuals for Invacare Dragon

Summary of Contents for Invacare Dragon

  • Page 1 Yes, you can. ® Invacare® Dragon Power wheelchair User manual...
  • Page 3 How can you get in touch with Invacare®? If you have any questions or need support, please contact your authorised Invacare® Dealer, who has the necessary know-how and equipment plus the special knowledge concerning your Invacare® product, and can offer you all-round satisfactory service. Should you wish to contact Invacare® directly, you can reach us in Europe at the following addresses and phone numbers.
  • Page 4 +44 (0)1656 77 62 20 Pencoed uk@invacare.com Bridgend CF35 5AQ WWW: www.invacare.co.uk United Kingdom Invacare Mecc San s.r.l. +39 0445 38 00 59 Via dei Pini, 62 Fax: +39 0445 38 00 34 I - 36016 Thiene (VI) italia@invacare.com ITALIA WWW: www.invacare.it...
  • Page 5 +46 (0)8 761 81 08 Fagerstagatan 9 sweden@invacare.com S-163 91 Spånga finland@invacare.com Sverige WWW: www.invacare.se Tillverkare: MÖLNDAL Invacare® Deutschland GmbH  : +46 (0)31 86 36 00 Kleiststraße 49 Fax: +46 (0)31 86 36 06 D-32457 Porta Westfalica ginvacare@invacare.com Deutschland LANDSKRONA ...

  • Page 6: Table Of Contents

    Table of Contents Chapter Page Introduction Important symbols in this manual ..................12 Important symbols found on the vehicle ................14 Type classification and permissible use................16 Indications..........................16 Usability............................17 Warranty ...........................18 Life expectancy........................18 Safety notes General safety notes .......................19 Safety information with regard to care and maintenance ...........22 Safety information on electromagnetic interference ............23 Safety information on driving and freewheel mode.............24 Safety information regarding changes and modifications to the mobility device....26...
  • Page 7 5.2.2 Safety information when ascending obstacles .............32 5.2.3 The correct way to overcome obstacles ...............33 Driving up and down gradients....................34 Parking and stationary......................34 Use on public roads ........................35 Pushing the wheelchair in freewheel mode Disengaging Motors ........................35 Remotes Adjusting the wheelchair to the user's seating posture Adjusting the armrests and the control panel..............38 8.1.1 Adapting the control panel to the length of the user’s arm ...........38...
  • Page 8 8.5.1.2 Adjusting the length ....................58 8.5.2 Vari-A legrests ......................59 8.5.2.1 Swivelling the legrest outward and/or removing............59 8.5.2.2 Setting the angle......................60 8.5.2.3 Setting the end stop of the legrest................63 8.5.2.4 Adjusting the length of the legrest ................67 8.5.2.5 Adjusting the depth of the calf plate ................68 8.5.2.6 Adjusting the height of the calf pad .................69 8.5.2.7...
  • Page 9 8.7.2 Adjusting the depth of the tray / removing the tray............91 8.7.3 Swinging the tray away to the side ................91 Electrical system Electronics protection system ....................92 9.1.1 The main fuse .......................93 Batteries ...........................94 9.2.1 Charging the batteries ....................94 9.2.1.1 General information on charging ................94 9.2.1.2 General instructions on charging................94 9.2.1.3...
  • Page 10 11.2.1 How the wheelchair is anchored in a vehicle for use as a vehicle seat .....118 11.2.2 How the user is secured within the wheelchair............119 11.3 Securing the wheelchair for transport without passengers ..........122 12 Refurbishment 13 Disposal 14 Technical specifications 15 Inspections Performed...

  • Page 11: Introduction

    If you find that the font size in the print version of the user manual is difficult to read, you can download it as a pdf from the Invacare website. This can then be scaled on screen to a font size that is more comfortable for you.

  • Page 12: Important Symbols In This Manual

    Some maintenance and settings can be performed by the user or his/hers attendants. Certain adjustments do however require technical training and may only be carried out by your Invacare® specialist dealer. Damages and errors caused by nonobservance of the user manual or as a result of incorrect maintenance are excluded from all guarantees.
  • Page 13 BURN Risk! This symbol warns of the risk of burns, for example, as a result of hot motor surfaces. • Follow the instructions in order to avoid injury or damage to the product. RISK OF CRUSHING! This symbol warns of a risk of crushing caused by being careless with heavy components.

  • Page 14: Important Symbols Found On The Vehicle

    Requirements: • This symbol identifies a list of various tools, components and items which you will need in order to carry out certain work. Please do not attempt to carry out the work if you do not have the listed tools available. READ WELL BEFORE OPERATION! This symbol advises you to read information carefully.
  • Page 15 This symbol indicates the “Push” position of the coupling lever. In this position the motor is disengaged and the motor brakes are not operational. The wheelchair can be pushed by an attendant and the wheels turn freely. • Please note that the control panel must be switched off. •...

  • Page 16: Type Classification And Permissible Use

    If the power wheelchair is fitted with a table, it is imperative that it is removed and safely stowed when transporting the wheelchair in a vehicle! Type classification and permissible use This vehicle was designed for persons whose ability to walk is impaired, but who are still in terms of their eyesight and physically and mentally able to operate an electric vehicle.

  • Page 17: Usability

    You should immediately stop using your power wheelchair if its usability is restricted due to: - brake failure • You should immediately contact an authorised Invacare® dealer if the usability of your power wheelchair is restricted due to: - the lighting system failing or being defective...

  • Page 18: Warranty

    - damage to the legrest hangers (e.g. missing or torn heel loops) - damage to the postural belt - damage to the joystick (joystick cannot be moved into the neutral position) - cables that are damaged, kinked, pinched or have come loose from the holder - the wheelchair drifting when braking - the wheelchair pulling to one side when moving - unusual sounds developing or occurring...

  • Page 19: Safety Notes

    Safety notes READ WELL BEFORE OPERATION! General safety notes Danger of injury if mobility device is used in any other way than the purpose described in this manual! • Only ever use the mobility device in accordance with the instructions in this User's Manual (see chapter "Type classification and permissible use"...
  • Page 20 Danger of injury if the mobility device is switched off while driving, for example by pressing the On/Off Button or disconnecting a cable, due to it coming to an abrupt, sharp stop! • If you have to brake in an emergency, simply release the joystick which will bring you to a halt. (refer to the joystick operating manual for more information).
  • Page 21 Danger of fire or breaking down due to electric devices being connected! • Do not connect any electric devices to your mobility device that are not expressly certified by Invacare® for this purpose. Have all electrical installations done by your authorised Invacare® Dealer.

  • Page 22: Safety Information With Regard To Care And Maintenance

    Safety information with regard to care and maintenance Danger of accident and loss of guarantee if maintenance is insufficient! • For reasons of safety and in order to avoid accidents which result from unnoticed wear, it is important that this electric mobility product undergoes an inspection once every year under normal operating conditions (see inspection plan contained in service instructions).

  • Page 23: Safety Information On Electromagnetic Interference

    Safety information on electromagnetic interference This electric vehicle was successfully tested in accordance with International standards as to its compliance with Electromagnetic Interference (EMI) regulations. However, electromagnetic fields, such as those generated by radio and television transmitters, and cellular phones can influence the functions of electric vehicles.

  • Page 24: Safety Information On Driving And Freewheel Mode

    Safety information on driving and freewheel mode Danger of injury if the wheelchair tips over! • Inclines and declines can only be travelled up to the maximum safe slope (see chapter "Technical specifications" from page 125). • Always return the backrest of your seat or the seat tilt to an upright position before ascending slopes.
  • Page 25 Danger of breaking down in adverse weather conditions, i.e. extreme cold, in an isolated area! • If you are a user with severely limited mobility, we advise that in the case of adverse weather conditions DO NOT attempt a journey without an accompanying attendant! Danger of injury if your foot slides off the footrest and gets caught underneath the wheelchair when it is in motion! •...

  • Page 26: Safety Information Regarding Changes And Modifications To The Mobility Device

    EEC / MPG (Medical Devices Act) and only applies to the complete product. The CE marking is invalidated if components or accessories are replaced or added that have not been approved for this product by Invacare. In this case, the company that adds or replaces the components or accessories is responsible for the conformity assessment/ CE marking or for registering the wheelchair as a special design and for the relevant documentation.
  • Page 27 • Only use seating systems that have been approved by Invacare® for this power wheelchair. Electrical and electronic components which have not been approved by Invacare® for use with this mobility aid can cause fire hazards and lead to electromagnetic damage! •...

  • Page 28: Key Features

    Key features 1) Push handle 2) Fastening screw for adjusting the height of the armrest 3) Fastening screw for adjusting the angle of the backrest 4) Decoupling lever 5) Remote 6) Legrest release lever...

  • Page 29: Getting In And Out Of The Wheelchair

    Getting in and out of the wheelchair Important information for getting into and out of the wheelchair from the side! The armrest must be removed in order to get into or out of the wheelchair from the side. Remove the standard armrest in order to side transfer Removing the armrest: •...
  • Page 30 Getting into the wheelchair: • Position your wheelchair as close as possible to your seat. This might have to be done by an attendant. • Switch your wheelchair off. • Apply the manual wheel lock of your wheelchair (if existing). •...

  • Page 31: Driving

    Driving NOTE The maximum load capacity that is stated in the technical data only states that the system is designed for this mass in total. However, this does not mean that one can sit a person with this body weight in the wheelchair without restrictions. Attention must be paid to the body proportions, such as height, weight distribution, abdominal girth, leg and calf girth and seat depth.

  • Page 32: Taking Obstacles

    • The rear mirror (if installed) is adjusted so you can look behind at all times without having to bend forward or shift your seating position. Taking Obstacles 5.2.1 Maximum obstacle height You can find information about maximum obstacle heights in the chapter entitled "Technical specifications"...

  • Page 33: The Correct Way To Overcome Obstacles

    5.2.3 The correct way to overcome obstacles Ascending Right • Approach the obstacle or the kerb slowly, head-on and at a right angle. • Depending on the wheel drive type, stop in one of the following positions: - In the case of centrally driven wheelchairs: 5 - 10 cm before the obstacle. - For all other drives: approx.

  • Page 34: Driving Up And Down Gradients

    Driving up and down gradients For information concerning the maximum safe slope, please see chapter "Technical specifications" starting on page 125. WARNING: Danger of tipping over! • Only ever drive downhill at a maximum of 2/3 of the top speed. Avoid sudden changes of direction or abrupt braking when driving on slopes.

  • Page 35: Use On Public Roads

    If you wish to use your wheelchair on public roads and lighting is required by national legislation, then your wheelchair needs to be equipped with an appropriate lighting system. Please contact your Invacare ® dealer if you have any questions. Pushing the wheelchair in freewheel mode The motors of the wheelchair are equipped with automatic brakes, preventing that the wheelchair starts rolling out of control when the joystick box is switched off.

  • Page 36: Remotes

    NOTE: The motors may only be disengaged by an attendant, not by the user! This ensures that the motors are only disengaged if an attendant is available to secure the wheelchair and prevent unintended rolling. The lever for disengaging the motors is on the rear right side on the wheelchair chassis. Disengaging motors: •...

  • Page 37: Adjusting The Wheelchair To The User's Seating Posture

    Adjusting the wheelchair to the user's seating posture CAUTION: Damage to wheelchair and accident hazard! It is possible that collisions can occur between wheelchair components due to various combinations of adjustment options and their individual settings! • The wheelchair is fitted with an individual, multiply adjustable seating system including adjustable legrests, armrests, a headrest or other options.

  • Page 38: Adjusting The Armrests And The Control Panel

    Adjusting the armrests and the control panel 8.1.1 Adapting the control panel to the length of the user’s arm • Loosen the wing screw (1). • Set the remote to the desired length by adjusting forward or backward. • Re-tighten the screw.

  • Page 39: Setting The Height Of The Remote

    8.1.2 Setting the height of the remote • Loosen the wing screw (1). • Set the remote to the desired height. • Re-tighten the screw.

  • Page 40: Setting The Height Of The Armrests

    8.1.3 Setting the height of the armrests • Loosen the wing screw (1). • Set the armrest to the desired height. • Re-tighten wing screw.

  • Page 41: Adjusting The Width Of The Armrests

    8.1.4 Adjusting the width of the armrests The distance between the side sections can be adjusted by 5.5 cm on both sides (11 cm in total). Requirements: • Allen key 8 mm Where to find the adjustment screws The picture below shows the position of the screws (1) that enable adjustment of the width of the armrests.
  • Page 42 Doing the adjustment • Loosen the screw (1). • Set the armrest to the desired position. • Re-tighten the screw. • Check the firm fit of the armrest. • Repeat the procedure for the second armrest.

  • Page 43: Adjusting The Seat Angle / Seat Height

    Adjusting the seat angle / seat height 8.2.1 Manual adjustment using perforated plates There are three perforated plates underneath the seat for adjusting the seat angle and the seat height. These perforated plates in connection with the adjustable rear holding plates result in a multitude of different setting possibilities.
  • Page 44 • The picture on the right shows the position of the perforated plates (1) and the fastening screws on the holding plates (2) for adjusting seat height and seat angle. The picture on the right shows the front perforated plates. The approach is similar for the rear perforated plates.
  • Page 45 Seat height and angle can be adjusted additionally via the rear holding plates. • Loosen the rear fastening screw on one side (in bushing 1) so that the holding plate can be swivelled up or down. • Loosen the front fastening screw and remove (depending on the position the screw is either in bushing 2 or 3).
  • Page 46 The swivelling rear perforated plates have five positions. These are marked on the illustration on the right by the letters A to E. If the holding plates are in the low position (see above), all five positions can be used. In the high position only positions B, C, D and E are possible! In position A there is a collision between the holding plate and the seat frame.

  • Page 47: Electric Adjustment In The Front / Perforated Plate In The Rear

    Please consult the user manual for your remote for information about electrical adjustment. In addition to the electric actuator under the seat in the front, the Dragon with electric seat tilt also has two manual adjustment plates in the rear. When combined, the electric seat tilt in the front and the manual adjustment in the rear provide a wide range of possible settings.
  • Page 48 • Re-position the bolt and tighten to 40 Nm using the torque spanner. On the Dragon with purely manual seat height and tilt adjustment, the rear fixation plates can be adjusted to two different positions, high and low. The Dragon with electric adjustment...
  • Page 49 The adjustable perforated plates in the rear can be set to five different positions. These are shown in illustration at right, and are designated with the letters A to E. The following seat heights and seat tilt adjustment ranges are possible: Position of the Seat height at 0°...

  • Page 50: Adjusting The Backrest

    Adjusting the backrest 8.3.1 Adjusting the backrest electrically Please consult the user manual for your remote for information about electrical adjustment. 8.3.2 Set backrest using perforated plate The angle of the backrest has six positions, from -10° to +30°. • Unscrew the hand screws (1) on both sides.

  • Page 51: Adjusting The Backrest Using The Gas Pressure Spring

    8.3.3 Adjusting the backrest using the gas pressure spring The lever for adjusting the backrest is located on the opposite side from the Joystick Box under the armrest. Adjusting angle of the backrest • Pull lever (1) upward. • Adjust backrest angle by leaning forward or backward.

  • Page 52: Adjusting The Headrest

    This can cause the neck to be hyperextended during collisions! • A headrest must be installed! The headrest optionally supplied for this mobility device by Invacare® is perfectly suitable for use during transport. • The headrest must be adjusted to the user's ear height.

  • Page 53: Adjusting The Position Of The Headrest Or Neckrest

    8.4.1 Adjusting the position of the headrest or neckrest The adjustment of the position is the same for all headrests and neckrests. Pre-requisites: • Allen key 5 mm • Loosen the screws (1, 2) or the clamping lever (3). • Adjust the headrest or neckrest to the required position.

  • Page 54: Adjusting The Height Of The Headrest Or Neckrest

    8.4.2 Adjusting the height of the headrest or neckrest The adjustment of the height is the same for all headrests and neckrests. • Loosen the thumb screw (1). • Adjust the headrest or neckrest to the required height. • Retighten thumb screw.

  • Page 55: Adjusting The Cheek Supports

    8.4.3 Adjusting the cheek supports • Push the cheek supports inward or pull them out to the required position.

  • Page 56: Legrests

    Legrests 8.5.1 Standard legrests 8.5.1.1 Swivel the legrest outward and/or remove The small release lever is to be found in the upper part of the legrest (1). When the legrest is released it can be swivelled inward or outward to facilitate access and also be removed completely.
  • Page 57 • Push the release lever inward or outward. The legrest is released. • Swivel the legrest inward or outward. • To remove the legrest simply pull upward.

  • Page 58: Adjusting The Length

    8.5.1.2 Adjusting the length Pre-requisites: • 1x 5 mm hexagon socket spanner • Loosen the screw (1) using the Allen key, but do not remove completely. • Set the legrest to the desired length. • Re-tighten the screw.

  • Page 59: Vari-A Legrests

    8.5.2 Vari-A legrests 8.5.2.1 Swivelling the legrest outward and/or removing The small unlocking button is located on the upper section of the legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into wheelchair as well as being removed completely.

  • Page 60: Setting The Angle

    8.5.2.2 Setting the angle PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! •...
  • Page 61 • Hit the knob to release the locking mechanism. • Set the desired angle.
  • Page 62 • Turn the knob clockwise to tighten it.

  • Page 63: Setting The End Stop Of The Legrest

    8.5.2.3 Setting the end stop of the legrest Pre-requisites: • 1x 10 mm open-ended spanner The end position of the legrest is determined by means of a rubber stop (A). The rubber stop can be screwed in or out (A) or pushed up or down (B).
  • Page 64 • Loosen the locking knob (1) counter-clockwise at least one turn. • Hit the knob to release the locking mechanism.
  • Page 65 • Swivel the legrest upward in order to access the rubber stop. • Use the open-ended spanner to loosen the counternut (1).
  • Page 66 • Move the rubber stop to the desired position • Re-tighten the counternut • Move the legrest to the desired position. • Re-tighten the locking knob.

  • Page 67: Adjusting The Length Of The Legrest

    8.5.2.4 Adjusting the length of the legrest PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...

  • Page 68: Adjusting The Depth Of The Calf Plate

    8.5.2.5 Adjusting the depth of the calf plate The depth of the calf plate can be adjusted via the holding plate. The holding plate hole combinations allow 5 different depth settings. Pre-requisites: • 1x 10 mm open-ended spanner • Use the open-ended wrench to loosen the nut (1) and remove.

  • Page 69: Adjusting The Height Of The Calf Pad

    8.5.2.6 Adjusting the height of the calf pad Pre-requisites: • 1x 4 mm Allen key • Use the Allen key to loosen the screws (1). • Adjust to the desired position. • Re-tighten the screws.

  • Page 70: Unlocking And Swivelling The Calf Plate Backward When Alighting

    8.5.2.7 Unlocking and swivelling the calf plate backward when alighting • Press the calf plate straight down. • Unlock the legrest and swivel outward. The calf plate swivels backward on its own.

  • Page 71: Adjusting The Angle Adjustable Foot Plate

    • Lift leg over the heel strap and place on the ground. 8.5.2.8 Adjusting the angle adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen both set screws on the foot plate. •...

  • Page 72: Adjusting The Angle And Depth Adjustable Foot Plate

    8.5.2.9 Adjusting the angle and depth adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen the set screw on the foot plate (1). • Adjust the foot plate to the desired angle or depth.

  • Page 73: Electrically Height Adjustable Legrest 80° - 0° With Ergonomic Length Adjustment

    8.5.3 Electrically height adjustable legrest 80° - 0° with ergonomic length adjustment 8.5.3.1 Swivelling the legrest outward and/or removing The small unlocking button is located on the upper section of the legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into wheelchair as well as being removed completely.

  • Page 74: Setting The Angle

    8.5.3.2 Setting the angle PLEASE NOTE: Danger of crushing! • Do not reach inside the swivelling range of the legrest! PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! The electrically height-adjustable legrests are operated using the remote.

  • Page 75: Adjusting The Length Of The Legrest

    8.5.3.3 Adjusting the length of the legrest PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...

  • Page 76: Adjusting The Depth Of The Calf Plate

    8.5.3.4 Adjusting the depth of the calf plate The depth of the calf plate can be adjusted via the holding plate. The holding plate hole combinations allow 5 different depth settings. Pre-requisites: • 1x 10 mm open-ended spanner • Use the open-ended wrench to loosen the nut (1) and remove.

  • Page 77: Adjusting The Height Of The Calf Pad

    8.5.3.5 Adjusting the height of the calf pad Pre-requisites: • 1x 4 mm Allen key • Use the Allen key to loosen the screws (1). • Adjust to the desired position. • Re-tighten the screws.

  • Page 78: Unlocking And Swivelling The Calf Plate Backward When Alighting

    8.5.3.6 Unlocking and swivelling the calf plate backward when alighting • Press the calf plate straight down. • Unlock the legrest and swivel outward. The calf plate swivels backward on its own.

  • Page 79: Adjusting The Angle Adjustable Foot Plate

    • Lift leg over the heel strap and place on the ground. 8.5.3.7 Adjusting the angle adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen both set screws on the foot plate. •...

  • Page 80: Adjusting The Angle And Depth Adjustable Foot Plate

    8.5.3.8 Adjusting the angle and depth adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen the set screw on the foot plate (1). • Adjust the foot plate to the desired angle or depth.

  • Page 81: Manually Height-Adjustable Legrest

    8.5.4 Manually height-adjustable legrest 8.5.4.1 Swivelling the legrest outward and/or removing The unlocking knob is located on the top section of the legrests. When the legrest is unlocked, it can be swivelled to the inside or outside to facilitate getting in, or can be completely removed. •...

  • Page 82: Setting The Angle

    8.5.4.2 Setting the angle PLEASE NOTE: Danger of crushing! • Do not reach inside the swivelling range of the legrest! PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! •...

  • Page 83: Adjusting The Length Of The Legrest

    8.5.4.3 Adjusting the length of the legrest PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...

  • Page 84: Adjusting The Depth Of The Calf Plate

    8.5.4.4 Adjusting the depth of the calf plate The calf support has four depth settings. Pre-requisites: • 1x 4 mm Allen key • Swivel the calf support to the front. • Release bolt (1) with the Allen key and remove. •...

  • Page 85: Adjusting The Height Of The Calf Pad

    8.5.4.5 Adjusting the height of the calf pad • Loosen the hand screw (1). • Adjust to required position. • Retighten the wing nuts.

  • Page 86: Postural Belts

    Postural belts A postural belt is an option which can either be fixed to the wheelchair ex-works or can be retrofitted by your specialist dealer. If your wheelchair is fitted with a postural belt, your specialist dealer will have informed you about fitting and usage. The postural belt is used to help the wheelchair user keep an optimum sitting position.
  • Page 87 Belt with metal buckle, adjustable both sides Belt can be adjusted on both sides. This means that the buckle can be centrally positioned. Belt with Velcro fastening Adjustments are made using the Velcro fastening. For this reason no buckle is required on this belt.
  • Page 88 Harness with metal buckle, adjustable on both sides Harness can be adjusted on both sides. This ensures that the buckle is always centrally positioned.

  • Page 89: Adjusting The Postural Belt Correctly

    You can find more information about maintenance work on belts in the service manual, which is available from Invacare®. Adjusting and removing the tray CAUTION: Injury hazard or material...

  • Page 90: Laterally Adjusting The Tray

    8.7.1 Laterally adjusting the tray • Loosen the wing-screw (1). • Adjust the tray towards the left or right. • Re-tighten wing-screw.

  • Page 91: Adjusting The Depth Of The Tray / Removing The Tray

    8.7.2 Adjusting the depth of the tray / removing the tray • Loosen the wing-screw (1). • Adjust the table to the desired depth (or remove it entirely). • Re-tighten the screw. 8.7.3 Swinging the tray away to the side CAUTION! Risk of injury! When the tray is raised it does not lock in place in this position! •...

  • Page 92: Electrical System

    Electrical system Electronics protection system The vehicle drive electronics is fitted with an overload protection. If the drive is severely overloaded over a long period (e.g. during steep climbs) and, above all, at simultaneous high external temperatures, the electronic system can overheat. In this case, the vehicle performance is gradually reduced until it comes to a standstill.

  • Page 93: The Main Fuse

    NOTE A defective main fuse may be replaced only after checking the entire electric system. An Invacare® specialised dealer must perform the replacement. You can find information on the fuse type in chapter "Technical specifications" starting on page 125. The entire electric system of the wheelchair is protected by the main fuse against overloading.

  • Page 94: Batteries

    Batteries Power is supplied by two 12 V batteries. The batteries are maintenance-free and only need regular charging. In the following, you find information on how to charge, handle, transport, store, maintain, and use batteries. 9.2.1 Charging the batteries 9.2.1.1 General information on charging New batteries should always be fully charged once before their first use.

  • Page 95: How To Charge The Batteries

    10 °C. • Use only charging devices in Class 2. This class of chargers may be left unattended during charging. All charging devices which are supplied by Invacare® comply with these requirements. •...

  • Page 96: How To Disconnect The Batteries After Charging

    Risk of explosion and destruction of batteries if the wrong battery charger is used! • Only ever use the battery charger supplied with your vehicle, or a charger that has been approved by Invacare®. Risk of electric shock and damage to the battery charger if it gets wet! •...

  • Page 97: Storage And Maintenance

    9.2.2 Storage and Maintenance Follow the instructions listed below to ensure safe use and longevity of the batteries: • Always store the batteries fully charged. • Do not leave the batteries in a low state of charge for an extended length of time. Charge a discharged battery as soon as possible.
  • Page 98 The last 3 LED (two red and one orange) mean a remaining capacity of about 15 %. • Driving with blinking red LED’s means an extreme stress for the battery and should be avoided under normal circumstances. • When only one red LED is blinking, the Battery Safe feature is enabled. From this time, speed and acceleration is reduced drastically.

  • Page 99: Transporting Batteries

    • Under normal operation, once a month the battery should be discharged until all green and orange LED are off. This should be done within one day. A 16 hour charge afterwards is necessary as reconditioning. 9.2.4 Transporting batteries The batteries supplied with your electric vehicle are not hazardous goods. This classification is based on the German GGVS Hazardous Goods Road Transport Ordinances, and the IATA/DGR Hazardous Goods Rail Transport / Air Transport Ordinances.
  • Page 100 Only ever transport damaged batteries in an appropriate acid-resistant receptacle. • Wash all objects that have come into contact with acid with lots of water. Disposing of dead or damaged batteries correctly Dead or damaged batteries can be given back to your dealer or directly to Invacare®.

  • Page 101: Removing The Batteries

    9.2.5.3 Removing the batteries CAUTION: Risk of fire and burns if battery poles are bridged! • When replacing the batteries the battery poles MUST NOT come into contact with metal parts of the wheelchair causing bridging. • Be sure to replace the battery pole caps after the batteries have been replaced. Pre-requisites: •...
  • Page 102 • Pull the battery pole caps (1) upward and push back in order to reach the battery poles. • Use the open-ended spanner to loosen the battery pole clamps. • Remove the batteries to the rear.

  • Page 103: Care And Maintenance

    Maintenance encompasses different areas, such as everyday care and cleaning, inspection checks, repair tasks and refurbishment. NOTE: Have your vehicle checked once a year by an authorised Invacare® dealer in order to maintain it's driving safety and roadworthiness. 10.1...

  • Page 104: Inspection Checks

    Service Manual for this device, which can be obtained from Invacare®. That Manual, however, is intended to be used by trained and authorised service technicians, and describes tasks which are not intended to be performed by...
  • Page 105 Maintenance Jobs Seat and backrest padding: - Check for perfect condition. Side part and armrest: - Are all fastening elements installed? - Can armrests / side parts be removed and installed without too much physical effort? - Are armrests secured in their positions? Legrests: - Do legrests lock into place without any problem? (Only applies to detachable legrests)
  • Page 106 Maintenance Jobs Electronics / Electrical System: - Check all plug connections for condition and firm seat. - Have all batteries been fully charged before the daily operation? Before every trip - Are all holders, screws firmly fixed, tight and safe? - Are all electric bulbs of the lighting system (if applicable) in working Before each trip order?

  • Page 107: Repair Instructions

    "Technical specifications" on page 125, or consult the Service Manual, available from Invacare® (in this connection please see the addresses and phone numbers in section "How can you get in touch with Invacare®?" on page 3). In case you require assistance, please contact your Invacare® Dealer.

  • Page 108: 10.3.1.1 Repairing A Flat Tyre At The Front - Pneumatic Tyres Type 2.80/2.50-4 On Steel Rim

    10.3.1.1 Repairing a flat tyre at the front - pneumatic tyres type 2.80/2.50-4 on steel rim Pre-requisites: • Socket spanner 13 mm • Socket spanner 12 mm • Repair kit for inner tube tyres or a new inner tube. • Talcum powder Removing the wheel •...
  • Page 109 NOTE: Installation is carried out in reverse order. Please ensure that the wheel is re-fitted on the same side and in the same running direction as removed. Repairing a flat tyre • Unscrew valve cap. • Depressurise tyre by pressing in the pin in the valve . •...
  • Page 110 • Insert the wheel rim halves from outside into the tyre. • Pump up the tyres a little. • Insert the screws once again, and screw the wheel rims together tightly. Avoid crushing the inner tube! • Ensure that the tyre outer is seated correctly. •...

  • Page 111: Repairing A Flat Rear Tire (Wheel Rim Type 3.00-8")

    CAUTION Risk of hands and feet being crushed by the weight of the wheelchair. • Pay attention to your hands and feet. • Use the correct lifting techniques. 10.3.1.2 Repairing a flat rear tire (wheel rim type 3.00-8") Requirements: • torque wrench with ... - 5 mm Allen key bit - Torx bit T40 •...
  • Page 112 Removing the wheel • Raise the vehicle and place wooden blocks under it to support it. • Remove the four countersunk bolts TX40 (1) using the Torx bit. • Pull the wheel off the hub.
  • Page 113 Repairing flat tires CAUTION! Risk of explosion! The wheel explodes if the air pressure has not been released from the wheel before the wheel rim is removed! • Always let all the air out of the tire before removing the rim. •...
  • Page 114 • Apply the wheel rim halves to the wheel again. • Inflate the tire a little. • Place the cylinder head screws in the wheel rim and tighten the screws with 10 Nm. Ensure that the inner tube is not clamped between the wheel rim halves. •...

  • Page 115: Transport

    Transport CAUTION: Injury hazard or material damage if a power wheelchair which is fitted with a table is transported in a vehicle! • If a table is fitted, always remove it before transporting the wheelchair. 11.1 Transferring the wheelchair to a vehicle WARNING: The wheelchair is in danger of tipping over if it is transferred to a vehicle while the driver is still seated in the wheelchair! •...

  • Page 116: Use Of The Wheelchair As A Seat In A Vehicle

    (UK for example), but may also be obtained from Invacare® as an option in other countries. This power wheelchair complies with the requirements of ISO 7176-19:2001 and may be used as a vehicle seat in connection with an anchoring system that has been checked and approved in accordance with ISO 10542.
  • Page 117 Caution: There is a danger of injury if the wheelchair is not properly secured during use as a vehicle seat! • If possible, the user should always leave the wheelchair to use a vehicle seat and the safety belts provided with the vehicle. •...

  • Page 118: How The Wheelchair Is Anchored In A Vehicle For Use As A Vehicle Seat

    11.2.1 How the wheelchair is anchored in a vehicle for use as a vehicle seat The power wheelchair is fitted with four anchoring points, which are labelled with the symbol shown on the right. Snap hooks or belt loops can be used for fixation.

  • Page 119: How The User Is Secured Within The Wheelchair

    11.2.2 How the user is secured within the wheelchair CAUTION: There is a danger of injury if the user is not properly secured within the wheelchair! • Even if the wheelchair is fitted with a postural belt, this is no substitute for a proper safety belt which complies with ISO 10542 in the transport vehicle.
  • Page 120 This can cause the neck to be hyperextended during collisions! • A headrest must be installed! The headrest optionally supplied for this mobility device by Invacare® is perfectly suitable for use during transport. • The headrest must be adjusted to the user's ear height.
  • Page 121 Seat belts may not be held at a distance The pelvic belt should be positioned in the from the user's body using parts of the area between the user's pelvis and thighs wheelchair such as armrests or wheels. so that it is unobstructed and not too loose. The ideal angle of the pelvic belt to the horizontal is between 45°...

  • Page 122: Securing The Wheelchair For Transport Without Passengers

    Securing the wheelchair for transport without passengers CAUTION: Injury hazard! ® • If you are unable to fasten your electric wheelchair securely in a transport vehicle, Invacare recommends that you do not transport it! • Before transporting your wheelchair, make sure the motors are engaged and that the Joystick Box is switched off.

  • Page 123: Refurbishment

    Cleaning and disinfection. Please see chapter "Care and maintenance" on page 103. • Inspection according to service plan. Please consult service instructions, available from Invacare®. • Adaptation to the user. Please see chapter "Adjusting the wheelchair to the user's seating...

  • Page 124: Disposal

    Electric components and printed circuit boards are disposed of as electronic scrap. • Exhausted or damaged batteries can be returned to your medical equipment supplier or Invacare®. • Disposal must be carried out in accordance with the respective national legal provisions.

  • Page 125: Technical Specifications

    Technical specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if accessories are added. The precise changes to these values are detailed in the sections for the respective accessories. Permissible operating and storage conditions Temperature range for operation according to ISO 7176-9: •...
  • Page 126 Castor wheel tyres Tyre type • 230x60 (2.80/2.50-4) pneumatic or puncture-proof Tyre pressure The recommended maximum tyre pressure in bar or kpa is marked on the side wall of the tyre or the rim. If more than one value is listed, the lower one in the corresponding units applies.
  • Page 127 Dimensions Standard Contour Laguna Junior Seat height (with electrical • 445 - 465 mm • 470 mm seat angle adjustment) **** Seat width (armrest • 430 mm (440 - 490 mm**) • 360 mm (290 adjustment range in - 360 mm) parentheses) •...
  • Page 128 **** Measured without seat cushion ***** The actual kerb weight depends on the fittings your mobility aid has been supplied with. Every Invacare® mobility aid is weighed when leaving the works. Please refer to the nameplate for the kerb weight (including batteries) measured.

  • Page 129: Inspections Performed

    It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the Service and Repair Instructions have been properly performed. The list of the inspection jobs to be performed can be found in the Service Manual which is available through Invacare®. Delivery Inspection...

Table of Contents
