ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver , an adjustable spanner
, and a rubber mallet .

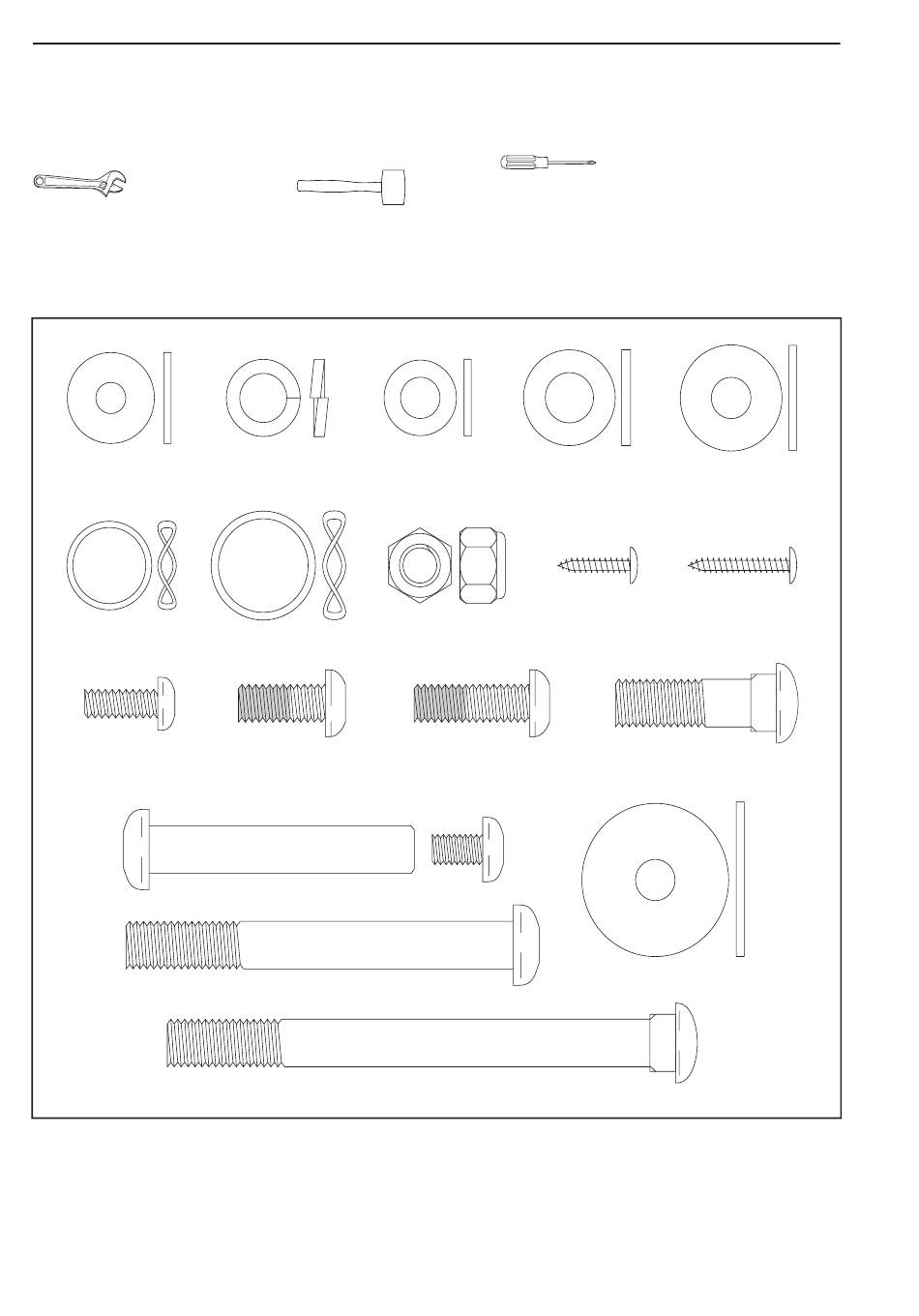

Refer to the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 22. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
M6 Large M8 x 16mm M10 Washer M8 x 22mm
M10 Split
Washer (94)– 2 Washer (70)– 3 Washer (45)– 2 (119)– 2 Washer (53)– 2
M10 Nylon M4 x 16mm M4 x 22mm
Wave Washer Large Wave
Locknut (106)– 4 Screw (66)– 4
Screw (93)– 2
(116)– 2 Washer (123)– 2
M6 x 16mm Button
M8 x 19mm Patch M8 x 25mm Patch M10 x 35mm
Screw (109)– 2 Screw (108)– 4 Screw (22)– 2 Carriage Bolt (121) – 2
Bolt Set (27)– 2
M10 x 85mm Button Screw (63)– 1
M8 x 32mm
Washer (122)– 2
M10 x 112mm Carriage Bolt (34)– 4
4
