Model No. PFEVEL79940
Serial No.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:
08457 089 009
Or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
All manuals and user guides at all-guides.com
Serial
Number
Decal

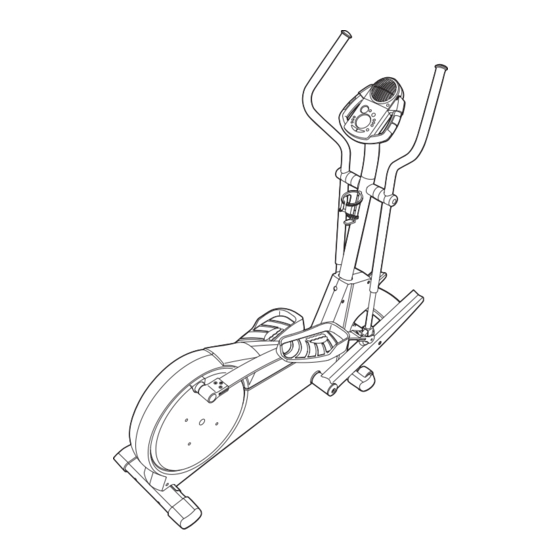

USERʼS MANUAL
Visit our website at
www.iconeurope.com
Advertisement
Table of Contents
Related Manuals for Pro-Form 725 PR
Summary of Contents for Pro-Form 725 PR
- Page 1 All manuals and user guides at all-guides.com USERʼS MANUAL Model No. PFEVEL79940 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call: 08457 089 009 Or write:...
-
Page 2: Table Of Contents
TABLE OF CONTENTS All manuals and user guides at all-guides.com IMPORTANT PRECAUTIONS ..............2 BEFORE YOU BEGIN . -
Page 3: Before You Begin
® Customer Service Department at 08457 089 009. To 725 PR elliptical crosstrainer. The PROFORM 725 PR is an incredibly smooth exerciser that moves your feet help us assist you, please note the product model in a natural elliptical path, minimising the impact on number and serial number before calling. -
Page 4: Assembly
All manuals and user guides at all-guides.com ASSEMBLY Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included hex keys, assembly requires a phillips screwdriver , an adjustable spanner , and a rubber mallet... - Page 5 All manuals and user guides at all-guides.com 1. Identify the Front Stabiliser (3). Whilst another person lifts the front of the Frame (1), attach the Front Stabiliser to the Frame with two M10 x 112mm Carriage Bolts (34) and two M10 Nylon Locknuts (106).
- Page 6 All manuals and user guides at all-guides.com 5. Whilst another person holds the Console (5) near the Upright (2) as shown, connect the wire harness on the Make sure the Console to the Upper Wire Harness (86). Insert the wire harnesses excess wire harness into the Upright.
- Page 7 All manuals and user guides at all-guides.com 9. Apply a small amount of the included Teflon lubricant ® to a paper towel. Rub a thin film of the lubricant onto the Handlebar Legs (79). Next, identify the Left Handlebar (9) and the Right Handlebar (10), which are marked with stickers.
- Page 8 All manuals and user guides at all-guides.com 11. Plug the Power Cord (not shown) fully into the AC Power Receptical (114) on the front of the elliptical crosstrainer (see HOW TO PLUG IN THE POWER CORD on page 9). 12. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may be left over after assembly is completed.
-
Page 9: How To Use The Elliptical Crosstrainer
All manuals and user guides at all-guides.com HOW TO USE THE ELLIPTICAL CROSSTRAINER HOW TO PLUG IN THE POWER CORD HOW TO EXERCISE ON THE ELLIPTICAL CROSSTRAINER This product must be earthed. If it should malfunc- tion or break down, earthing provides a path of least To mount the elliptical crosstrainer, hold the handgrip resistance for electric current to reduce the risk of pulse sensor and step onto the pedal that is in the... - Page 10 All manuals and user guides at all-guides.com Fan Button Display Buttons On/Reset Button FEATURES OF THE CONSOLE can connect the elliptical crosstrainer to your home stereo, portable stereo, computer, or VCR and play The advanced console offers a selection of features special iFIT.com CD and video programs (iFIT.com designed to make your workouts more enjoyable and CDs and videocassettes are available separately).
- Page 11 All manuals and user guides at all-guides.com The upper sec- HOW TO USE THE MANUAL MODE tion of the large display will show the distance you Turn on the console. have pedalled and the numbers Note: Make sure that the power cord is fully of calories and fat calories you have burned (see plugged into an appropriate outlet (see HOW TO FAT BURNING on page 21 for an explanation of...
- Page 12 All manuals and user guides at all-guides.com To view only your pedalling pace or the resis- large display will show your heart rate continu- tance level, press the lower button on the left ously for 30 seconds. The display will then show side of the large display until only the letters RPM your heart rate along with other feedback modes.
- Page 13 All manuals and user guides at all-guides.com The target pace HOW TO USE A SMART PROGRAM for the current Indicator period will be shown by the Each Smart program will automatically change the arrows in the Arrows resistance of the pedals and prompt you to increase or small display.
- Page 14 All manuals and user guides at all-guides.com gram to operate properly. Each time you hold HOW TO USE A HEART RATE PROGRAM the handgrips, keep your hands on the metal contacts for at least 30 seconds. Note: When you are not holding the handgrips, the letters PLS Heart Rate program 1 is designed to keep your heart will appear in the large display instead of your rate between 65% and 85% of your maximum heart...
- Page 15 All manuals and user guides at all-guides.com Note: If you stop pedalling for a few seconds, the HOW TO CONNECT YOUR CD PLAYER, VCR, program will end. To use the program again, rese- OR COMPUTER lect it and start it at the beginning. Follow your progress with the large display.
- Page 16 All manuals and user guides at all-guides.com HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT YOUR HOME STEREO Note: If your stereo has an RCA-type AUDIO OUT Note: If your stereo has an unused LINE OUT jack, jack, see instruction A below. If your stereo has a see instruction A below.
- Page 17 All manuals and user guides at all-guides.com HOW TO CONNECT YOUR COMPUTER HOW TO CONNECT YOUR VCR Note: If your computer has a 3.5mm LINE OUT jack, Note: If your VCR has an unused AUDIO OUT jack, see instruction A. If your computer has only a see instruction A below.
- Page 18 All manuals and user guides at all-guides.com The program will function in almost the same way HOW TO USE IFIT.COM CD AND VIDEO as a Smart program (see step 3 on page 13). PROGRAMS However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.
- Page 19 All manuals and user guides at all-guides.com Start your Web browser, if necessary, and go HOW TO USE PROGRAMS DIRECTLY FROM to our Web site at www.iFIT.com. OUR WEB SITE Follow the desired links on our Web site to select a program. Our Web site at www.iFIT.com allows you to play iFIT.com programs directly from the internet.
-
Page 20: Maintenance And Troubleshooting
All manuals and user guides at all-guides.com MAINTENANCE AND TROUBLESHOOTING HOW TO LEVEL THE ELLIPTICAL CROSSTRAINER Inspect and tighten all parts of the elliptical crosstrainer regularly. Replace any worn parts immediately. After the elliptical For smooth opera- crosstrainer has tion of the elliptical been moved, make crosstrainer, clean sure that the ends... -
Page 21: Conditioning Guidelines
All manuals and user guides at all-guides.com CONDITIONING GUIDELINES WARNING: During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for ener- gy. Only after the first few minutes of exercise does • Before beginning this or any exercise pro- your body begin to use stored fat calories for energy. -
Page 22: Part List
PART LIST—Model No. PFEVEL79940 All manuals and user guides at all-guides.com R0505A No. Qty. Description No. Qty. Description No. Qty. Description Frame Flywheel Bearing Upper Wire Harness Upright Magnet Lower Wire Harness Front Stabiliser Flywheel Axle Pivot Axle Rear Stabiliser M8 x 16mm Washer M8 x 22mm Button Bolt Console... -
Page 23: Exploded Drawing
EXPLODED DRAWING—Model No. PFEVEL79940 All manuals and user guides at all-guides.com R0505A 77 73... -
Page 24: How To Order Replacement Parts
To help us assist you, please be prepared to give the following information: • The MODEL NUMBER of the product (PFEVEL79940) • The NAME of the product (PROFORM 725 PR elliptical crosstrainer) • The SERIAL NUMBER of the product (see the front cover of this manual) •...
