Function Display- Controller - Icom IC-F9511HT Instruction Manual

1
PANEL DESCRIPTION

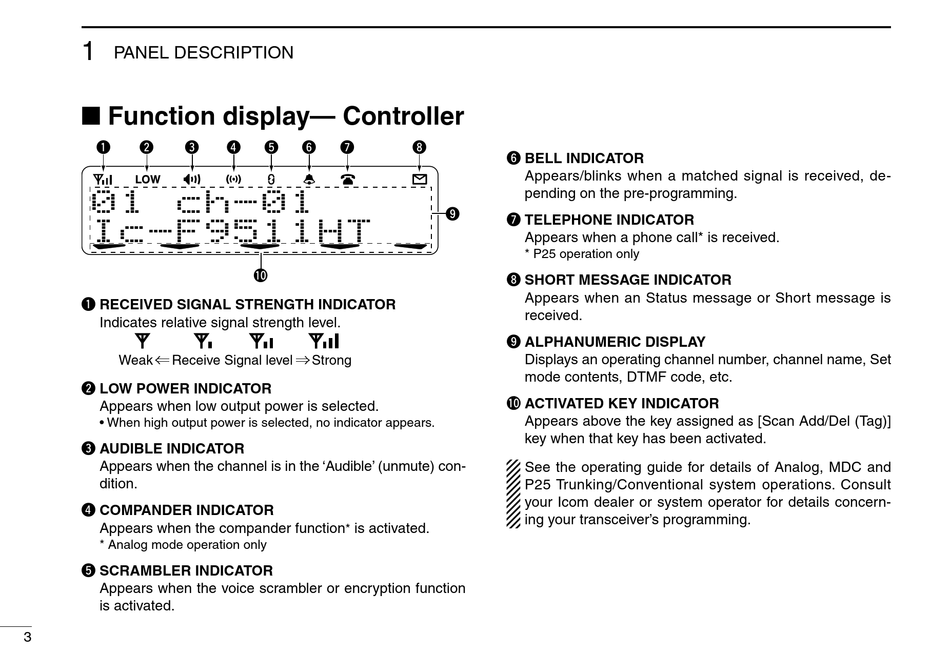

n Function display— Controller
q w e
0 1 c h - 0 1
I c - F 9 5 1 1 H T
q RECEIVED SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
Weak Receive Signal level
w LOW POWER INDICATOR
Appears when low output power is selected.
• When high output power is selected, no indicator appears.
e AUDIBLE INDICATOR
Appears when the channel is in the 'Audible' (unmute) con-
dition.
r COMPANDER INDICATOR
Appears when the compander function
* Analog mode operation only
t SCRAMBLER INDICATOR
Appears when the voice scrambler or encryption function
is activated.
3
r t y u
!0
Strong
is activated.
*
i
y BELL INDICATOR
Appears/blinks when a matched signal is received, de-
pending on the pre-programming.
o
u TELEPHONE INDICATOR
Appears when a phone call* is received.
* P25 operation only
i SHORT MESSAGE INDICATOR
Appears when an Status message or Short message is
received.
o ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name, Set
mode contents, DTMF code, etc.
!0 ACTIVATED KEY INDICATOR
Appears above the key assigned as [Scan Add/Del (Tag)]
key when that key has been activated.
See the operating guide for details of Analog, MDC and
P25 Trunking/Conventional system operations. Consult
your Icom dealer or system operator for details concern-
ing your transceiver's programming.
