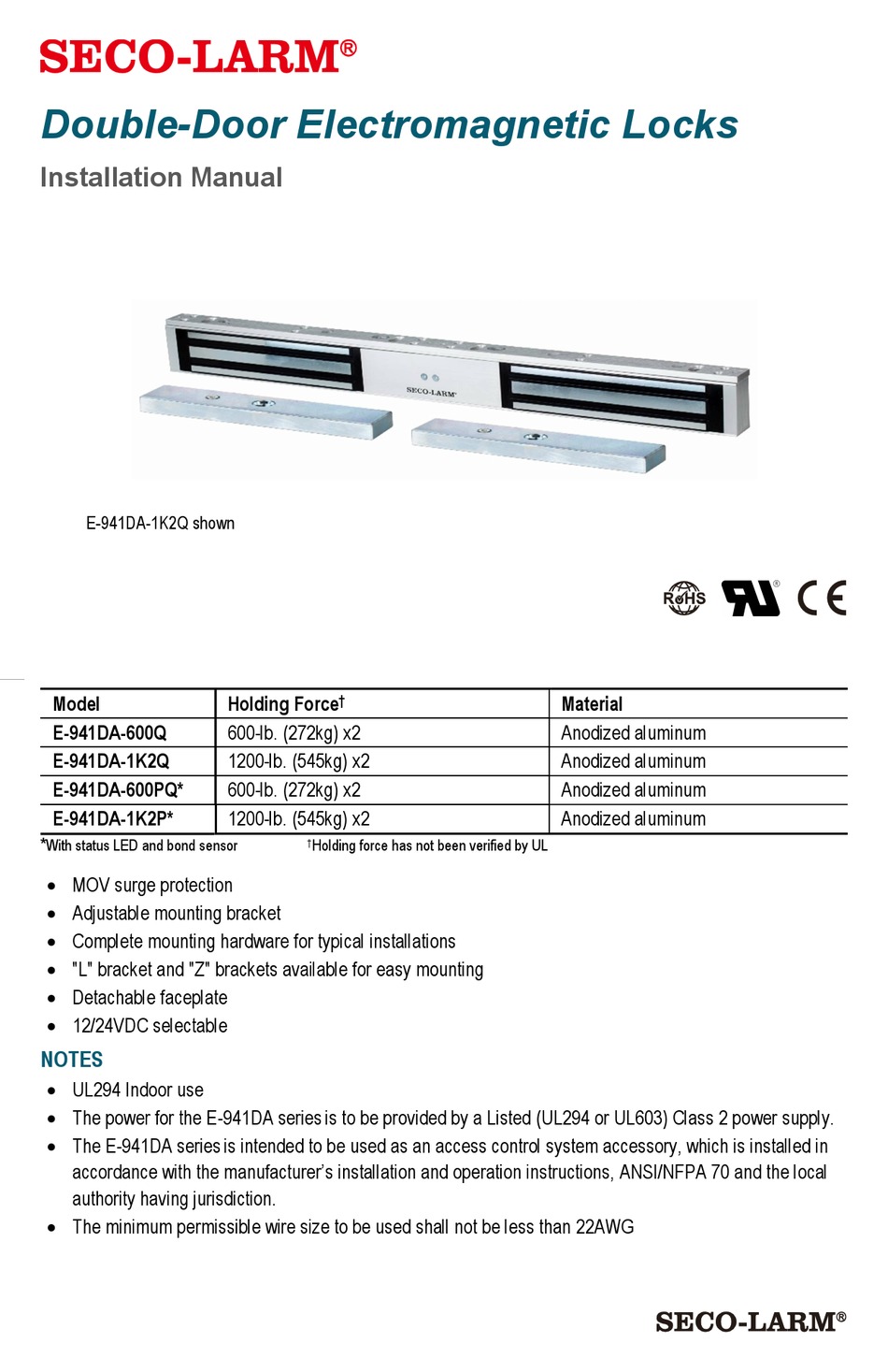

Double-Door Electromagnetic Locks
Installation Manual
E-941DA-1K2Q shown
Model
E-941DA-600Q
E-941DA-1K2Q
E-941DA-600PQ*
E-941DA-1K2P*
*
With status LED and bond sensor
MOV surge protection
Adjustable mounting bracket
Complete mounting hardware for typical installations
" L " bracket and " Z " brackets available for easy mounting
Detachable faceplate
12/24VDC selectable
NOTES
UL294 Indoor use
The power for the E-941DA series is to be provided by a Listed (UL294 or UL603) Class 2 power supply.
The E-941DA series is intended to be used as an access control system accessory, which is installed in
accordance with the manufacturer's installation and operation instructions, ANSI/NFPA 70 and the local
authority having jurisdiction.
The minimum permissible wire size to be used shall not be less than 22AWG
Holding Force
†
600-lb. (272kg) x2
1200-lb. (545kg) x2
600-lb. (272kg) x2
1200-lb. (545kg) x2
†
Holding force has not been verified by UL
Material
Anodized aluminum
Anodized aluminum
Anodized aluminum
Anodized aluminum
Advertisement
Table of Contents
Related Manuals for SECO-LARM E-941DA-600Q
Summary of Contents for SECO-LARM E-941DA-600Q
- Page 1 Double-Door Electromagnetic Locks Installation Manual E-941DA-1K2Q shown Model Holding Force Material † E-941DA-600Q 600-lb. (272kg) x2 Anodized aluminum E-941DA-1K2Q 1200-lb. (545kg) x2 Anodized aluminum E-941DA-600PQ* 600-lb. (272kg) x2 Anodized aluminum E-941DA-1K2P* 1200-lb. (545kg) x2 Anodized aluminum With status LED and bond sensor †...
-
Page 2: Parts List
SECO-LARM Double-Door Electromagnetic Locks Parts List 1x Mounting plate 2x Armature plate 4x Short self-tapping screws Door spacer 1x Electromagnet 2x Armature screw 8x Long self-tapping screws Sexnut bolt 4x Steel washers 2x Rubber washer 4x Hex-head mounting screws 4x... -
Page 3: Installation Applications
3. The most suitable mounting location for the electromagnetic locks may require the use of additional SECO-LARM accessories such as Z-brackets, L-brackets, and/or spacer plates. 4. Do not run power wires and signal wires in the same conduit as this may cause interference. -
Page 4: Installation
SECO-LARM Double-Door Electromagnetic Locks Installation Fold the mounting template along the dotted Close the doors. Find a mounting location on the line to form a 90-degree angle. center of the door frame, directly above where both doors meet when closed. - Page 5 SECO-LARM Double-Door Electromagnetic Locks 7. Put a rubber washer between the two metal 8. Tighten the armature screws enough so that washers and place them over the armature the armature plates can withstand a break-in screw between the armature plates and the attempt, but loose enough so that the armature doors.
- Page 6 SECO-LARM Double-Door Electromagnetic Locks 13. Push the electromagnet against the mounting plate so 12. Remove the cover from the front of the the ends are flush with each other. Use the Allen electromagnets. Run the power leads wrench to screw the hex-head mounting screws through the large cable access holes.
-
Page 7: Wiring Diagram
SECO-LARM Double-Door Electromagnetic Locks Wiring Diagram Circuit Board Control Device – N.O. – Power Supply N.C. 12/24 VDC Voltage = 12VDC jumpers = 24VDC NOTES Connect switching devices like push-to-exit switches between the power source and the positive terminal of the lock. Connecting them to the negative terminal may cause a delay in unlocking. -
Page 8: Troubleshooting
IMPORTANT: Users and installers of this product are responsible for ensuring that the installation and configuration of this product complies with all national, state, and local laws and codes. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
