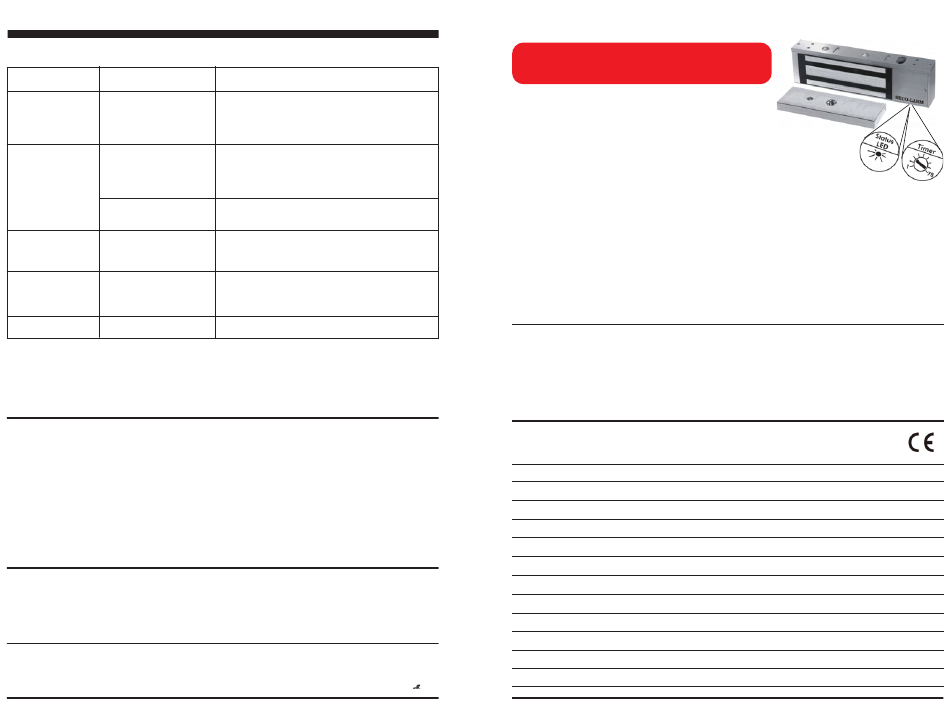

SECO-LARM E-941SA-1K2PD Installation Manual

ELECTROMAGNETIC LOCK Installation Manual
TROUBLESHOOTING
Problem: Possible cause:
• Door does not lock No power
• Status LED is not
illuminated
Door locks, but can be Poor contact between
easily forced open electromagnet and armature
plate
Incorrect voltage setting
• A secondary diode was
Delay in door
installed across the
releasing
electromagnet
• No power
No relay output
• Misalignment
Delay in door relocking
• Check timer
REGULAR MAINTENANCE
• Clean the contact surfaces of the electromagnet or armature plate with a soft cloth and non-abrasive, non-corrosive cleaner.
• Apply a light coat of a silicon lubricant to prevent rust. Wipe away the excess.
• Check that the armature plate is securely attached to the door, yet can pivot slightly around the armature screw.
• Check that the electromagnet is securely attached to the door frame.
LIFETIME LIMITED WARRANTY:
material and workmanship while used in normal service for the lifetime of the product. SECO-LARM's obligation is limited to the
repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. Under no
circumstances will SECO-LARM be responsible for any costs or charges for removal, installation, or reinstallation.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair,
or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such
equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to repair or replacement only, at
SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or
property damages of any kind to the purchaser or anyone else. This lifetime limited warranty is for products sold and installed in
the United States and Canada. For all other countries the warranty is 1 (one) year.
NOTICE:
The information and specifications printed in this manual are current at the time of publication. However,
the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to
change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2011 SECO-LARM U S A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of SECO-LARM.
SECO-LARM U.S.A., Inc. O A U ., c
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Page 4
Solutions:
• Check to make sure the wires are securely tightened to the
terminal block.
• Check that the power supply is connected and operating.
• Make sure the lock switch is wired correctly.
• Make sure the electromagnet and armature plate are
properly aligned.
• Make sure the contact surfaces of the electromagnet and
armature plate are clean and free from rust.
• Check the power leads with a meter, and make sure 12VDC
or 24VDC is present.
• The electromagnet is fitted with a metal oxide varistor to
prevent interference, so do not install a secondary diode.
• Check that the power is connected and operating.
• Make sure the lock is aligned properly.
• Make sure the NO/NC/COM are wired properly.
• Make sure timer is adjusted to desired delay time.
This SECO-LARM product is warranted against defects in
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
E-941SA-1K2PDc.pmd
SECO-LARM U.S.A., Inc.
Installation Manual
SECO - - - - L R S EC
SECO SECO
E-941SA-1K2PD
1200 Pound Holding Force Electromagnetic
Lock with status sensor, LED status display
and adjustable time delay.
Also available:
E-941DA-1K2P
E-941SA-1200
E-941SA-600
E-941SA-300
HOW IT WORKS
When power is applied to the magnetic lock, it turns on the unit's powerful built-in electromagnet. This electromagnet is
attracted to the steel armature plate which is mounted on a door, holding the door fast against unauthorized entry. When
power to the magnetic lock is turned off, the electromagnet releases the armature plate, allowing the door to open. In
addition, the E-941SA-1K2PD has built-in LEDs to show electromagnet status, plus a status sensor to monitor whether the
door is securely closed, and a built-in adjustable-delay locking timer.
SPECIFICATIONS
Power
Magnet Size
Armature Size
Holding Force
Status Sensor
Status LED (2-Color)
Timer Delay
Current Drain
Voltage Tolerance
Housing
Temperature
Weight
P TGW1
O L R LAR M M M M
LAR
-
Double-door 1200 lb. maglock with status
sensor and LED
-
1200 lb. maglock without status sensor
-
600 lb. maglock without status sensor
-
300 lb. maglock without status sensor
E-941SA-1K2PD
12/24 VDC
10½ x 1 5 / x 2 5 / in. (268 x 42 x 67 mm)
8 8
7 / x / x 2 / in. (185 x 16 x 61 mm)
1 5 3
4 8 8
1200-lb (545kg)
Relay, 3A @ 12VDC
Locked - Green, Unlocked - Red
1~78 seconds
500mA @ 12VDC, 250mA @ 24VDC
± 10%
Aluminum
14° ~ 131°F (-10° ~ 55°C)
11-lb (5.0 kg)
