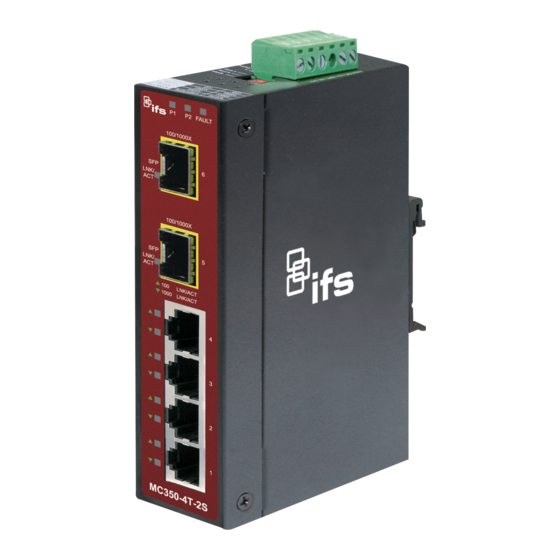

Interlogix IFS MC350-4T-2S User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IFS MC350-4T-2S User
Manual
P/N 1072684 • REV A • ISS 22OCT13

Advertisement

Table of Contents
loading

Related Manuals for Interlogix IFS MC350-4T-2S

Summary of Contents for Interlogix IFS MC350-4T-2S

  • Page 1 IFS MC350-4T-2S User Manual P/N 1072684 • REV A • ISS 22OCT13...
  • Page 2 © 2013 United Technologies Corporation Copyright Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. The IFS MC350-4T-2S name and logo are trademarks of United Technologies. Trademarks and patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 . INTRODUCTION........................4 1 .1 P ......................4 ACKAGE ONTENTS 1 .2 H .....................4 OW TO ANUAL 1 .3 P ......................5 RODUCT EATURES 1 .4 P .....................6 RODUCT PECIFICATIONS 1 .5 P ......................8 HYSICAL IMENSIONS 2 . INSTALLATION........................9 2 .1 P ......................9 RODUCT...

  • Page 4: Introduction

    1. INTRODUCTION 1.1 Package Contents Check the contents of your package for the following parts: Industrial Gigabit Ethernet Switch x 1 ● User's Manual x 1 ● DIN Rail Kit x 1 ● Wall Mount Kit x 1 ● If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the original packing material, and use them again to repack the product in case there is a need to return it to us for repair.

  • Page 5: Product Features

    1.3 Product Features Physical Port 4-Port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function 2 SFP interfaces, 100/1000Base-X dual mode (DIP switch control) Layer 2 Features IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet Standard Compliant Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control...

  • Page 6: Product Specifications

    1.4 Product Specifications Model MC350-4T-2S Hardware Specification 10/100/1000Base-T Ports 2 1000Base-SX/LX/BX SFP interfaces (Port-5 and Port-6) SFP Interfaces Compatible with 100Base-FX SFP 135 x 87 x 32mm Dimensions (W x D x H) 503g Weight DC 12~48V, Redundant power with polarity reverses protection Power Requirements function.
  • Page 7 10/100/1000Base-T: Cat. 3, 4, 5, 5e, 6 UTP cable (100meters, max.) EIA/TIA-568 100-ohm STP (100meters, max.) 1000Base-SX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (vary on SFP module) 1000Base-LX : Network Cables 9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (vary on SFP module) 100Base-FX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to...

  • Page 8: Physical Dimensions

    1.5 Physical Dimensions MCR350-4T-2S Industrial Gigabit Ethernet Switch dimensions (W x D x H): 135 x 87 x 32mm...

  • Page 9: Installation

    2. INSTALLATION This section describes the functionalities of the Industrial Gigabit Ethernet Switch’s components and guides how to install it on the desktop. Basic knowledge of networking is assumed. Please read this chapter completely before continuing. 2.1 Product Description Flexibility and Network Distance Extension Solution The MC350-4T-2S Industrial Gigabit Ethernet Switch is equipped with four 10/100/1000Base-T auto-negotiation ports and two 100/1000X SFP slots.

  • Page 10: Switch Front Panel

    2.1.1 Switch Front Panel Figure 2-1 shows a front panel of Industrial Gigabit Ethernet Switch. Figure 2-1: MC350-4T-2S Front Panel...

  • Page 11: Led Indicators

    2.1.2 LED Indicators System Color Function Lit: indicate power 1 has power. Green Lit: indicate power 2 has power. Green Lit: indicate either power 1 or power 2 has no power. FAULT Green Per 10/100/1000T Ports Color Function Lit: indicate the link through that port is successfully established at 100Mbps or Orange 10Mbps.

  • Page 12: Switch Upper Panel

    2.1.3 Switch Upper Panel The upper panel of the Industrial Gigabit Ethernet Switch consists of one terminal block connector within two DC power inputs, and also provides 3 DIP Switches for 100/1000X fiber support on two SFP slots and fiber redundant function. Figure shows the upper panel of the Industrial Gigabit Ethernet Switch.

  • Page 13: Wiring The Power Inputs

    2.1.4 Wiring the Power Inputs The 6-contact terminal block connector on the top panel of Industrial Gigabit Ethernet Switch is used for two DC redundant power inputs. Please follow the steps below to insert the power wire. Insert positive / negative DC power wires into the contacts 1 and 2 for POWER 1, or 5 and 6 for POWER 2. V1- V1 + V2 - V2 + Tighten the wire-clamp screws for preventing the wires from loosening.

  • Page 14: Wiring The Fault Alarm Contact

    2.1.5 Wiring the Fault Alarm Contact The fault alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the Industrial Gigabit Ethernet Switch will detect the fault status of the power failure and then forms an open circuit. The following illustration shows an application example for wiring the fault alarm contacts.

  • Page 15: Cabling

    2.1.6 Cabling 10/100/1000Base-T and 100Base-FX / 1000Base-SX/LX All 10/100/1000Base-T ports come with Auto-Negotiation capability. They automatically support 1000Base-T, 100Base-TX and 10Base-T networks. Users only need to plug a working network device into one of the 10/100/1000Base-T ports, and then turn on the Industrial Gigabit Ethernet Switch. The port will automatically runs in 10Mbps, 20Mbps, 100Mbps or 200Mbps and 1000Mbps or 2000Mbps after the negotiation with the connected device.
  • Page 16 Figure 2-3: Plug-in the SFP Transceiver Approved IFS SFP Transceivers IFS Industrial Gigabit Ethernet Switch supports 100/1000 dual mode with both Single mode and Multi-mode SFP transceivers. The following list of approved IFS SFP transceivers is correct at the time of publication: Gigabit SFP TRANSCEIVERS Modules UTC Model SFP Description...
  • Page 17 Fast Ethernet SFP Transceiver Modules UTC Model SFP Description S35-2MLC SFP, LC Connector, Multi Mode, Gigabit, 2 fiber,850nm/850nm, 550m, Hardened -40~75°C S35-2SLC-10 SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1310nm/1310nm, 10km, Hardened -40~75°C SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1310nm/1310nm, 30km, Hardened S35-2SLC-30 -40~75°C SFP, LC Connector, Single Mode, Gigabit, 2 fiber,1550nm/1550nm, 70km, Hardened...
  • Page 18 1000Base-SX/LX: Before connecting the other switches, workstation or Media Converter, please do the following: Set the DIP Switch of SFP Port 1 or Port 2 to the “OFF” position with fiber speed 1000Base-X. Port 5 (DIP 1) 100FX 1000X Port 6 (DIP 2) 100FX 1000X Make sure both sides of the S30/SXX SFP transceiver are with the same media type, for example: 1000Base-SX to...
  • Page 19 Check the LNK/ACT LED of the SFP slot of the switch / converter. Make sure that the SFP transceiver is operating correctly. 2.1.6.2 Remove the Transceiver Module Make sure there is no network activity by consulting or checking with the network administrator. Or through the management interface of the switch/converter (if available) to disable the port in advance.

  • Page 20: Redundancy Overview

    2.1.7 Redundancy Overview The Industrial Gigabit Ethernet Switch provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant-mode supports auto-recover function. If the destination port of a packet is link down, it forwards the packet to the other port of the backup pair. The following figure shows the redundant function. Figure 2-5: Redundancy Behavior Topology Link status auto detect and redundant on Dual ports with same connector type.

  • Page 21: Mounting Installation

    2.2 Mounting Installation This section describes how to install the Industrial Gigabit Ethernet Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. In the installation steps below, this Manual uses MC350-4T-1S (IFS 8 Port Industrial Gigabit Switch) as the example.
  • Page 22 Step 3: Make sure the DIN-Rail is tightly secured on the track. Step 4: Please refer to the following procedures to remove the Industrial Gigabit Ethernet Switch from the track. Step 5: Lightly pull out the bottom of the DIN-Rail from the track to remove.

  • Page 23: Wall Mount Plate Mounting

    2.2.2 Wall Mount Plate Mounting To install the Industrial Gigabit Ethernet Switch on the wall, please follow the instructions described below. Step 1: Remove the DIN-Rail from the Industrial Gigabit Ethernet Switch; loose the screws to remove the DIN-Rail. Step 2: Place the wall mount plate on the rear panel of the Industrial Gigabit Ethernet Switch. Step 3: Use the screws to screw the wall mount plate on the Industrial Gigabit Ethernet Switch.

  • Page 24: Application

    3. Applications In this paragraph, we will describe how to install the Industrial Gigabit Ethernet Switch. Public Construction...
  • Page 25 Harsh Climate...
  • Page 26 Installation Steps 1: Unpack the Industrial Gigabit Ethernet Switch. Step Step 2: Check whether the DIN-Rail is screwed on the Industrial Gigabit Ethernet Switch. (Please refer to DIN-Rail Mounting section for DIN-Rail installation if the DIN-Rail is not screwed on the Industrial switch). If you want to wall mount the Industrial Gigabit Ethernet Switch, then please refer to the Wall Mount Plate Mounting section for wall mount plate installation.

  • Page 27: Switch Operation

    4. Switch Operation 4.1 Address Table The Industrial Gigabit Ethernet Switch is implemented with an address table. This address table is composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc.

  • Page 28: Auto-Negotiation

    The Industrial Gigabit Ethernet Switch performs "Store and Forward"; therefore, no error packets occur. More reliably, it reduces the re-transmission rate. No packet loss will occur. 4.5 Auto-Negotiation The STP ports on the Industrial Gigabit Ethernet Switch have a built-in “Auto-negotiation”. This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset).

  • Page 29: Troubleshooting

    5. Troubleshooting This chapter contains information to help you solve issues. If the Industrial Gigabit Ethernet Switch is not functioning properly, make sure the Industrial Gigabit Ethernet Switch was set up according to instructions in this manual. The per port LED is not lit Solution: Check the cable connection of the Industrial Gigabit Ethernet Switch.

  • Page 30: Cable Connection Parameters

    6. CABLE CONNECTION PARAMETERS The wiring details are as below: 100FX Fiber Optical Cables: ■ Standard Fiber Type Cable Specification 100Base-FX Multi-mode 50/125μm or 62.5/125μm (1300nm) 100Base-FX Multi-mode 50/125μm or 62.5/125μm (1310nm) Single-mode 9/125μm 100Base-BX-U Single-mode 9/125μm (TX :1310/RX :1550) 100Base-BX-D (TX :1550/RX :1310) 1000X Fiber Optical Cables:...

  • Page 31: Appendix A: Networking Connection

    APPENDIX A: Networking Connection A.1 Switch’s RJ-45 Pin Assignments 1000Mbps, 1000Base-T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- 10/100Mbps, 10/100Base-TX RJ-45 Connector pin assignment MDI-X Contact Media Dependent Media Dependent Interface Interface -Cross Tx + (transmit)
  • Page 32 A.2 RJ-45 Cable Pin Assignments The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight Cable SIDE 1 SIDE2 SIDE 1...
