Operator's Manual
Register your machine:
www.lincolnelectric.com/register
Authorized Service and Distributor Locator:
www.lincolnelectric.com/locator
Save for future reference
Date Purchased
Code: (ex: 10859)
Serial: (ex: U1060512345)
IM10573
| Issue
D
a
e t
© Lincoln Global, Inc. All Rights Reserved.
®
Sep - 21
TM
For use with machines having Code Numbers:
13020
Advertisement
Table of Contents
Related Manuals for Lincoln Electric Activ8X Pipe
Summary of Contents for Lincoln Electric Activ8X Pipe
- Page 1 Operator’s Manual ® For use with machines having Code Numbers: 13020 Register your machine: www.lincolnelectric.com/register Authorized Service and Distributor Locator: www.lincolnelectric.com/locator Save for future reference Date Purchased Code: (ex: 10859) Serial: (ex: U1060512345) IM10573 | Issue Sep - 21 © Lincoln Global, Inc. All Rights Reserved.
- Page 2 THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY...
-
Page 3: Section A: Warnings
P.O. Box 351040, Miami, Florida 33135 or CSA Standard W117.2. which are now not known. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 2.d. All welders should use the following procedures in order to 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199. - Page 4 SAFETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”...
- Page 5 SAFETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
- Page 6 Activ8X Pipe™ ® TABLE OF CONTENTS...

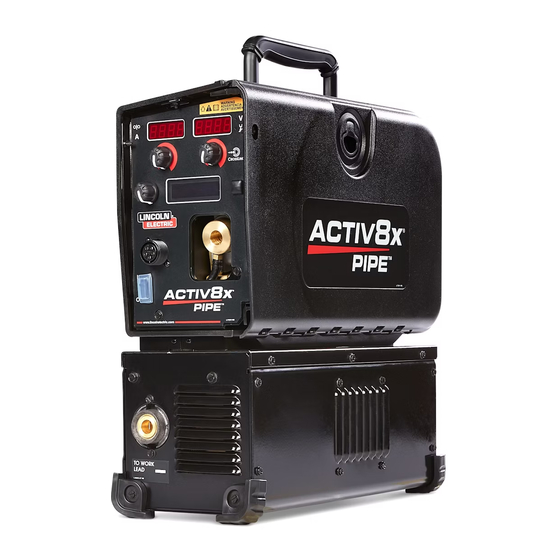

- Page 7 The Activ8X Pipe is a rugged, portable, across-the-arc wire feeder • with CrossLinc. The Activ8X Pipe has been designed for use in eld welding cross-country pipelines ans process pipe. Tie-ins and pump stations are areas where fully automatic welding cannot be easily applied and semi-automatic wire welding is advantageous.
-
Page 8: Installation
15 degrees. Do not submerge the Activ8X Pipe. The Activ8X Pipe is rated IP23 and is suitable for outdoor use. The handle of the Activ8X Pipe is intended for moving the wire feeder about the work place only. - Page 9 - MODEL SUMMARY Drive Roll Kit Feed Plate Gun Adapter Description Meters Included Installed .035/.045 Activ8X Pipe DIGITAL K1500-2 K4717-1 V-groove INPUT - SINGLE PHASE Input Amperes @ Rated Input Voltage +/- 10% Output 60 - 90V DC...
-
Page 10: Trigger Connector
Activ8X® Pipe™ INSTALLATION recoMMenDeD electroDe anD WorK cable siZes For arc WelDinG (See Table A.1) Tabulated below are copper cable sizes recommended for different currents and duty cycles. Lengths stipulated are the distance from the welder through work and back to the welder again. - Page 11 Activ8X® Pipe™ INSTALLATION proceDUre to install Drive rolls anD pressUre arM aDjUstMent Wire GUiDes WARNING WARNING ELECTRIC SHOCK CAN KILL. ELECTRIC SHOCK CAN KILL. • Turn the input power OFF at the welding • Turn the input power OFF at the welding power source power source before installation or before installation or changing drive rolls and/or guides.
- Page 12 Activ8X® Pipe™ INSTALLATION cHanGinG tHe GUn aDapter bUsHinG WARNING ELECTRIC SHOCK CAN KILL. • Turn the input power OFF at the welding power source before installation or changing drive rolls and/or guides. • Do not touch electrically live parts. • When inching with the gun trigger, electrode and drive mechanism are "hot"...
-
Page 13: Shielding Gas Connection
Activ8X® Pipe™ INSTALLATION GUN CONNECTION SHIELDING GAS CONNECTION WARNING WARNING ELECTRIC SHOCK CAN KILL. CYLINDER may explode if damaged. • Turn the input power OFF at the welding power source before installation or changing drive • Keep cylinder upright and chained rolls and/or guides. -
Page 14: Operation
Activ8X® Pipe™ OPERATION OPERATION Observe additional Safety Guidelines detailed in the beginning of this manual. SAFETY PRECAUTIONS The serviceability of a product or structure utilizing the Activ8X PIPE wirefeeder is and must be the sole responsibility of the WARNING builder/user. Many variables beyond the control of The Lincoln Electric Company affect the results obtained in using the Activ8X ELECTRIC SHOCK can kill. - Page 15 Activ8X® Pipe™ INSTALLATION Item K# Description ACROSS THE ARC SET-UP WITH CROSSLINC (RECOMMENDED) K4717-1 Activ8X® Pipe™ (Tweco) With the power source in Stick, CV-Gas or CV-Innershield, place K4273-1 K4273-1 Flextec 350X Power Connect (Tweco) the Local/Remote switch in the Remote position. In many newer Drive Roll Kit KP1696-1 models of CrossLinc compatible power sources, the Local/...
-
Page 16: Definition Of Welding Terms
Activ8X® Pipe™ OPERATION DEFINITION OF WELDING TERMS NON-SYNERGIC WELDING MODES • A Non-synergic welding mode requires all welding process vari- ables to be set by the operator. SYNERGIC WELDING MODES • A Synergic welding mode offers the simplicity of single knob control. - Page 17 Activ8X® Pipe™ OPERATION Digital Meter Displays VOLTAGE DISPLAY IN SYNERGIC WELDING While Idle: For synergic CV modes, the right display will show trim. When the right knob is rotated, the display will show an upper The left display shows the preset wire feed speed. The right or lower bar if the voltage is above or below the ideal voltage display shows the preset voltage when it is connected to a compatible power source.
-
Page 18: Steel And Stainless Synergic Gmaw-P (Pulsed Mig) Welding
Activ8X® Pipe™ OPERATION STEEL AND STAINLESS SYNERGIC GMAW-P (PULSED MIG) WELDING Synergic GMAW-P (Pulsed MIG) welding is ideal for low spatter, out of position and reduced heat input applications. During pulse welding, the welding current continuously switches from a low level to a high level and then back again. Each pulse sends a small droplet of molten metal from the wire to the weld puddle. - Page 19 The display continues to hold the value of the amperage display shows the preset voltage or trim when it is connected to a power source that supports the Activ8X Pipe and CrossLinc or WFS and arc voltage for five seconds after the communication has been established (see figure B.1).
-
Page 20: Welding Modes
Pressing the right pushbutton allows you to cycle through and make active any of the 4 memories stored in the Activ8X Pipe ® After 5 seconds of inactivity (or immediately following a gun trigger, gas purge or cold feed switch engagement), the "M"... - Page 21 Starting routine can be set. If active, the volts setting. Activ8X Pipe will strike the arc with the set WFS and Voltage and then ramp over the set amount of time to the welding WFS settings are unaffected by limits settings.
- Page 22 Activ8X® Pipe™ OPERATION Setting High Limits: Setup Menu: A short press of the bottom encoder push button will select the menu item that is blinking ("High Limits"). After the press, the From the Settings Menu, and when "Enter Setup Menu" is displayed (and values to be set will blink on the upper seven-segment displays.
- Page 23 Activ8X® Pipe™ OPERATION Advanced Setup Menu The Advanced Setup menu can be entered by pressing the bottom encoder push button and the bottom right "memory" push button simultaneously for 5 seconds when not in the menu system or welding. A press of the right push button exits the advanced setup menu. The "Advanced Setup Menu"...
-
Page 24: Case Front Controls
Activ8X® Pipe™ OPERATION case Front controls 3. Voltage Digital Display - The Activ8X has a digital display that shows the voltage between electrode and work 4. Voltage/Trim Knob - Use the Voltage Knob to set the voltage when connected to a CrossLinc™ Power Source. The voltage will be displayed on the Voltage Digital Display. - Page 25 Activ8X ® Pipe™ OPERATION internal controls 10. 2 Step - Trigger Interlock Switch - The 2 Step - Trigger 1. Pressure Arm Adjustment Knob Interlock switch changes the function of the gun trigger. 2 2. Spool Retainer Step trigger operation turns welding on and off in direct response to the trigger.
-
Page 26: Rear Controls
CAUTION rear controls The serviceability of a product or structure utilizing the Activ8X Pipe wire feeder is and must be the sole responsibility of the builder/user. Many variables beyond the control of The Lincoln Electric Company affect the results obtained in using the Activ8X Pipe wire feeder. These... - Page 27 Activ8X® Pipe™ ACCESSORIES OPTIONS/ACCESSORIES The following options/accessories are available for your Activ8X Pipe from your local Lincoln Electric Distributor. DRIVE ROLL KITS, 2 ROLL DRIVE Steel Wire Drive Roll Kits KP1696-030S .023-.030 (0.6-0.8MM) KP1696-035S .035 (0.9MM) KP1696-045S .045 (1.2MM) INCLUDES: KP1696-052S .052 (1.4MM)
-
Page 28: Optional Kits & Accessories
Activ8X® Pipe™ ACCESSORIES K910-1 & K910-2 Optional Kits & Accessories Work Clamp Jaws open full 2-1/2 inches (63 mm). Welding cable lug bolts K2485-2 Weld Cable Tweco Male to Tweco Female (2/0), 50ft. directly to the work clamp. 60% K2485-3 Weld Cable Tweco Male to Tweco Female (3/0), 50ft. duty cycle. -
Page 29: Maintenance
"hot" to work and ground and could externally should be 245 +/- 2A. The upper displays will show remain energized several seconds after the gun trigger what the Activ8X Pipe believes is the measurement of output is released. voltage and output current. -
Page 30: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING WARNING Service and Repair should only be performed by Lincoln Electric Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual. - Page 31 Activ8X® Pipe™ TROUBLESHOOTING Observe all Safety Guidelines detailed throughout this manual PROBLEM POSSIBLE CAUSE RECOMMENDED COURSE OF ACTION Err 81 Motor overload, long The wire drive motor has 1. Check that the electrode slides easily through the gun and cable. term overheated.
- Page 32 Activ8X® Pipe™ TROUBLESHOOTING Observe all Safety Guidelines detailed throughout this manual POSSIBLE CAUSE RECOMMENDED COURSE OF ACTION PROBLEM Inconsistent wire feeding or 6. Improper gun liner, tip, drive 6. Verify the proper parts are installed. wire not feeding but drive rolls and/or inner wire 7.
- Page 33 Activ8X® Pipe™ DIAGRAMS...
- Page 34 Activ8X® Pipe™ DIAGRAMS...
- Page 35 This page intentionally left blank...
- Page 36 This page intentionally left blank...
- Page 37 This page intentionally left blank...
- Page 38 WARNING Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. electrode with skin or wet clothing. Insulate yourself from work and AVISO DE ground. Spanish PRECAuCION No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el bajo carga con la piel o ropa moja-...
- Page 39 WARNING Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or Use ventilation or exhaust to guards off. remove fumes from breathing zone. AVISO DE Spanish PRECAuCION Los humos fuera de la zona de res- Desconectar el cable de ali- No operar con panel abierto o piración.
- Page 40 We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
