A
1. Adjust the angle and the depth by loosening the two
screws A at the foot plate attachment.
Tool: 5 mm allen key
2. Adjust the foot plate to the correct position.
3. Re-tighten the screws with 10 Nm.
The foot plate can be flipped up. Lift the foot plate
B upwards as shown on the picture above.
Do not place anything on the foot plate when the
screws are loose.

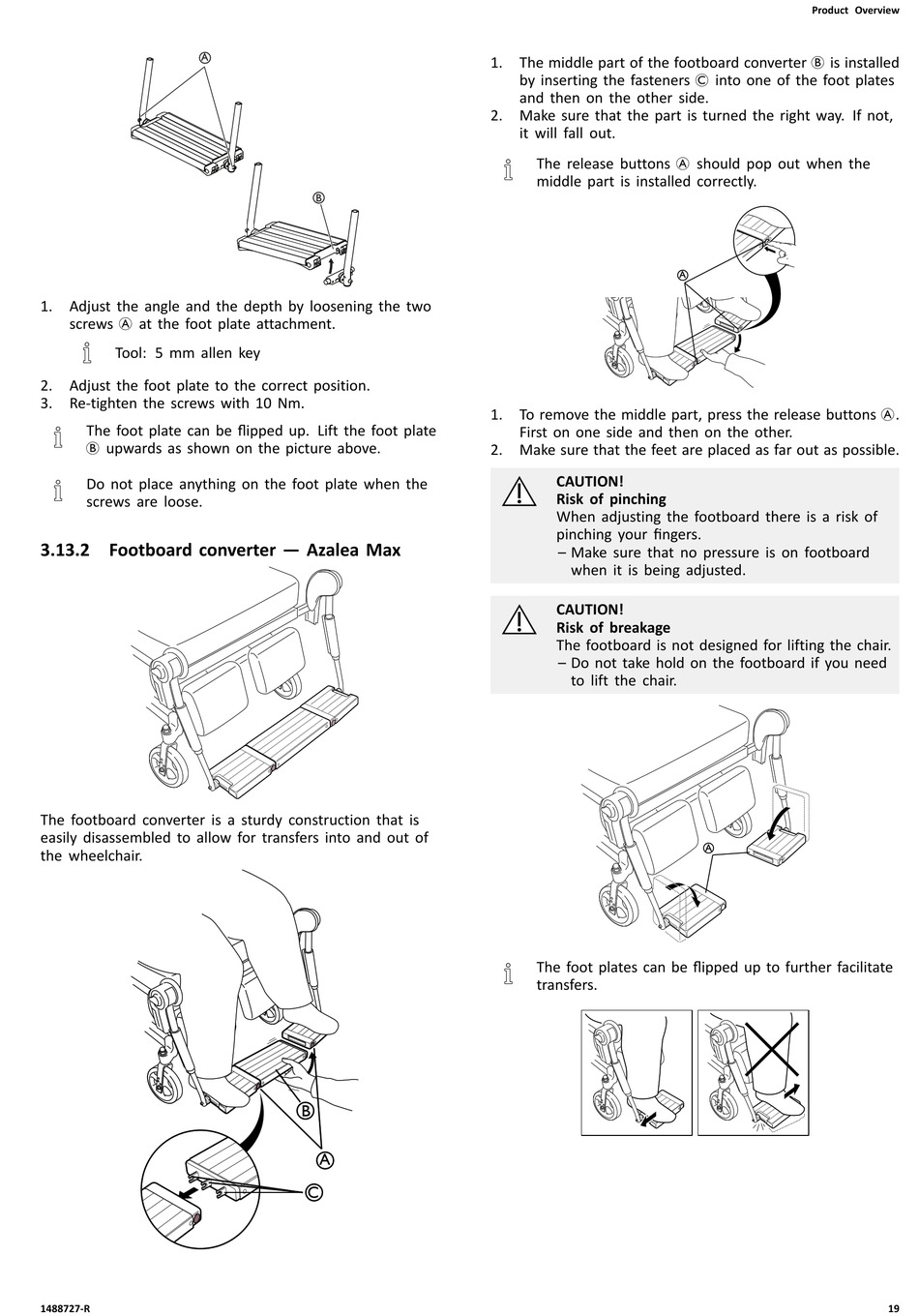

3.13.2 Footboard converter — Azalea Max
The footboard converter is a sturdy construction that is
easily disassembled to allow for transfers into and out of
the wheelchair.
1488727-R
B
B
A
C
1. The middle part of the footboard converter B is installed
by inserting the fasteners C into one of the foot plates
and then on the other side.
2. Make sure that the part is turned the right way. If not,
it will fall out.
The release buttons A should pop out when the
middle part is installed correctly.
1. To remove the middle part, press the release buttons A.
First on one side and then on the other.
2. Make sure that the feet are placed as far out as possible.
CAUTION!
Risk of pinching
When adjusting the footboard there is a risk of
pinching your fingers.
– Make sure that no pressure is on footboard
when it is being adjusted.
CAUTION!
Risk of breakage
The footboard is not designed for lifting the chair.
– Do not take hold on the footboard if you need
to lift the chair.
The foot plates can be flipped up to further facilitate
transfers.
Product Overview
A
A
