Summary of Contents for Sony NAS-Z200IR

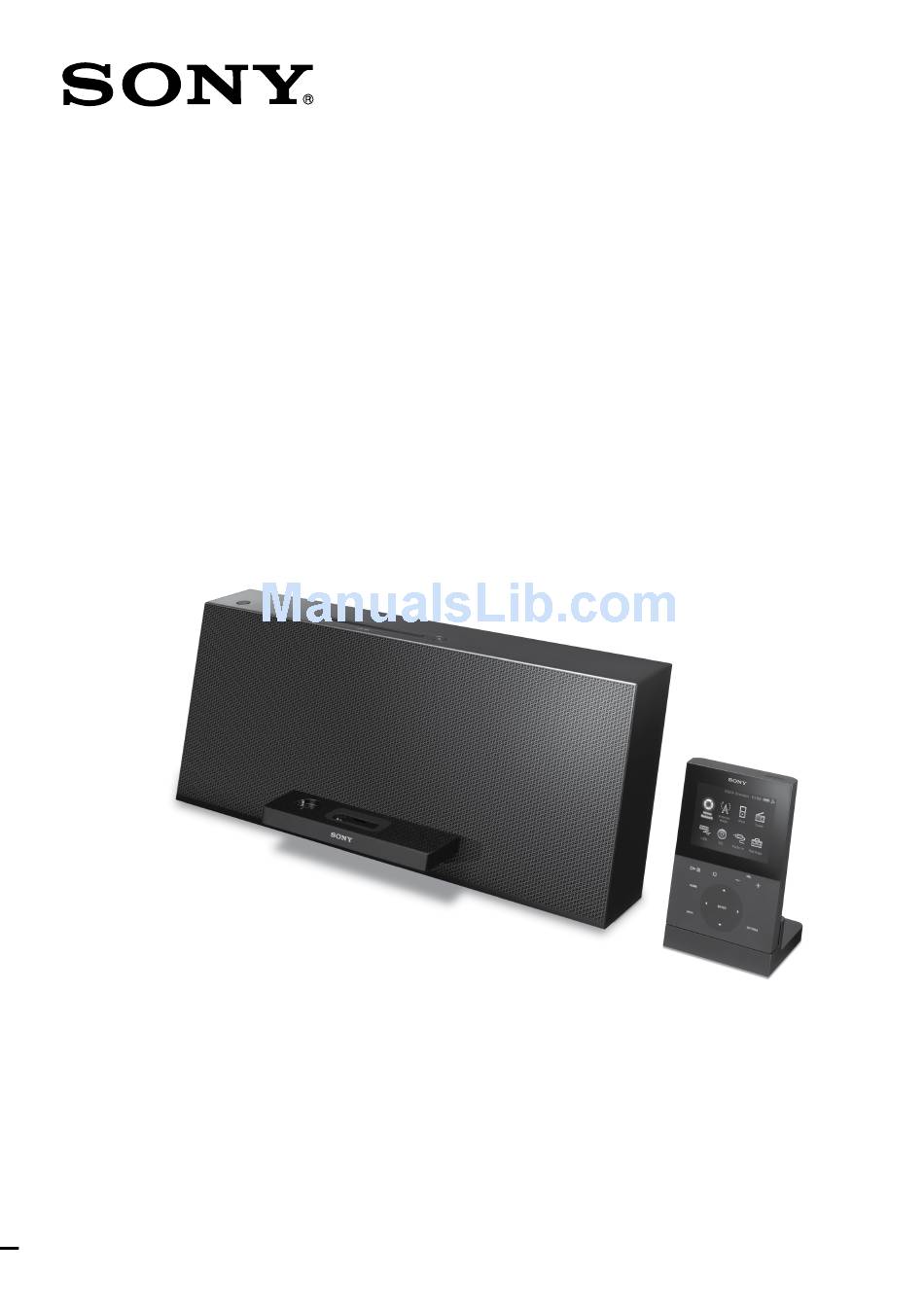

- Page 1 Wireless Network Audio System NAS-Z200DiR/Z200iR Operating Instructions...
- Page 2 The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses given in separate service or guarantee documents.
- Page 3 Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 4: Before Operating This Product
Malfunctions that occur during the normal use of the unit will be repaired by Sony in accordance with the conditions defined in the limited warranty for this unit. However, Sony will not be liable for any consequences arising from a failure to transfer, record or play caused by a damaged or malfunctioning unit. -
Page 5: Table Of Contents
Before operating this product ... 4 Features of this unit ... 7 Checking the supplied accessories ... 8 Guide to parts and controls ...10 Getting started Connecting the unit ...13 Connecting the antennas and power cord (main unit) ... Connecting the AC power adaptor (remote control) ... Using an iPod... - Page 6 Listening to the Internet radio ...33 Playing audio data stored on a computer ...34 Listening to audio material from an external component (Audio In) ...37 Before using a USB device with this unit ...38 Playing audio data stored on a USB device ...39 Transferring or recording audio data to a USB device ...41 Transferring audio data from a disc to a USB device...
-
Page 7: Features Of This Unit
Features of this unit Remote control with large LCD screen The remote control’s two-way communication capability and large LCD screen allows you to view the various information and operation status of the main unit close at hand, while controlling operations. Listening to the audio data stored on a computer (Home Network function) This unit supports the DLNA (Digital Living Network Alliance) standard. -
Page 8: Checking The Supplied Accessories
Remote control (1) Remote control charger (1) AC power adaptor (1) For models except the UK model For the UK model AM loop antenna (1) FM wire antenna (1) DAB wire antenna (1) (for the UK model only) ... - Page 9 This manual explains how to connect the antennas and power cord, install the supplied software, and set up the network connection. “Internet Radio service on NAS-Z200DiR/ Z200iR” leaflet (1) If you find any accessories missing or damaged, please contact your nearest Sony dealer.
-
Page 10: Guide To Parts And Controls
Guide to parts and controls Remote control CHARGE indicator Lights up while the remote control is being charged on the charger. The indicator turns off when charging has completed (page 15). Display window For details on the contents of the display, see page 12. -
Page 11: Main Unit
Main unit CD slot Insert a disc into this slot (page 25). (power) button Turns the power on or off. PHONES jack Use to connect headphones. AUDIO IN jack Use to connect the audio output jack of an external component (page 37). -
Page 12: Display Window
Display window This section introduces display windows that are frequently used. Home menu Appears when you press the HOME button. In this menu, you can select a function with the /// buttons. Press the ENTER button to enter the selected function. General display The figure below is an example of the display when a function is selected. -
Page 13: Getting Started
Getting started Connecting the unit Connecting the antennas and power cord (main unit) DAB wire antenna To a wall outlet FM wire antenna WARNING AM loop antenna DO NOT plug the power cord to a wall outlet until all other connections have been made. - Page 14 Connect the AM loop antenna (aerial). Locate the antenna away from the unit and other AV equipment. Adjust the location and angle for good AM reception. Connect the FM wire antenna (aerial). Adjust the location and angle for good FM reception.
-
Page 15: Connecting The Ac Power Adaptor (Remote Control)
Do not try to change the built-in battery by yourself. If you experience a problem with the built-in battery, contact your nearest Sony dealer. Battery installed devices should not be exposed to excessive heat such as direct sunlight, fire, or the like. -
Page 16: Preparing A Computer To Use As A Server (Vaio Media Plus)
Graphic chip Display Network Sound card Note Sony does not guarantee trouble-free operation on all computers that satisfy the system requirements. Other software operating on background may affect the operation of this software. Windows Vista Intel Core Duo 1.33 GHz or higher (Intel Core 2 Duo 2.26... -
Page 17: Installing The Vaio Media Plus Software On Your Computer
Installing the VAIO Media plus software on your computer To use VAIO Media plus as server software, install the VAIO Media plus software provided on the supplied CD-ROM on your computer. Turn on your computer and login with administrator rights. Insert the supplied VAIO Media plus CD-ROM into the CD-ROM drive of your computer. -
Page 18: Connecting The Unit To Your Home Network (Network Setting)
Connecting the unit to your home network (network setting) After you have installed VAIO Media plus on your computer, carry out the network settings to connect the unit to your computer. If you have any trouble with the network connections, consult the “Troubleshooting” section (page 54). - Page 19 Enter the Network key (security key), and then press and hold ENTER. Enter the exact sequence of letters and numbers that make up your key. Hexadecimal number and ASCII codes can be entered. For details on how to input characters, see “How to enter text”...
-
Page 20: Setting Up The Unit To Connect To Your Home Network Through An Aoss Connection
When you select [Custom] for the Address Setting If you select [Custom] to input the address setting manually (step 7 in the “Setting up the unit to connect to your home network” on page 19), do the following operation. Select [Custom] in step 7 of “Setting up the unit to connect to your home network”... -
Page 21: Setting Up The Unit To Connect To Your Home Network Through The Instant (S-Iws) Connection
Instant (S-IWS) connection If you have the Sony “GIGA JUKE” Music Server and are using Instant (S-IWS) connection to connect to your home network, you can use Instant (S-IWS) connection to set up the wireless network. -
Page 22: Selecting The Display Language
Selecting the display language English, French, German, Italian or Spanish may be selected for the display language. Select [Settings] from the Home menu. Settings menu appears. Select [Remote Control] – [Language]. The display for selecting the language appears. Select the desired language, and then press ENTER. -
Page 23: Setting The Clock
Setting the clock The time must be correctly set on the clock for the correct operation of some features. Do the procedure below to set the clock. Note The unit is factory set to start playing demonstration automatically if no operation is performed for about 60 seconds. -
Page 24: Cancelling Automatic Demonstration
Cancelling automatic demonstration The display on the remote control is factory set to automatically light up and playback demonstration images when the power is turned off. To disable automatic demonstration, do the following. Select [Settings] from the Home menu. Settings menu appears. Select [Common Setting] –... -
Page 25: Operations
Playing a CD This unit can play audio CDs and CD-R/RW discs recorded with MP3 audio tracks. See page 66 for details on playable discs. HOME Select the CD function from the Home menu. Insert a disc in the disc slot. Insert a disc with the label side facing forward. -
Page 26: Other Operations
Other operations Do the following: Stop playback Press . Pause playback Press . Press again to resume playback. Find a point in a Press and hold / during track/file playback, and release it at the desired point. Select a track/file Press /... -
Page 27: Listening To The Radio
Listening to the radio You can tune in FM/AM/DAB* radio stations either manually or automatically. Pre-setting stations or services in advance allows you to recall them by number. DAB* can be received with the UK model only. HOME BACK Selecting an FM/AM/DAB* radio station Select the Tuner function from the... -
Page 28: Home Menu
DAB display Station name Ensemble Label To reduce static noise during reception of a weak FM stereo station If you experience noise in an FM stereo broadcast, press OPTIONS to enter the Options menu and select [Tuner Setting] – [FM Mode] – [Monaural]. The reception will no longer be stereo, but it will be clearer. -
Page 29: Presetting Fm/Am/Dab* Radio Stations
Presetting FM/AM/DAB* radio stations By presetting FM, AM, or DAB* stations, you can easily reselect them by using the corresponding preset number. You can preset up to 20 FM or DAB stations and up to 10 AM stations. Tune in the desired station (see “Selecting an FM/AM/DAB* radio station”... -
Page 30: Playing An Ipod
Playing an iPod You can operate your iPod with the remote control and listen to music and other audio content stored on your iPod. See “iPod models that are compatible with this unit” (page 69) for iPod models that can be connected to this unit. - Page 31 Other operations Do the following: Pause playback Press . Press again to resume playback. Scroll up/down the Press /. You can scroll iPod menus up or down the iPod menus much like the Click Wheel operations of the iPod or the drag up or down operations of the iPod touch.
- Page 32 You cannot connect any other portable audio players. To use an iPod, refer to the operating manual of your iPod. Sony cannot accept responsibility in the event that data recorded on the iPod is lost or damaged when using an iPod with this unit.
-
Page 33: Listening To The Internet Radio
Listening to the Internet radio You can listen to Internet radio broadcasts offered on the Web by Live365 and SHOUTcast on the unit. To listen to the Internet radio, your wireless router/wireless LAN access point has to be connected to the Internet. For details on connecting to the Internet, refer to the supplied leaflet “Setup Guide”, “Connecting the unit to your home network (network setting)”... -
Page 34: Playing Audio Data Stored On A Computer
Playing audio data stored on a computer This unit can play audio data that is stored on a computer that supports the DLNA (Digital Living Network Alliance) standards. Before playing audio data, the supplied VAIO Media plus software must be installed on your computer and the unit must be connected to the computer through a wireless LAN network (wireless router/wireless LAN access point). - Page 35 If the standby mode is set to “Quick Start-up”, the track on the computer that was playing when the unit is turned off will start playing again when the unit is turned on again. (The standby mode is factory set to “Power Save”. To save the information of the last track played even when the unit is turned off, change the standby mode to “Quick Start-up”.
- Page 36 When “Disconnect from the current server. ” appears, select [OK]. The unit is disconnected from the server and a list of servers appears. The icon next to the server name indicates the server type. Icon Server type No icon This is a server you have connected to before and which is presently operating.
-
Page 37: Listening To Audio Material From An External Component (Audio In)
Listening to audio material from an external component (Audio In) You can listen to the playback sound from an external component (such as a cassette deck) connected to the AUDIO IN jack on the unit. To the AUDIO IN jack Audio connecting cable (optional) with stereo mini plug on each end... -
Page 38: Before Using A Usb Device With This Unit
Before using a USB device with this unit For details on the compatible USB devices, refer to the customer support site of Sony Europe, http://support.sony-europe.com/ Notes When USB cable connection is necessary, connect the USB cable supplied with the USB device. Refer to the operating manual supplied with the USB device for details on the operation method. -
Page 39: Playing Audio Data Stored On A Usb Device
Playing audio data stored on a USB device You can connect a USB device to the unit and listen to the audio data stored on the USB device. The following audio formats can be played back by this unit. MP3 (“.mp3”)* WMA (“.wma”)* AAC other than HE AAC (“.m4a”, “.3gp”, “.mp4”*... - Page 40 To change the play mode You can change the play mode while playback is stopped. Press OPTIONS to enter the Options menu, select [Play Mode], and then select the desired play mode. Play mode Description Continue The unit plays all of the files in the USB device in sequential order.
-
Page 41: Transferring Or Recording Audio Data To A Usb Device
Transferring or recording audio data to a USB device You can connect an optional USB device to the (USB) connector on the unit and transfer/record audio data to the USB device. HOME To select the memory on the USB device For some USB devices, you may have to select the memory (i.e., internal memory or memory... -
Page 42: Transferring Audio Data From A Disc To A Usb Device
Transferring audio data from a disc to a USB device You can transfer audio data from an audio CD (CD-DA) or MP3 disc only. The amount of free space required on the USB device is about 1 MB per minute when transferring audio data from an audio CD. -
Page 43: Recording Audio Material To A Usb Device
Folder and file generation rules When first transferring audio data to the USB device, a “MUSIC” folder is created directly below the “ROOT” folder. Folders and files are generated within this “MUSIC” folder as follows. CD SYNC Source Folder name File name Same as the source* CD-DA... -
Page 44: To Stop Recording
Select [Record to USB]. A confirmation message appears and the USB device stands by for recording. Note It may take a while for the USB device to be ready for recording. Therefore, it is recommended that you allow enough time not to miss any recording opportunity, especially when recording from the tuner. -
Page 45: Setting The Sound Quality
Setting the sound quality HOME BACK Selecting a sound style You can select the sound style from six preset equalizer settings to match the genre of music. Select [Settings] from the Home menu. Select [Sound] – [Sound Effects]. Select the sound style. You can select the style from [Standard]* [Dynamic], [Relax], [Vivid], [Live], or [Off]. -
Page 46: Using The Timer
Using the timer HOME BACK Using the Sleep Timer You can set the Sleep Timer so that the unit enters standby mode automatically after a certain period of time (Sleep Timer function). This function operates even if the clock is not set. Select [Settings] from the Home menu. -
Page 47: Using The Play Timer
Using the Play Timer You can set the Play Timer to start playing a radio program, an iPod, a USB device, or a CD at a specified time (Play Timer function). Make sure you have set the clock. Prepare the sound source. Select the sound source (radio, iPod, USB device, or CD), and then press +/–... -
Page 48: Viewing The Unit's Information
Viewing the unit’s information You can view the various settings. To view the settings, do the following operation. HOME BACK Select [Settings] from the Home menu. Select [Device Information]. Select the item you want to view. Item Description My Name This is the name that is set for this unit and is displayed on the server. -
Page 49: Setting The Standby Mode
Setting the standby mode You can select the power status of the unit while it is in standby mode. HOME BACK Select [Settings] from the Home menu. Select [Standby Mode]. Select [Power Save] or [Quick Start- up]. Power Save With this setting, the unit ... -
Page 50: Changing The Remote Control Settings
Changing the remote control settings HOME BACK Changing the display brightness You can change the brightness of the display on the remote control. Select [Settings] from the Home menu. Select [Remote Control] – [Brightness]. Set a brightness level of 1 to 5. The factory setting is level 3. -
Page 51: Turning Off The Beep Sound
To set the backlight status when the remote control is not on the charger Select [Settings] from the Home menu. Select [Remote Control] – [Backlight Timer]. Select [Off-charger]. Select [30 seconds], [60 seconds]* [90 seconds]. The backlight turns off after the selected duration has elapsed. -
Page 52: Troubleshooting
Troubleshooting If a problem occurs while operating the unit, follow the steps described below before consulting your nearest Sony dealer. If an error message appears, it is recommended that you make a note of its contents for reference. Check to see if the problem is listed in this “Troubleshooting”... - Page 53 If the usage time of the built-in battery becomes excessively short after charging, the battery may have deteriorated. In such a case, contact your nearest Sony dealer. The remote control does not work. An inverter circuit for a fluorescent lamp is near the unit.
- Page 54 VAIO Media plus The installation was not successful. The OS does not support this software (page 16). There is not enough free space on your hard disk (page 16). The installation appears to have stopped before completion. Check for an error message underneath the installation window.
- Page 55 AOSS setup again. Instant (S-IWS) connection You cannot set up an Instant (S-IWS) connection without the Instant (S-IWS)-compatible Sony wireless station (supplied with Sony “GIGA JUKE” Music Server). For troubleshooting related to Instant (S-IWS) connection, refer to the operating instructions supplied with your “GIGA JUKE”...
- Page 56 When the FM broadcast is received in stereo, switch the reception to monaural (page 28). Consult your nearest Sony dealer if the supplied AM loop antenna has come off the plastic stand. RDS is not working. Make sure that you tune in an FM station.
- Page 57 The remote control does not function. Make sure the iPod is updated with the latest software. If not, update the iPod before using with the unit. The iPod cannot be charged. Make sure the iPod is connected securely. ...
- Page 58 Make sure that the computer is turned on. Check the following conditions to confirm that the unit and the computer are properly prepared: The server has started. This unit has been registered. You cannot play audio data normally. ...
- Page 59 If this does not solve the problem, the USB device may be damaged. Refer to the operating manual of the USB device for how to deal with this problem. If the problem persists, contact your nearest Sony dealer.
- Page 60 USB device may be damaged. Refer to the operating manual of the USB device for how to deal with this problem. If the problem persists, contact your nearest Sony dealer. There is no sound. The USB device is not connected correctly. Turn off the unit, turn on the unit again, and then reconnect the USB device.
-
Page 61: The Unit
If you use partitioned USB device, only MP3, WMA and AAC tracks on the first partition can be played. Playback is possible up to 8 levels. The number of folders on the USB device has exceeded 1,000. ... -
Page 62: Messages
Loading (iPod) The unit is reading information from the iPod. LOCKED (CD) The disc cannot be ejected. Contact your Sony dealer or local authorized Sony service facility. No Disc (CD) There is no disc in the unit, or you have loaded a disc that cannot be played. -
Page 63: Precautions/Specifications
Precautions On safety Completely disconnect the power cord (mains lead) from the wall socket (mains) if it is not going to be used for an extended period of time. When unplugging the unit, always grip the plug. Never pull the cord itself. - Page 64 Slide and remove the battery compartment lid as shown below. Battery compartment lid Remove the two screws from the metal sheet. The battery is stored under the metal sheet. Metal sheet Remove the metal sheet and the built-in battery. The battery is attached to the metal sheet by adhesive tape.
- Page 65 Consideration for others Keep the volume at a moderate level out of consideration of your neighbors, especially at night. Notice for touch panel operations on the remote control The touch panel of the remote control does not work properly when operated with: a gloved finger.
-
Page 66: About Cds
About CDs The unit CAN play the following discs Audio CDs: MP3 files: CD-Rs and CD-RWs (recorded in a format conforming to the ISO 9660 Level 1 or 2, or Joliet standards). Multisession CDs are supported. Notes When using a multisession disc with an audio CD format, only tracks recorded in the first session can be played. -
Page 67: Specifications
Specifications Wireless LAN section Compatible standards: IEEE 802.11 b/g (WEP 64 bit/ WEP 128 bit/WPA-PSK TKIP/ WPA2-PSK AES) Radio frequency: 2.4 GHz Amplifier section Power output (rated): 16 W + 16 W (at 8 , 1 kHz, 1% THD) RMS output power (reference): 20 W + 20 W (at 8 , 1 kHz, 10 % THD) CD player section... - Page 68 Frequency Label 230.784 MHz 232.496 MHz 234.208 MHz 235.776 MHz 237.488 MHz 239.200 MHz Inputs/Outputs Antenna terminals: 75 unbalanced External antenna terminal DAB*: 75 unbalanced AUDIO IN jack: Stereo mini jack Voltage 0.8 V (USB) connector: USB type A for connecting USB devices iPod dock: Output voltage: DC 5 V...
-
Page 69: Ipod Models That Are Compatible With This Unit
iPod models that are compatible with this unit You can use the following iPod models on this unit. Update your iPod with the latest software before using iPod touch 2nd generation iPod classic iPod 4th generation (color display) iPod nano 4th iPod touch 1st generation generation... -
Page 70: Installing The Unit On The Wall
Only qualified service personnel should carry out wall installations. For safety reasons, it is strongly recommended that you use Sony accessories, including: — Wall-mount bracket SU-WL100 It is strongly recommended that you use a Sony Wall-mount bracket in order to provide adequante air-circulation. - Page 71 Adjust the position of the holders of the Base Plate. Remove the screws that secure the left and right holders to the Base Plate and move the holders to the inner position. Firmly secure each holder using the screws removed in the previous procedure . Holder Note When using an electric screwdriver, set the torque setting to approximately 1.5 N.m (15 kgf.cm).
-
Page 72: Installation Location
See “System installation dimensions diagram” (page 77), to determine the installation location. Allow for suitable clearance between the unit, ceiling and any protruding wall parts as shown below. Never install the unit set as shown below: Air circulation is blocked. Wall Air circulation is blocked. - Page 73 Secure the Base Plate to the wall using 4 or more 6 mm diameter or equivalent screws (not supplied). Select 4 screw holes with the mark shown in the diagram below and tighten the screws securely so that they will not become loose. Secure the Base Plate so that it is level.
- Page 74 Secure the two Mounting Hook to the rear of the unit. Secure the Mounting Hook to the rear of the unit temporarily, using the 4 screws (+PSW4 × 12) supplied with the Wall-mount bracket SU-WL100. Be sure that screws are tightened securely with equal torque strength to the rear of the unit. CAUTION Be sure not to use any screws other than the ones supplied (+PSW4 ×...
- Page 75 Install the unit onto the Base Plate. Determine the holes of the Base Plate for latching the upper hooks of the Mounting Hook. Hold the unit securely with both hands, and gently align it on the wall. Mounting Hook Holder Mounting Hook Base Plate...
- Page 76 Firmly secure the unit and the Base Plate using the 2 supplied screws (+PSW4 × 12). Secure the screws to the angle mark 0. Note When using an electric screwdriver, set to torque setting to approximately 1.5N.m (15 kgf.cm). WARNING Be sure to tighten both left and right securing screws firmly.
-
Page 77: System Installation Dimensions Diagram
System installation dimensions diagram The diagram below shows the dimensions of the unit that is mounted on the Wall-mount bracket SU- WL100. Refer to the diagram below to determine the installation location. Unit: mm Center point Figures in the above diagram may differ slightly depending on the installation. -
Page 78: Glossary
Glossary AOSS AOSS is an abbreviation of “AirStation One-Touch Secure System”. AOSS is a technology developed by BUFFALO that simplifies connections and settings for wireless network. Bit rate The bit rate is a measure of data volume expressed in bits per second (bps). - Page 79 ADSL and CATV networks have been introduced. The term “router” by itself may refer to any of these devices. S-IWS S-IWS is an abbreviation of Sony Instant Wireless Audio Setup. Instant (S-IWS) connection allows you to set up a wireless network easily. SSID Abbreviation of Service Set IDentifier.
-
Page 80: Index
Index AAC 39 AM loop antenna 8, 14 Audio CD 25 Audio format 39, 43 Audio In Playback 37 Record 43 Auto tuning 27 Beep 51 Bit rate 39, 43, 78 Playback 25 Record 42 CD-R/RW 25 Clock 23 Computer 16, 34 Connections Antennas 13 Audio In 37... - Page 81 Radio DAB 27 FM/AM 27 Remote control 10, 50 Backlight 50 Beep 51 Brightness 50 Charge 15 Connection 15 Repeat play CD 26 Home Network 35 iPod 31 USB 40 Server 34 Changing a server 35 Edit the server list 36 Server type 36 Settings menu 12 SHOUTcast 33...
- Page 82 This software is based in part on the work of the Independent JPEG Group. VAIO, , and VAIO Media are registered trademarks of Sony Corporation. US and foreign patents licensed from Dolby Laboratories. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
- Page 83 Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners. The system names and product names indicated in this manual are generally the trademarks or registered trademarks of the manufacturer.
- Page 84 © 2009 Sony Corporation / Printed in China 4-151-738-12(1)
