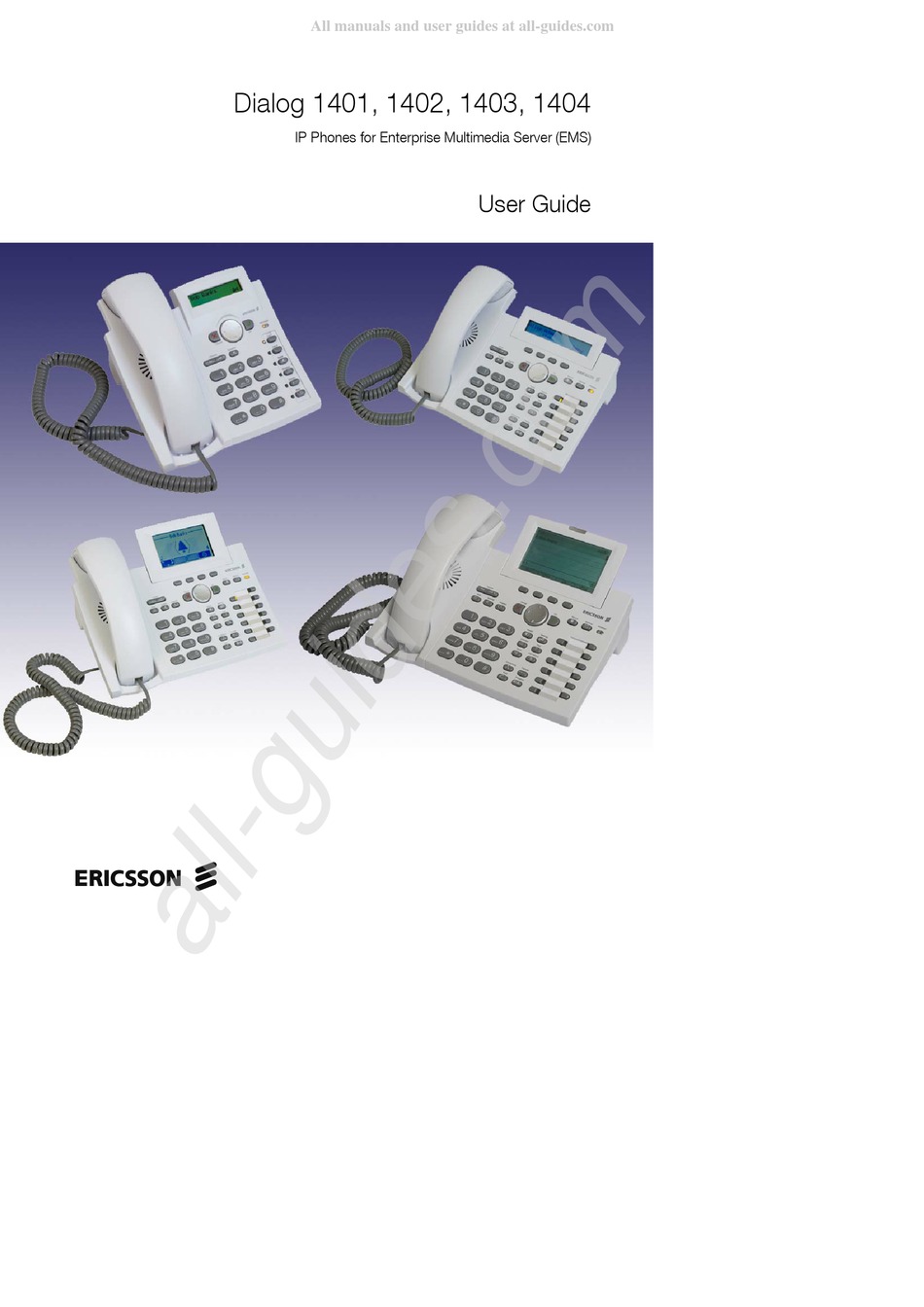

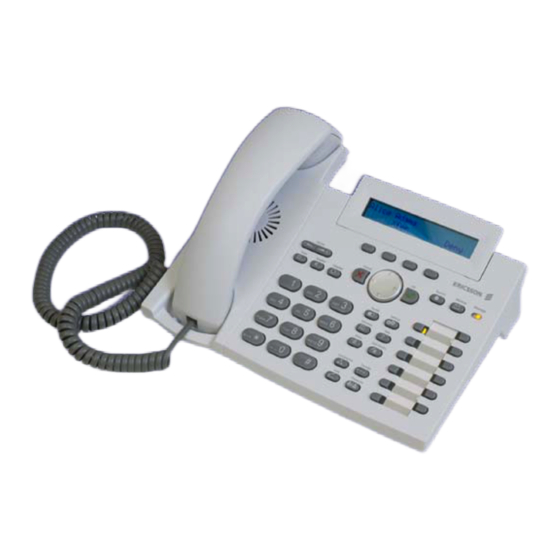

All manuals and user guides at all-guides.com Dialog 1401, 1402, 1403, 1404 IP Phones for Enterprise Multimedia Server (EMS) User Guide Cover Page Graphic Place the graphic directly on the page, do not care about putting it in the text flow. Select Graphics > Properties and make the following settings: •...
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Table of Contents Welcome .......................
Page 4
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h ...
Page 5
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Voice Mailbox .....................
Page 6
All manuals and user guides at all-guides.com...
The user guide describes the functions and features of the Ericsson Dialog 140x VoIP phones as they are programmed for delivery from the factory. There may be some differences in the way your phone is programmed.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Important User Information Important User Information 2 •...
Page 12
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h The main hardware components of your Dialog1402 VoIP phone are: See page 9 Display...
Page 14
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h The main hardware components of your Dialog1404 VoIP phone are: See page 9 Display...
Use the alphanumeric keys to enter numbers, letters and special characters on the phone. Depending on the selected input mode (see page 37) you can enter digits, lower / upper case or special characters. Input mode Dialog 1401 - Dialog 1402 - Dialog 1403 - Dialog 1404 Digits Upper case Special Characters...
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h (2d) Free Function Keys The free function keys are freely programmable keys which can be used for various functionalities.
E n g l i s h (2e) Preprogrammed Function Keys The preprogrammed function keys are preprogrammed as labeled. Note: Dialog 1401 only: The adjacent LED3 and LED4 will not light up when the assigned functionality is turned on. The following functions are mapped onto them:...
Page 20
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Dialog 1402 Dialog 1403 Function...
• Multilingual User Guide settings Note: For a complete set of user manuals please refer to: http://www.ericsson.com/solutions/enterprise/library/manuals.shtml The Portable Document Format (PDF) is a cross-platform, open file format for documents. German, English, Spanish, French, Italian, Danish, Swedish, Dutch, Norwegian Getting Started...
Note: The phone can be powered either from the network (PoE: IEEE 802.3 af) or from a 5 V DC power adapter. Only use applicable 5 V DC adapters (power supplies) listed below or an adapter approved by your local reseller. Ericsson product number Power rating RES 141 317/1...
Auto Provisioning The phone receives its general and specific configuration settings, for example language, time zone, tone scheme, extension (SIP identity), etc. from the Ericsson Enterprise Multimedia Server (EMS). Note: If any of the automatic initialization steps fails, please inform your system administrator.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Registration Idle Screen After a successful initialization the idle screen appears on the display as shown...
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Phone Configuration Phone Configuration 2 2 •...
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Menu Structure The following three-level menu structure can be...
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Backlight Mode You can adjust the phone’s display backlight behavior.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Headset Use Physically connect your headset (see page 18) and activate / deactivate it for use.
Page 36
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Playback Action: Play back the currently activated ring tone.
Free Function Keys (see page 12). Note: The key type mapping has to be configured via the web interface of the Ericsson Enterprise Multimedia Server (EMS). For further informations regarding the configuration refer to the Enterprise Communication Assistant – Web User Guide.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Reboot Note: You should reboot the phone only when you are forced to.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Basic Call Functions Basic Call Functions 3 6 •...
Page 44
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Input Mode The default input mode is the numeric mode.
Page 46
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Alphanumeric Mode (Upper Case) to Numeric Mode Action: Change input mode from alphanumeric (upper case) to numeric mode Dialog1401...
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Call Termination Action: Terminate a call.
This call function allows you to establish calls successfully when the other party is busy or not answering. Note: The “Call Back” feature is provided by the Ericsson Enterprise Multime- dia Server (EMS). For further information contact your system administrator.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Accepting Incoming Calls Action: Accept an incoming call Dialog1401...
Page 54
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Dialog1401 Dialog1402 Dialog1403...
This feature allows you to forward an incoming call to another phone number, for example a cell phone or voice mailbox. Note: The “Call Forwarding” feature is provided by the Ericsson Enterprise Multimedia Server (EMS). For further information regarding this feature refer to the Enterprise Communication Assistant –...
Page 58
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h You may either opt to stay in handsfree mode by replacing the handset or return to handset mode by pressing or switch to headset mode:...
Page 60
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Unmute Action: Unmute the microphone of the current audio device during a call.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Call Statistic Information Action: Obtain further information regarding the active call.
Page 64
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Resume Action: Resume a held call Dialog1401...
Page 66
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Attended Call Transfer Action: Perform an “Attended Transfer”...
Page 68
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Disconnecting Action: Disconnect from a three party conference.
Call Recording You can record personal messages and conversation during active calls. The re- cordings are available as voice messages on your Ericsson Multimedia Server (EMS). To listen to your call recordings log in to the Enterprise Communication As- sistant - Web.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Advanced Phone Functions Advanced Phone Functions 6 4 •...
. You will be prompted to enter the account password. Result: You will be registered as a new user on the Ericsson Enterprise Multimedia Server (EMS) with your account details. This process requires you (the account holder) to enter your password.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Call History Your phone can access centrally hosted history of missed, received, and dialed calls.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Presence Changing Your Presence State This functionality allows you to change your presence (availability) state.
U s e r G u i d e E n g l i s h Voice Mailbox Your voice mailbox messages, which are stored on the Ericsson Enterprise Multi- media Server (EMS), can be accessed from your phone. Indication of New Messages New voice messages will be indicated visually by blinking “Message LED”...
Confirm with abort with Result: The voice mailbox extension configured on your Ericsson Multimedia Serv- er (EMS) is called. A voice prompt will guide you through the mailbox menu and you are able to listen to your new and old messages or to delete them.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Calls List Action: Check the call status of other phones - assigned to your call group or or- ganization respectively - using the Calls List feature.
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h XML Menu Navigation Functionality Dialog1402...
All manuals and user guides at all-guides.com D i a l o g 1 4 0 x V o I P P h o n e s U s e r G u i d e E n g l i s h Status Indicators SIP Status Indicators Status...
E n g l i s h FCC Statement For Ericsson Dialog140x VoIP phones This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules.
