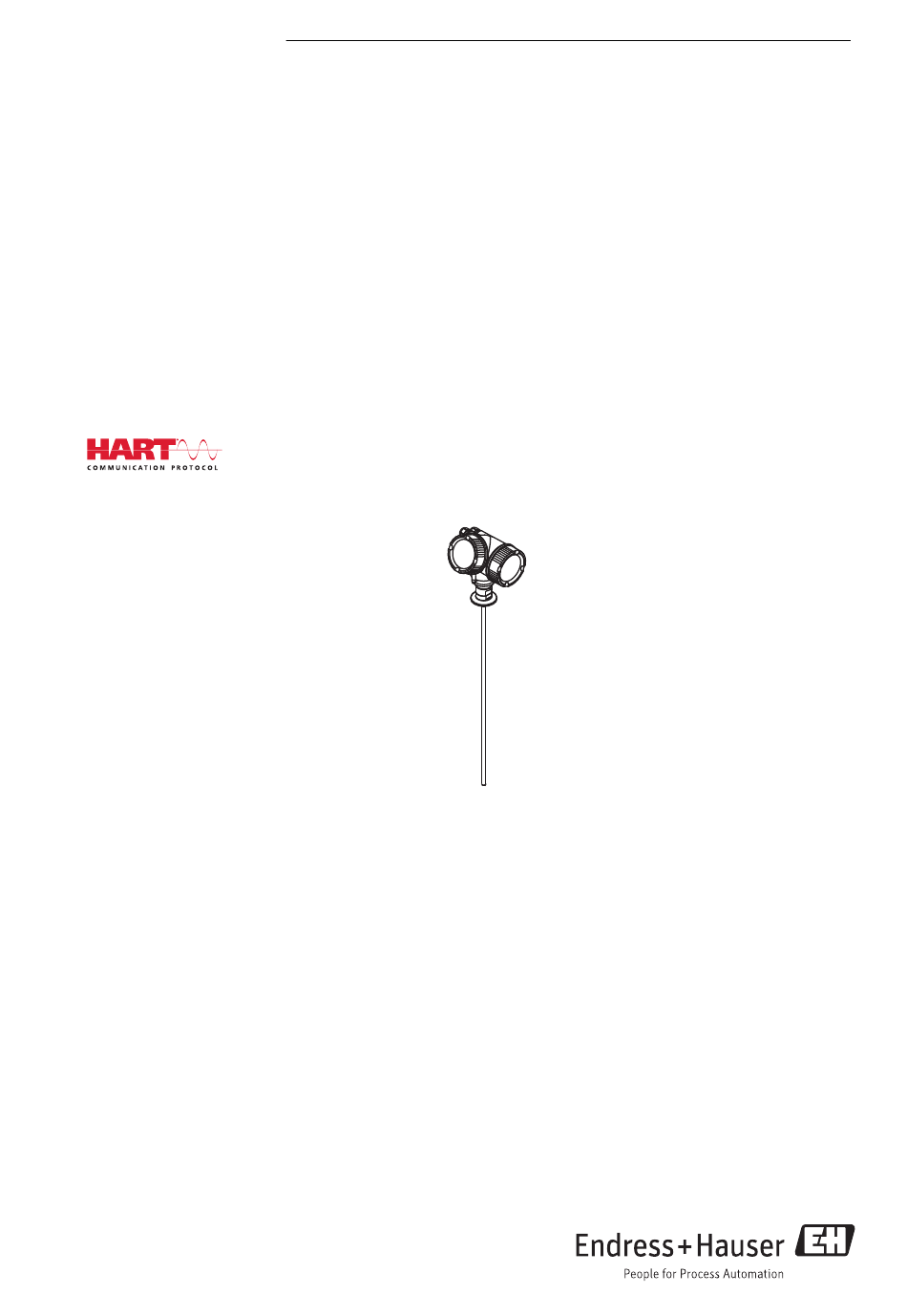

Brief Operating Instructions
Levelflex FMP53
HART
Guided Level Radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Description of the procedure (→ 12)
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Endress+Hauser
Summary of Contents for Endress+Hauser Endress+Hauser
- Page 1 Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App Description of the procedure (→ 12)
-
Page 2: Table Of Contents
User-specific applications ............. . . 55 Endress+Hauser... -
Page 3: Important Document Information
A terminal which must be connected to ground prior to establishing any other connections. A0011199 Equipotential connection A connection that has to be connected to the plant grounding system: This may be a potential equalization line or a star grounding system depending on national or company codes of practice. A0011201 Endress+Hauser... - Page 4 Refers to the corresponding graphic number and page number. A0011196 Series of steps … Result of a sequence of actions 1.1.5 Symbols in graphics Symbol Meaning 1, 2, 3 ... Item numbers Series of steps … A, B, C, ... Views A-A, B-B, C-C, ... Sections Endress+Hauser...
- Page 5 Indicates a non-hazardous location. A0011188 1.1.6 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables. Endress+Hauser...
-
Page 6: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability. -
Page 7: Workplace Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser... -
Page 8: Product Description
Product description Levelflex FMP53 HART Product description Design 3.1.1 Levelflex FMP53 A0013421 1 Design of the Levelflex Electronics housing Process connection Rod probe Endress+Hauser... - Page 9 Electronics housing A0012422 2 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module Terminals (pluggable spring terminals) Connection compartment cover Grounding terminal Endress+Hauser...
-
Page 10: Incoming Acceptance And Product Identification
DELIVERY NOTE information on the delivery A0015502 note? A0022491 Is the DVD (operating tool) present? If required (see nameplate): A0015502 Are the Safety Instructions (XA) present? A0022494 If one of the conditions does not comply, contact your Endress+Hauser distributor. Endress+Hauser... -
Page 11: Product Identification
): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed. -
Page 12: Device Documentation
All the associated documentation is displayed. 4.3.2 Endress+Hauser Operations App The Endress+Hauser Operations App is available both for android smart phones (Google Play Store) and for iPhones and iPads (App Store). Via the serial number: Launch the Endress+Hauser Operations App. -
Page 13: Storage, Transport
Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the probe but at the process connection. Take into account the mass center of the device in order to avoid unintended tilting. ‣ Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs). A0014267 Endress+Hauser... -
Page 14: Mounting
– for plastic walls: > 300 mm (12") mm to metallic parts outside the vessel • Distance (B) between rod probe and internal fittings (3) in the vessel: > 300 mm (12") • Distance (C) from end of probe to bottom of the vessel: > 10 mm (0.4 in). Endress+Hauser... - Page 15 When mounting the electronics housing into a recess (e.g. in a concrete ceiling), observe a minimum distance of 100 mm (4 inch) between the cover of the terminal compartment / electronics compartment and the wall. Otherwise the connection compartment / electronics compartment is not accessible after installation. Endress+Hauser...
- Page 16 To measure, Levelflex with a rod or rope probe needs a metallic surface at the process connection. Therefore: Mount a metal sheet with a diameter of at least 200 mm (8") to the probe at the process connection. Its orientation must be perpendicular to the probe. Endress+Hauser...
- Page 17 Its orientation must be perpendicular to the probe (see above). Calibration for external probe mounting If the probe is mounted externally at the wall of the tank, the speed of signal propagation will be reduced. There are two possibilities to compensate for this effect. Endress+Hauser...
- Page 18 Increase parameter value by "(Measured probe length)/ (Actual probe length)". Setup → Advanced setup → Probe settings Select the Manual input option. → Prob.length corr → Confirm length Setup → Advanced setup → Probe settings Enter measured probe length. → Prob.length corr → Pres. length Endress+Hauser...
-
Page 19: Mounting The Device
Levelflex FMP53 HART Mounting Mounting the device 6.2.1 Required mounting tools • To shorten rod or coax probes: Saw • For flanges and other process connections: appropriate mounting tools • To turn the housing: Hexagonal wrench 8 mm Endress+Hauser... - Page 20 Torque for the coupling nut at the elctronics housing: 6 Nm ‣ Torque for the coupling nut at the probe: 20 Nm If the meeasuring point is exposed to strong vibrations, an additional locking compound (e.g. Loctite 243) can be applied at the plug connector of the electronics housing. Endress+Hauser...
- Page 21 Levelflex FMP53 HART Mounting Mounting the electronics housing 122 (4.8) 140 (5.5) 175 (6.9) 158 (6.2) mm (inch) A0014793 5 Mounting the electronics housing using the mounting bracket Wall mounting Pipe mounting Endress+Hauser...
- Page 22 • For the coupling nut at the probe side of the cable: 54mm (2.1") hook wrench and 27 mm (1-1/16") open-end wrench 6 Nm (4.42 lbf ft) 3 m (9 ft) / 6 m (19 ft) = 50 mm (2") A0015103 Endress+Hauser...
- Page 23 350° 8 mm 8 mm A0013713 Unscrew the securing screw using an open-ended wrench. Rotate the housing in the desired direction. Tighten the securing screw (1,5 Nm for plastics housing; 2,5 Nm for aluminium or stainless steel housing). Endress+Hauser...
- Page 24 Feed the spiral cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Screw the cover of the electronics compartment firmly back onto the transmitter housing. Tighten the securing clamp again using the Allen key (Torque: 2.5 Nm). Endress+Hauser...
-
Page 25: Post-Installation Check
• Process pressure (refer to the chapter on "Material load curves" of the "Technical Information" document) • Ambient temperature range • Measuring range Are the measuring point identification and labeling correct (visual inspection)? Is the device adequately protected from precipitation and direct sunlight? Are the securing screw and securing clamp tightened securely? Endress+Hauser... -
Page 26: Electrical Connection
4...20 mA – – 4...20 mA A0011294 6 Terminal assignment 2-wire; 4-20mA HART Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥250 Ω): Observe maximum load Endress+Hauser... - Page 27 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display device: Observe maximum load Cable screen; observe cable specification 4-20mA HART (passive): Terminals 1 and 2 Overvoltage protection module Terminal for potential equalization line Cable entry Endress+Hauser...
-
Page 28: Connection For Commubox Fxa195 Or Fieldxpert Sfx350/Sfx370 (Via Viator Bluetooth Modem)
Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display device: Observe maximum load Cable screen; observe cable specification 4-20mA HART (passive): Terminals 1 and 2 Switch output (open collector): Terminals 3 and 4 Terminal for potential equalization line Endress+Hauser... -
Page 29: Overvoltage Protection Module
Levelflex FMP53 HART Electrical connection Cable entry for 4-20mA HART line Cable entry for switch output line Overvoltage protection module Endress+Hauser... - Page 30 Without integrated overvoltage protection With integrated overvoltage protection Connection current output 2 Connection current output 1 Supply voltage for current output 1 (e.g. RN221N); Observe terminal voltage Cable screen; observe cable specification HART communication resistor (≥ 250 Ω): Observe maximum load Endress+Hauser...
-
Page 31: Terminal For Potential Equalization Line
Terminal for the potential equalization line Cable entry for current output 1 Cable entry for current output 2 This version is also suited for single-channel operation. In this case, current output 1 (terminals 1 and 2) must be used. Endress+Hauser... - Page 32 Supply voltage: Observe terminal voltage, observe cable specification Terminal for potential equalization Cable entry for signal line Cable entry for power supply CAUTION To ensure electrical safety: ‣ Do not disconnect the protective connection (6). ‣ Disconnect the supply voltage before disconnecting the protective earth (7). Endress+Hauser...
- Page 33 (flange or threaded connection) or to the external ground terminal. An easily accessible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/EN61010). Endress+Hauser...
- Page 34 Supply voltage: Observe terminal voltage, observe cable specification Terminal for potential equalization Cable entry for signal line Cable entry for power supply CAUTION To ensure electrical safety: ‣ Do not disconnect the protective connection (6). ‣ Disconnect the supply voltage before disconnecting the protective earth (7). Endress+Hauser...
- Page 35 (flange or threaded connection) or to the external ground terminal. An easily accessible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/EN61010). Endress+Hauser...
- Page 36 • Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with mounting rail connector UMK-1 OM-R/AMS • Electromechanical relay: Phoenix Contact PLC-RSC-12DC/21 For optimum interference immunity we recommend to connect an external resistor (internal resistance of the relay or Pull-up resistor) of < 1 000 Ω. Endress+Hauser...
- Page 37 • A normal device cable suffices if only the analog signal is used. • A shielded cable is recommended if using the HART protocol. Observe grounding concept of the plant. • For 4-wire devices: Standard device cable is sufficient for the power line. Endress+Hauser...
- Page 38 For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal + not connected Signal - Ground A0011175 Pin assignment of the 7/8" plug connector Meaning Signal - Signal + Not connected Screen A0011176 Endress+Hauser...
- Page 39 I ≥ 4,5 mA (HART multidrop mode), a voltage of U ≥ 11,5 V is sufficient throughout the entire range of ambient temperatures. For ambient temperatures T ≤ -20 °C (-4 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6 mA). Endress+Hauser...
- Page 40 Feature 020 of the product structure Feature 010 of the product structure For ambient temperatures T ≤ -30 °C (-22 °F) a minimum voltage of 14 V is required for the startup of the device at the MIN error current (3.6 mA). Endress+Hauser...
- Page 41 ≤ -30 °C (-22 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6 mA). Polarity reversal protection Admissible residual ripple < 1 V at f = 0 to 100 Hz Admissible residual ripple < 10 mV at f = 100 to 10000 Hz Endress+Hauser...
- Page 42 "Power supply; Output" Terminal voltage Maximum load R K: 4-wire 90-253VAC; 4-20mA HART 90 to 253 V (50 to 60 Hz), overvoltage category II 500 Ω L: 4-wire 10,4-48VDC; 4-20mA HART 10.4 to 48 V Feature 020 of the product structure Endress+Hauser...
- Page 43 < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...
-
Page 44: Connecting The Device
Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry. Strip the cable. Strip the cable ends 10 mm (0.4 in). For stranded cables, also attach wire end ferrules. Firmly tighten the cable glands. Endress+Hauser... - Page 45 When using screened cable: Connect the cable screen to the ground terminal. Screw the cover onto the connection compartment. 10. For instruments with safety pin for the lid: Adjust the safety pin so that its edge is over the edge of the display lid. Tighten the safety pin. Endress+Hauser...
- Page 46 To remove cables from the terminal: Press on the groove between the terminals using a flat- tip screwdriver ≤ 3 mm (0.12 inch) while pulling the cables out of the terminals. ≤ 3 (0.12) mm (in) A0013661 Endress+Hauser...
-
Page 47: Post-Connection Check
If required: Is the protective earth connected correctly (→ 26)? If supply voltage is present: Is the device ready for operation and do values appear on the display module? Are all housing covers installed and firmly tightened? Is the securing clamp tightened correctly? Endress+Hauser... -
Page 48: Commissioning (Via Operating Menu)
Representation of a parameter (here: a parameter with selection list) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Selection list; marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser... - Page 49 Reduces the contrast (brighter setting). A0013953 Plus/Enter key combination (press and hold down the keys simultaneously) Increases the contrast (darker setting). A0013954 Minus/Plus/Enter key combination (press and hold down the keys simultaneously) For measured value display A0013955 Enables or disables the keypad lock. Endress+Hauser...
- Page 50 The context menu is closed and the operational display appears. Calling up the menu via the context menu Open the context menu. Press to navigate to the desired menu. Press to confirm the selection. The selected menu opens. Endress+Hauser...
-
Page 51: Operating Menu
In case of operation via operating tools (e.g. FieldCare), the "Language" parameter is located at "Setup→Advanced setup→Display" On entering the "Expert" menu, an access code is always requested. If a customer specific access code has not been defined, "0000" has to be entered. Endress+Hauser... -
Page 52: Unlock The Device
X X X X X X X 20.50 Main menu 0104-1 Language English Display/operat. Setup Language 0104-1 English à Deutsch Español Français Language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Anzeige/Betrieb Setup A0013996 14 Taking the example of the local display Endress+Hauser... -
Page 53: Configuration Of A Level Measurement
Enter the diameter of the bypass or stilling well. Setup → Medium group Select medium group (Others or Water based (DC >= 4)) Setup → Empty calibration Enter the distance E between the reference point R and the minimum level (0%). Setup → Full calibration Endress+Hauser... - Page 54 Displays the distance D between the reference point R and the level L. 10. Setup → Signal quality Displays the signal quality of the level echo. 11. Setup → Mapping → Confirm distance Compare the displayed distance to the real distance in order to start the recording of the mapping curve. Endress+Hauser...
-
Page 55: User-Specific Applications
Levelflex FMP53 HART Commissioning (via operating menu) User-specific applications For details of setting the parameters of user-specific applications, see separate documentation: BA01002F/00/DE (Operating Instructions FMP53, HART) For the Expert submenu refer to: GP01000F/00/DE (Description of Device Parameters FMP5x, HART) Endress+Hauser... - Page 56 *71226724* 71226724 www.addresses.endress.com...
