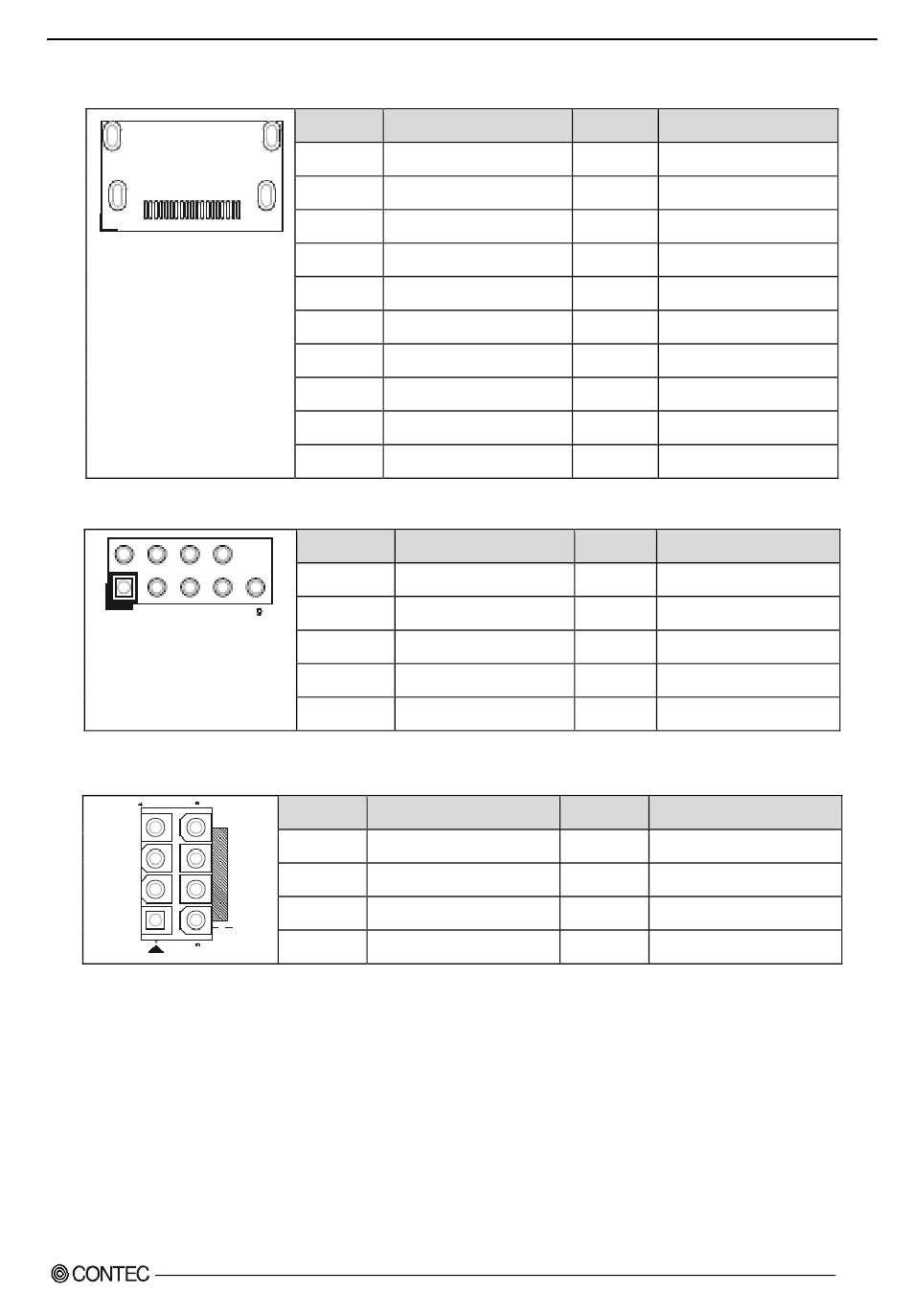

Table 3.9. J5: HDMI Connector
Table 3.10. J9: Audio Pin Header
Table 3.11. J15: ATX 8 Pin Connector (for CPU Power)
GSPI-Q3700-LLVA User's Manual
PIN No. Description
1 HDMI_D0_P
3 HDMI_D0_N
5 Ground
7 HDMI_D2_P
9 HDMI_D2_N
11 Ground
13 N/C
15 HDMI_DDC_CLK
17 Ground
19 HDMI_HPD
PIN No. Description
1 MIC_IN
3 LINE_IN_L
5 LINE_IN_R
7 AUDIO_OUT_L
9 AUDIO_OUT_R
PIN No. Description
1 Ground
2 Ground
3 Ground
4 Ground
PIN No. Description
2 Ground
4 HDMI_D1_P
6 HDMI_D1_N
8 Ground
10 HDMI_D3_P
12 HDMI_D3_N
14 N/C
16 HDMI_DDC_DATA
18 5V_HDMI
PIN No. Description
2 Ground
4 Ground
6 Ground
8 Ground
PIN No. Description
5 +12V
6 +12V
7 +12V
8 +12V
