Contec IPC Series User Manual

Flat panel display
Hide thumbs Also See for IPC Series:
Table of Contents

Advertisement

Quick Links

Download this manual

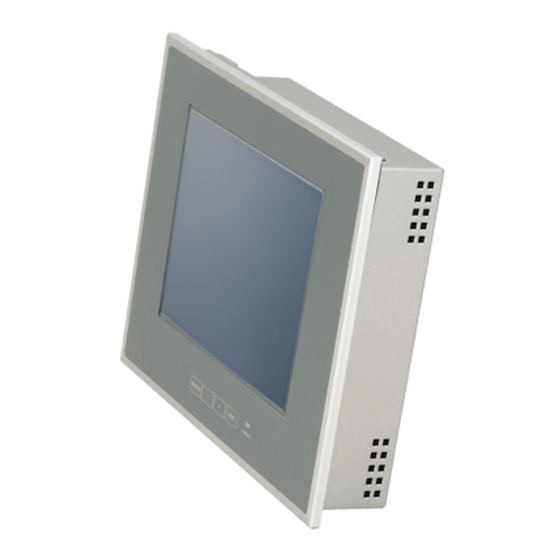

IPC Series
FLAT PANEL DISPLAY
Aluminium-Face Type
(DC12V,6.5"-TFT,LVDS)
FPD-S71VT-DC1
(DC12V,12.1"-TFT,LVDS)
FPD-L71ST-DC1
(DC12V,15.0"-TFT,LVDS)
FPD-H71XT-DC1
User's Manual
CONTEC CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Contec IPC Series

Summary of Contents for Contec IPC Series

  • Page 1 IPC Series FLAT PANEL DISPLAY Aluminium-Face Type (DC12V,6.5"-TFT,LVDS) FPD-S71VT-DC1 (DC12V,12.1"-TFT,LVDS) FPD-L71ST-DC1 (DC12V,15.0"-TFT,LVDS) FPD-H71XT-DC1 User’s Manual CONTEC CO., LTD.

  • Page 2: Check Your Package

    IPC Precaution List Waterproof packing Precaution List Product guide (Note) The manual of this product is being offered as PDF file on the CONTEC’s Web site. Each cable for this product is not bundled. Purchase it separately. Product guide Three-point sems...

  • Page 3: Copyright

    All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD. Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in this document or for results obtained by the user as a result of using this product.

  • Page 4: Table Of Contents

    Table of Contents Check your package ..........................i Copyright ............................ii Trademarks ............................ii Table of Contents ..........................iii INTRODUCTION About the Products ..........................1 Features ............................1 Customer Support ..........................2 Web Site ............................2 How to Obtain Service........................2 Liability ...............................
  • Page 5 DVI-D Interface Connection ......................26 Touch Panel Data Communications ....................27 POWER SUPPLY CONNECTION DC Power Supply Input Connector : DC-IN ................29 AC Adapter Jack ........................30 AC adapter code removal prevention fitting ..................30 LED INDICATORS TOUCH PANEL DISPLAY MODE OPTIONS FPD-L71ST-DC1, FPD-H71XT-DC1...

  • Page 6: Introduction

    These products are two inputs (LVDS or DVI-D sign) compatible, panel-mounted, TFT LCD display unit for use with host computers such as the CONTEC IPC series and SBCs (single board computers). Touch panel is available via RS-232C (Built-in video cable) or USB connection.

  • Page 7: Customer Support

    You can download updated driver software and differential files as well as sample programs available in several languages. Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. How to Obtain Service For replacement or repair, return the device freight prepaid, with a copy of the original invoice.

  • Page 8: Handling Precautions

    300g of force at a rate of two presses per second). CONTEC accepts your request for replacing each consumable in these products as a request for repair (at an additional cost). Contact your local retailer or CONTEC sales office.
  • Page 9 1. Introduction LCD Display Pixel Drop LCD display may have some pixels being dropped (bright and black spots) below a certain threshold. Note that this is not a failure or a defect. Burn-in on TFT Display "Burn-in" may occur if the same display is retained for a long time. Avoid this by periodically switching the display so that the same display is not maintained for a long time.

  • Page 10: Specifications

    5 m or shorter depending on the type of host computer or cable. For more details on the supported OS, or to download the latest version of software, visit the CONTEC Web site. FPD-L71ST-DC1, FPD-H71XT-DC1...

  • Page 11: General Specifications

    2. Specifications Table 2.2. Power Supply Specifications Specifications Item FPD-S71VT-DC1 FPD-L71ST-DC1 FPD-H71XT-DC1 Power supply input part Power supply connector 4-pin connector for +12 - 24VDC power supply AC adapter jack Corresponding to +12 (±5%) VDC output AC adapter Input power supply voltage +12V-24VDC±5% Consumption current *1 0.6A (Max.)

  • Page 12: Optical Display Specifications

    2. Specifications Optical Display Specifications Table 2.4. Optical Display Specifications Specifications (25ºC Typ. Value) Item Condition FPD-S71VT-DC1 FPD-L71ST-DC1 FPD-H71XT-DC1 Visual 50deg 50deg 70deg φ=180° angle (vertical) 70deg 70deg 80deg φ=0° Display in CR≥10 Visual monochrome 70deg 70deg 80deg φ=+90° angle (horizontal) 70deg 70deg...

  • Page 13: Physical Dimensions

    2. Specifications Physical Dimensions FPD-S71VT-DC1 Figure 2.2. Physical Dimensions of Main Unit (FPD-S71VT-DC1) FPD-L71ST-DC1 CAUTION! ************* 8-M4 TAP ******0.6N*m*** The s cr ew bolting to rque o f attac hm ent must be 0.6N-m(MAX) (Maximum tapping length : 5mm) XXXXXXXXXXXXXXXXXX MODEL : SERI AL No.
  • Page 14 2. Specifications FPD-H71XT-DC1 CAUTION! ************* ******0.6N*m*** 8-M4 TAP The screw bolting torque of attachm ent mus t be 0.6N-m(MAX) (Maximum tapping length : 5mm) XXXXXXXXXXXXXXXXXX MODEL : SERIAL No. : XXXXXXXXXXXXX INPUT : XXXXXXXXXXXXXXXXXXXXXX (310.1) 2-M3 TAP (373) (Maximum tapping length : 5mm) [mm] Figure 2.4.
  • Page 15 2. Specifications FPD-L71ST-DC1, FPD-H71XT-DC1...

  • Page 16: Part Names

    3. Part Names 3. Part Names Part Names Screen & Touch panel Power LED Backlight control switch Right side Back Left site USB touch panel connctor LVDS connector DVI-D connector Dip switch XXXXXXXXXXXXXXXXXX Power connector AC adapter jack Figure 3.1. Part Names Figure 3.2.

  • Page 17: Lvds Input Interface Connector

    3. Part Names LVDS Input Interface Connector It can connect to the host computer which outputs to the LVDS by using the optional LVDS cable. For more details on the connectable host computer or notes in connection, refer to chapter 5, “Connection to the Host Computer”.

  • Page 18: Dvi-D Input Interface Connector

    3. Part Names DVI-D Input Interface Connector It can connect to the host computer which outputs to the DVI-D by using the optional DVI cable. For more details on the connectable host computer or notes in connection, refer to chapter 5, “Connection to the Host Computer”.

  • Page 19: Usb Touch Panel Connector

    3. Part Names USB Touch Panel Connector The USB connector for communication between the host computer and touch panel. Table 3.3. USB Touch Panel Connector Connector USB Type B(Receptacle) used ↓ Lower side is display part. Pin No. Signal name Pin No.

  • Page 20: Front Sw For Backlight Control

    3. Part Names Front SW for Backlight Control These products have a SW for backlight control on the front side. Backlight ON/OFF and the brightness adjustment can be done with this switch. The backlight can be controlled by the software control from the host computer side. It turns on or off the backlight.
  • Page 21 3. Part Names FPD-L71ST-DC1, FPD-H71XT-DC1...

  • Page 22: Hardware Setup

    4. Hardware Setup 4. Hardware Setup Installation Requirements Distances between this product and Its Vicinity To maintain the ambient temperature within the installation environment requirement range, provide a gap of 50mm or more between the main unit and any adjacent equipment. Side view Panel 50mm or more...

  • Page 23: Panel Cut

    4. Hardware Setup Panel Cut Cut the display mount panel in the following dimensions. The four corners of the solid-line rectangle define the panel cut dimensions. Figure 4.3. FPD-S71VT-DC1 [6.5 inches] Panel Cut Dimensions and hole position for stud R1 or less Panel thickness range 1.6 - 7mm [mm] Figure 4.4.

  • Page 24: Attaching The Attachment Fittings To The Main Unit

    4. Hardware Setup Attaching the attachment fittings to the Main Unit (1) Hold the main unit from the outside of the panel. Figure 4.6. Attaching the attachment fittings to the Main Unit < 1 / 2 > (2) Hold the attachment fittings from the inside of the panel. Panel Metal fittings Main body...
  • Page 25 4. Hardware Setup FPD-L71ST-DC1, FPD-H71XT-DC1...

  • Page 26: Connection To The Host Computer

    LVDS connecting cable. As for the specific IPC Series or SBC, you need to change the BIOS setting to display it appropriately by the LVDS input. For more details on this, refer to the manual for each HOST computer.
  • Page 27 5. Connection to the Host Computer When connecting to a SPI-855x/IPC-BX8x0 series The LVDS output is set to Disabled by default. It is required to change the LVDS output to Enabled via BIOS menu. 1. Select “Video Features” from “Advanced” menu. Main Advanced Security Power PC_Health Boot Exit Reset Configuration Data: [Yes]...
  • Page 28 5. Connection to the Host Computer 2. Change “Boot Type” to “CRT+LCD”. Main Advanced Security Power PC_Health Boot Exit Video Features IGD - Device 2: [Enabled] IGD - Device 2, Function 1: [Enabled] IGD - Memory Size: [UMA = 8MB] IGD - Boot Type [VBIOS Default] IGD - LCD Panel Type...
  • Page 29 5. Connection to the Host Computer When connecting to a SEH-9450-LAS/SPC-9450-LV/SPI-845x-LLVA/SLC-85xx-LxA/SPC-852x- LA/IPC-BX701/IPC-BX900/IPC-BX950 series It is required to set the output resolution to a right one via BIOS according to the supported resolution of the connected flat panel display. 1. Select the “Advanced Chipset Features”. Figure 5.3.
  • Page 30 Depending on the following IPC Series or SBC, you may fail to set the VGA (640 x 480) in the resolution. In such a case, it is required to update the BIOS, so please contact your retailer.
  • Page 31 Connect the DVI-D input on this unit to the DVI-D connector on the host computer or the PanelLink connector. You can use a CONTEC IPC series or SBC (single board computer) as the host computer. In this case, settings are required on each host computer.
  • Page 32 5. Connection to the Host Computer Touch Panel Data Communications These connections are used to send touch panel data to the host computer via the USB or RS-232C. If you use the touch panel via the RS-232C connection, you do not have to use the RS-232C cable because both LVDS and DVD-D interface includes the RS-232C signal line.
  • Page 33 5. Connection to the Host Computer - When connecting to BOX-PC Note that the following IPC series products do not have the RS-232C in the DVI-D interface so the touch panel must be connected via USB. IPC-BX950TxD series (DVI-D interface) For more details on the allocation to RS-232C port No.
  • Page 34 6. Power Supply Connection 6. Power Supply Connection These products can connect the DC power or AC adapter for the power supply. CAUTION Input the power supply to the DC power supply connector only or the AC adapter jack only. Never supply power to both of them at the same time as it can cause a fault.
  • Page 35 6. Power Supply Connection Figure 6.1. Graph of Rise Time of Power Supply AC Adapter Jack The AC adapter jack is used to connect the AC adapter [IPC-ACAP12-01] available as an option. Do not connect any AC adapter other than the option. +12V Figure 6.2.
  • Page 36 7. LED Indicators 7. LED Indicators The POWER LED on the front face indicates each state of the display as follows: Table 7.1. LED Indicators LED status Description The power supply off or these product not started normally Green(ON) Normal operation Green (Flashing) Power save mode Orange (Flashing)
  • Page 37 7. LED Indicators FPD-L71ST-DC1, FPD-H71XT-DC1...
  • Page 38 Before the touch panel can be used, touch panel driver software must be installed. Note that the driver software is not bundled with this product. Download it from the CONTEC’s web site. For further details, refer to the READ_ME file for each driver.
  • Page 39 8. Touch Panel FPD-L71ST-DC1, FPD-H71XT-DC1...
  • Page 40 9. Display Mode 9. Display Mode This equipment supports the following display modes: Display Horizontal Vertical Video Number of Dot clock frequency frequency pixels (dot) (MHz) mode (kHz) (Hz) 640 x 480 25.18 31.47 Ο Ο VESA 800 x 600 40.00 37.88 Ο...
  • Page 41 9. Display Mode FPD-L71ST-DC1, FPD-H71XT-DC1...
  • Page 42 10. Options 10. Options Screen protective sheets IPC-CV12 : 12.1-inch [FPD-L71ST-DC1] screen protective sheets (10 sheets) IPC-CV15 : 15-inch [FPD-H71XT-DC1] screen protective sheets (10 sheets) Display cable only for DVI-D IPC-DVI/D-020 : DVI-D cable (2m) Others IPC-ACAP12-04A : AC adapter (Input: 100-240VAC, Output: 12VDC 4A) PWA-90AWD1 : AC adapter (Input: 100-240VAC, Output: 12VDC 7.5A) PWA-65AWD1...
  • Page 43 CONTEC CO., LTD. July 2020 Edition 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. [07172020] [10062008] Management No. A-51-623 07172020_rev6 Part No.

This manual is also suitable for:

Fpd-s71vt-dc1Fpd-l71st-dc1Fpd-h71xt-dc1S71vt-dc1
