Contec IPC Series User Manual

Atom e3845, 1pci slot, 12.1 inch, dc power
Hide thumbs Also See for IPC Series:
Table of Contents

Advertisement

Quick Links

Download this manual
IPC Series

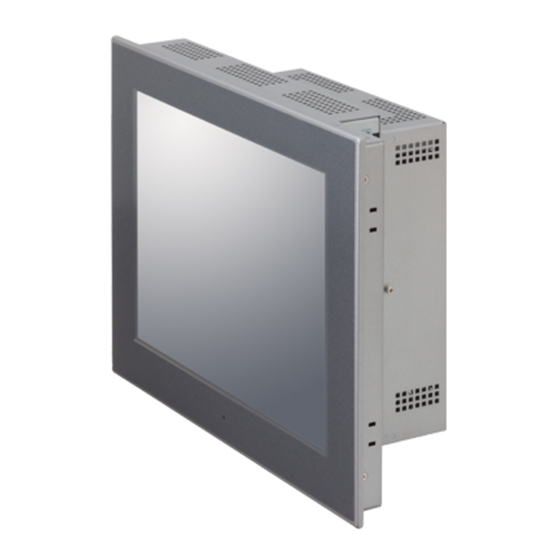

PANEL-PC PT-956SLXP1 Series
Atom E3845, 1PCI slot,
12.1 inch, DC Power
User's Manual
CONTEC CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Contec IPC Series

Summary of Contents for Contec IPC Series

  • Page 1 IPC Series PANEL-PC PT-956SLXP1 Series Atom E3845, 1PCI slot, 12.1 inch, DC Power User’s Manual CONTEC CO., LTD.
  • Page 2 Check Your Package Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer. Product Configuration List...

  • Page 3: Copyright

    No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.

  • Page 4: Table Of Contents

    Table of Contents Check Your Package ............................ i Copyright ..............................ii Trademarks ..............................ii Table of Contents ............................iii INTRODUCTION About the Product............................1 Features ..............................1 Supported OS ............................2 Customer Support ............................3 Web Site..............................3 How to Obtain Service ..........................3 Liability ................................
  • Page 5 Side view ............................25 Bottom view ............................25 System Configuration ..........................26 Component Function ..........................27 POWER SWITCH: POWER SW ..................... 27 LED: POWER, ACCESS, STATUS ....................27 DC Power Input Connector: DC-IN ....................27 Line out Interface: LINE OUT ......................28 Mic in Interface: MIC IN ........................
  • Page 6 Security ..............................61 Secure Boot menu ............................. 63 Boot Configuration............................ 64 Save & Exit ..............................66 APPENDIX POST Codes ............................... 69 SERIAL I/O Address and Register Function ..................72 Watch-Dog-Timer ............................. 78 Life of CFast .............................. 82 Battery ................................ 83 Differences between the PT-956SLXP1 Series and PT-955LXP1 Series ..........
  • Page 7 PT-956SLXP1 User’s manual...

  • Page 8: Introduction

    Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.

  • Page 9: Supported Os

    1. Introduction High definition supported DVI external display output This product has the up to 1920 x 1080 pixels DVI external display output as standard feature. A stand- alone two-display application which, for example, displays the screen on a big LCD TV separately from the main LCD, can be built.

  • Page 10: Customer Support

    You can download updated driver software and differential files as well as sample programs available in several languages. Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. How to Obtain Service For replacement or repair, return the device freight prepaid, with a copy of the original invoice.

  • Page 11: Safety Precautions

    1. Introduction Safety Precautions Understand the following definitions and precautions to use the product safely. Safety Information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely.
  • Page 12 To prevent corruption of files, always shutdown the OS before turning off this product. CONTEC reserves the right to refuse to service a product modified by the user. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.
  • Page 13 1. Introduction * Burn-In : Phenomenon characterized by a TFT display as a result of long-time display of the same screen where a shadow-like trace persists because electric charge remains in the LCD element even after the patterns are changed. The CFast card connector doesn't support hot plug.

  • Page 14: Security Warning

    1. Introduction Security Warning When connecting to the network, be aware of security-related problems. See the examples of Security measures below and set up the product properly along with the network devices. [Information security risks] - Unauthorized access from the outside through a network could cause the system halt, data damage, or exposure to malware - Invaded and used as a stepping stone, a device might attack the others through networks.
  • Page 15 1. Introduction PT-956SLXP1 User’s manual...

  • Page 16: System Reference

    *2 : When using Windows 10, the mouse cursor is not displayed if the mouse device is not connected. The virtual mouse driver is required to display the cursor. Please download it from the Contec website. *3 : Display of the DVI-connected screen becomes active after the Windows starts up.
  • Page 17 2. System Reference Table 2.1. Functional Specification < 2 / 2 > Model PT-956SLXP1-DC7xxxxx Interface External 1 port (29 pin DVI-I connector ), DVI-analog RGB conversion adapter attachment display Audio LINE OUT : φ3.5 Stereo mini jack, Full-scale output level 1.4Vrms (Typ.), MIC IN : φ3.5 Stereo mini jack, Full-scale input level 1.4Vrms (Typ.) CFast card 2 slots, CFast CARD Type I x 2, bootable...
  • Page 18 2. System Reference Table 2.2. Installation Environment Requirements Model PT-956SLXP1-DC7xxxxx < When using 100BASE-TX/10BASE-T > 0 - 50°C (When the total current for the USB port power supply capacity and the expansion board Operating temperature power supply capacity (+5 V) is 1.9 A or higher: 0 - 45°C) <...
  • Page 19 2. System Reference Display Optical Specifications Table 2.3. Display Optical Specifications Parameter Condition Min. Typ. Visual angle φ = 180° 70deg 80deg (vertical) φ = 0° 70deg 80deg Display. CR≥10 Monochrome Visual angle φ = +90° 70deg 80deg (horizontal) φ= -90° 70deg 80deg Surface...

  • Page 20: Power Management Features

    2. System Reference Power Management Features Support ACPI (Advanced Configuration and Power Interface) ACPI v2.0 compliant Support hardware automatic wake-up Power Requirements Your system requires a clean, steady power source for reliable performance of the high frequency CPU on the product, the quality of the power supply is even more important. For the best performance makes sure your power supply provides a range of 10.8 V minimum to 31.2 V maximum DC power source.

  • Page 21: Physical Dimensions

    2. System Reference Physical Dimensions [Front] [mm] [Back face] 102.8 51.4 [mm] Figure 2.2. Physical Dimensions PT-956SLXP1 User’s manual...

  • Page 22: Hardware Setup

    3. Hardware Setup 3. Hardware Setup Before Using the Product for the First Time Follow the next steps to set up this product: STEP1 By referring to the information in this chapter, install, connect and set this product. STEP2 Connect cables. Connect the cable of necessary external devices, such as keyboard and a mouse, to this product using appropriate cables.

  • Page 23: Hardware Setup

    3. Hardware Setup Hardware Setup Before you start, be sure that the power is turned off. Remove only those screws that are explained. Do not move any other screw. Attaching the CFast Attachment Fittings (1) After inserting a CFast Card, fasten the bundled CFast attachment fittings with a screw. Figure 3.1.

  • Page 24: Attaching The Fg

    3. Hardware Setup Attaching the FG (1) Use screws to attach the FG. Figure 3.2. Attaching the FG CAUTION The FG pin of this product is connected to the GND signal of the DC power connector (DC-IN). Note that the connection cannot be cut off. Screw holes may be damaged if screws are tightened with a torque greater than the specified torque.

  • Page 25: Installation Of An Extended Board

    3. Hardware Setup Installation of an extended board (1) Remove the back cover. Figure 3.3. Remove the back cover (2) Insert the PCI board into the connector and fasten it with screws. Figure 3.4. Installation of the PCI board PT-956SLXP1 User’s manual...
  • Page 26 3. Hardware Setup (3) Move the board holder bracket to a position where the PCI board can be secured and then secure it with the screw. Figure 3.5. Secure the PCI board holder (4) Attach the back cover in its original position. Figure 3.6.

  • Page 27: Fastening The Cable

    3. Hardware Setup Fastening the Cable This product comes with cable tie for fixing cables. Fastening the LINE OUT, USB Cable The system unit has a hole for attaching cable tie. Using a cable tie for a cable with lock-less connector, such as the LINE OUT and USB Cable, prevents the connector from being unplugged.

  • Page 28: Hardware Setup

    3. Hardware Setup Hardware Setup (1) Cut out a panel according to the following dimensions to mount the main unit. R1 or less [mm] Panel thickness range 1.6 - 7mm Figure 3.8. Dimensions of Panel Opening Place the waterproof packing in the groove on the front face of the main body and insert the main body into the panel from the external side.

  • Page 29: Installation Requirements

    3. Hardware Setup Installation Requirements Be sure that the ambient temperature is within the range specified in the installation environment requirement by making space between the product and device that generates heat or exhaust air. Installed angle which is recommended Installed angle of this product which is recommended is -45 °...
  • Page 30 3. Hardware Setup Distances between this product and its vicinity 50mm 50mm 50mm or more or more or more Installation panel Figure 3.12. Distances between this product and its vicinity CAUTION Wall temperatures should be within the guaranteed operating temperature range of the product. Adjust the air flow so as not to allow waste heat from the product to accumulate around the product.
  • Page 31 3. Hardware Setup Ambient temperature In this product, the ambient temperature is decided from the multiple measurement points as shown below. When making use of the product, the air current should be adjusted to prevent that all the temperatures measured at the measurement points exceed the specified temperature. 50mm 50mm 50mm...

  • Page 32: Each Component Function

    4. Each Component Function 4. Each Component Function Component Name Front view POWER LED Figure 4.1. Component Name < 1/3 > Side view DC-IN MIC IN POWER LED LINE OUT USB3.0 POWER SW USB2.0 CFast 1 DVI-I LAN A LAN B CFast 2 SERIAL A STATUS LED...

  • Page 33: System Configuration

    4. Each Component Function Table 4.1. Component Function Name Function POWER-SW Power switch POWER LED Power ON display LED ACCESS LED CFast disk access display LED STATUS LED Status LED DC-IN DC power input connector LINE OUT Line out (φ3.5 PHONE JACK) MIC IN Mic in (φ3.5 PHONE JACK) LAN A...

  • Page 34: Component Function

    Flashing, ON (Red) You can control the behavior of LED from the user application. *1 API that controls STATUS LED is available. For more information, visit the CONTEC’s Web site. DC Power Input Connector: DC-IN To supply the power, always use the power supply listed below.

  • Page 35: Line Out Interface: Line Out

    4. Each Component Function Line out Interface: LINE OUT A line output connector is provided. You can plug a headphone or amplifier-integrated speakers into this connector. Mic in Interface: MIC IN A MIC input connector is provided. You can plug a microphone to this connector for sound input. Giga bit-Ethernet: LAN A, B This product is equipped with 2 ports for giga bit.

  • Page 36: Usb 3.0 Ports: Usb3.0

    4. Each Component Function USB 3.0 Ports: USB3.0 This product is equipped with 1 port for USB 3.0 interface. Table 4.5. USB 3.0 Connector Function Pin No. USB3.0 USB_VCC DATA- DATA+ USB_GND SSRX- SSRX+ USB_GND SSTX- SSTX+ USB 2.0 Ports: USB2.0 This product is equipped with 3 port for USB 2.0 interface.

  • Page 37: Serial Port Interface: Serial A, B

    4. Each Component Function Serial Port Interface: SERIAL A, B SERIAL A, B (RS-232C Ports) The product has 2 ports of RS-232C compliant serial ports supporting up to a baud rate of 115,200bps with a 16-byte transmission-dedicated data buffer and a 16-byte reception-dedicated data buffer. You can use “Chapter 5 BIOS Setup”...

  • Page 38: Dvi Interface: Dvi-I

    A DVI interface is provided. You can use it to connect a CRT (even a D-SUB 15 pin connector is acceptable by using the bundled DVI-analog RGB adapter) or a CONTEC flat panel display. The connector is named DVI (DVI-I 29-pin connector).
  • Page 39 4. Each Component Function Table 4.10. DVI-analog RGB conversion adapter Connector type DVI-I 29 pin 15.00 6.20 30.00 5.80 [mm] Signal on analog RGB Pin No. Signal name Pin No. Signal name GREEN BLUE N.C. N.C. DDC DATA HSYNC VSYNC DDC CLK CAUTION You need to set the screen resolution if the display cable is not connected to this DVI-D interface at...

  • Page 40: Cfast Card Connector: Cfast 1, 2

    4. Each Component Function CFast Card Connector: CFast 1, 2 The CFast Card (Type I) can be connected. The CFast card connector doesn't support hot plug. The pulling out opening of the CFast card cannot be done in the state of power supply ON. Please neither pulling out opening of CFast in the state of power supply ON of this product nor come in contact with CFast.

  • Page 41: Expansion Slots: Pci

    4. Each Component Function Expansion slots: PCI The product has one expansion slot for the implementation of PCI bus type board. CAUTION A board that uses the back of the board edge connector (the shaded area in the figure) may not be mounted.

  • Page 42: Bios Setup

    5. BIOS Setup 5. BIOS Setup Introduction This chapter discusses American Megatrends’s (AMI) Setup program built into the FLASH ROM BIOS. The Setup program allows users to modify the basic system configuration. This special information is then stored in FLASH ROM so that it retains the Setup information when the power is turned off. The rest of this chapter is intended to guide you through the process of configuring your system using Setup.

  • Page 43: Using Setup

    5. BIOS Setup Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

  • Page 44: Main Menu

    5. BIOS Setup Main Menu When the setup program (Aptio Startup Utility) is started, the main menu will be displayed. Navigate through the various tabs by pressing the right and left arrow keys. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Main Advanced Chipset...

  • Page 45: Main

    5. BIOS Setup Main View the basic system structure. The following items are displayed. Table 5.2. Indication item of the main menu Item Indication example Explanation BIOS Vendor American Megatrends Displays the BIOS manufacturer. Core Version 5.010 Displays the BIOS core version. Compliancy UEFI 2.4;...

  • Page 46: Advanced

    5. BIOS Setup Advanced Specify the detailed system functions. The following items are available. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit ▶ Trusted Computing ▶ ACPI Settings ▶ Super IO Configuration ▶...

  • Page 47: Trusted Computing

    5. BIOS Setup Trusted Computing Configure the operation settings for TPM. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Advanced TPM20 Device Found Security Device Support [Disabled] →←:Select Screen ↑↓:Select Item Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Load Defaults for Win7 F4:Save &...
  • Page 48 5. BIOS Setup CAUTION If TPM is already used with encryption software such as "Bit Locker", decode the encryption by selecting [TPM Clear] first. Then reinitialize the TPM. After the reinitialization, encrypt it with encryption software once more. PT-956SLXP1 User’s manual...

  • Page 49: Acpi Settings

    5. BIOS Setup ACPI Settings Configure the settings for ACPI power management. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Advanced ACPI Settings Enable Hibernation [Enabled] ACPI Sleep State [S3 (Suspend to RAM)] Wake On LAN/RI Control on S5 [Disabled] Resume On RTC Alarm [Disabled]...

  • Page 50: Super Io Configuration

    5. BIOS Setup Super IO Configuration Configure the operation settings for Super IO. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Advanced Super IO Configuration Super IO Chip NCT6106D ▶ Serial Port A Configuration ▶ Serial Port B Configuration ▶...
  • Page 51 5. BIOS Setup Table 5.10. Serial Port B Configuration Item Option Description Disabled Configure the operation settings for serial Serial Port Enabled port B. IO=2F8h; IRQ=3; IO=2A0h; IRQ=3,4,5,6; IO=2E8h; IRQ=3,4,5,6; Change Settings IO=2F8h; IRQ=3,4,5,6; Do not change this setting. IO=3E8h; IRQ=3,4,5,6; IO=3F8h;...

  • Page 52: H/W Monitor

    5. BIOS Setup H/W Monitor View hardware monitor information such as the CPU temperature. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Advanced Pc Health Status System temperature : +35 C CPU temperature : +42 C VCORE : +0.888 V +1.8V : +1.760 V +5 V...

  • Page 53: Cpu Configuration

    5. BIOS Setup CPU Configuration View the operation configurations for CPU. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Advanced CPU Configuration ▶ Socket 0 CPU Information CPU Speed 1918MHz 64-bit Supported Execute Disable Bit [Enabled] Intel Virtualization Technology [Disabled] →←:Select Screen ↑↓:Select Item...

  • Page 54: Ppm Configuration

    5. BIOS Setup PPM Configuration View the configurations for power saving function. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Advanced PPM Configuration EIST [Disabled] CPU C-State Report [Disabled] S0ix [Disabled] →←:Select Screen ↑↓:Select Item Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3: Load Defaults for Win7...

  • Page 55: Sata Configuration

    5. BIOS Setup SATA Configuration Configure the SATA controller settings. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Advanced SATA Configration Serial-ATA (SATA) [Enabled] SATA Test Mode [Disabled] Select SATA Port/CFast Card [CFast1] SATA Speed Support [Gen2] SATA ODD Port [No ODD] SATA Mode [AHCI Mode]...

  • Page 56: Csm Configuration

    5. BIOS Setup CSM Configuration View the configurations related to the CSM (Compatibility Support Module), such as Option ROM execution. When Windows 7 Load Defaults is performed, CSM Support setting is [Enabled]. When Windows 10 Load Defaults is performed, CSM Support setting is [Disabled]. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

  • Page 57: Chipset

    5. BIOS Setup Chipset Specify the detailed chipset functions. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit ▶ North Bridge ▶ South Bridge →←:Select Screen ↑↓:Select Item Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3: Load Defaults for Win7...

  • Page 58: North Bridge

    5. BIOS Setup North Bridge Configure the operation settings for North Bridge. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Chipset ▶ Intel IGD Configuration ▶ LCD Control Memory Information Total Memory 4096 MB (DDR3U) Memory Slot 0 4096 MB (DDR3U) Max TOLUD [3 GB]...

  • Page 59: Intel Igd Configuration

    5. BIOS Setup Intel IGD Configuration View the configurations for how memory is used when performing the graphic function. Leave these settings as configured before shipment. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Chipset GOP Configuration GOP Driver [Enabled] Intel IGD Configuration PAVC...
  • Page 60 5. BIOS Setup Item Option Description 128MB 256MB DVMT Total Gfx Mem Do not change this setting. 128MB 256MB Aperture Size Do not change this setting. 512MB GTT Size Do not change this setting. PT-956SLXP1 User’s manual...

  • Page 61: Lcd Control

    5. BIOS Setup LCD Control Configure the LCD settings. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Chipset LCD Control Primary IGFX Boot Display [LFP] Secondary IGFX Boot Display [CRT] LCD Panel Type [1024x768 LVDS1] Panel Scaling [Auto] →←:Select Screen ↑↓:Select Item Enter:Select...
  • Page 62 5. BIOS Setup Item Option Description 2048x1536 LVDS Auto Panel Scaling Do not change this setting. Force Scaling PT-956SLXP1 User’s manual...

  • Page 63: South Bridge Configuration

    5. BIOS Setup South Bridge Configuration Configure the South Bridge settings. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Chipset ▶ Azalia HD Audio ▶ USB Configuration ▶ LAN Configuration High Precision Timer [Enabled] Restore AC Power Loss [Power On] Serial IRQ Mode [Quiet]...

  • Page 64: Azalia Hd Audio Configuration

    5. BIOS Setup Azalia HD Audio Configuration Configure the Azalia HD Audio settings. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Chipset Audio Configuration Audio Controller [Enabled] →←:Select Screen ↑↓:Select Item Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Load Defaults for Win7 F4:Save &...

  • Page 65: Usb Configuration

    5. BIOS Setup USB Configuration Configure the USB settings. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Chipset USB Configuration USB Module Version USB Devices: 1 Keyboard, 1 Mouse, 1 Hub Legacy USB Support [Enable] XHCI Hand-off [Enable] EHCI Hand-off [Disabled] USB Mass Storege Driver Support...
  • Page 66 5. BIOS Setup Item Option Description Enabled Disabled USB2 Link Power Management Do not change this setting. Configuration can be done only when the Enabled USB3.0 is set to Disabled. USB2.0 (EHCI) Support Disabled When the USB3.0 is set to Disabled, be certain to set this to Enabled.

  • Page 67: Lan Configuration

    5. BIOS Setup LAN Configuration View the operation configurations for LAN. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Chipset LAN Configuration Onboard LAN A Controller [Enabled] Onboard LAN B Controller [Enabled] [UEFI] →←:Select Screen ↑↓:Select Item Enter:Select +/-:Change Opt.

  • Page 68: Security

    5. BIOS Setup Security View the security of the system settings. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description If ONLY the Administrator’s password is set , then this only limits access to Setup and is only asked for when entering Setup.
  • Page 69 5. BIOS Setup Secure Boot menu It is displayed when CSM Support is set as Disabled (Windows 10 mode). Leave these settings as configured before shipment. CAUTION Be careful to not forget the password. If you forget the password, the product will have to be repaired at an extra cost.

  • Page 70: Secure Boot Menu

    5. BIOS Setup Secure Boot menu Configure the Secure Boot settings. Leave these settings as configured before shipment. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit System Mode Setup Secure Boot Not Active Vendor Keys Not Active...

  • Page 71: Boot Configuration

    5. BIOS Setup Boot Configuration Configure the settings boot devices and other devices. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Setup Prompt Timeout Bootup NumLock State [On] Quiet Boot [Disabled] Fast Boot...
  • Page 72 5. BIOS Setup CAUTION In the Boot Option #x device list, the same device may be displayed as follows. (1) USB Disk (2) UEFI: USB Disk In such cases, if (1) is selected, a legacy boot is performed under the assumption the disk is MBR- formatted.

  • Page 73: Save & Exit

    5. BIOS Setup Save & Exit Load/save setup items and exit the setup menu. Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Save Changes and Exit Discard Changes and Exit Save Changes and Reset Discard Changes and Reset Save Option...
  • Page 74 5. BIOS Setup Boot Override Configure the settings for temporary booting from a connected device other than that set in Boot Configuration. The bootable devices will be displayed in place of XXXX. Reset System with ME disable ModeMEUD000 This cannot be used with the product. Do not change the settings. PT-956SLXP1 User’s manual...
  • Page 75 5. BIOS Setup PT-956SLXP1 User’s manual...

  • Page 76: Appendix

    6. Appendix 6. Appendix POST Codes Table 6.1. POST Codes < 1 / 3 > POST Description (hex) < Security (SEC) phase > Power ON. The detection of the reset kind (Hard/Soft) Initialize the microcode load previous AP Initialize the microcode load previous North Bridge Initialize the microcode load previous South Bridge Initialize the microcode load previous OEM Microcode load...
  • Page 77 6. Appendix Table 6.1. POST Codes < 2 / 3 > POST Description (hex) CPU DXE installation start 64h - 67h CPU DXE installation start (Specific CPU module) PCI host bridge installation North Bridge DXE initialization starts North Bridge DXE SMM initialization starts 6Bh - 6Fh North Bridge DXE initialization (Specific North Bridge module) South Bridge DXE initialization starts...
  • Page 78 6. Appendix Table 6.1. POST code < 3 / 3 > POST Description (hex) USB hotplug PCI bus hot plug NVRAM cleanup Configuration reset (Reset the NVRAM settings) B8h - BFh For future AMI codes reserved C0h - CFh OEM BDS initialization code ACPI/ASL Checkpoints S1 sleep system during migration.

  • Page 79: Serial I/O Address And Register Function

    6. Appendix SERIAL I/O Address and Register Function The following table lists the I/O addresses in case of SERIAL A. Table 6.2. I/O Port Addresses I/O address DLAB Read/Write Register 03F8H Transmitter holding register Receive buffer register Divisor latch register (LSB) 03F9H Divisor latch register (MSB) Interrupt enable register...
  • Page 80 6. Appendix Table 6.3. Function of Each Register < 1 / 4 > I/O address Description 03F8H THR: Transmitter Holding Register [DLAB=0] bit0 bit7 Register dedicated to write transmitted data to 03F8H RBR: Reciever Buffer Register [DLAB=O] bit7 bit0 Register dedicated to read received data from 03F8H DLL: Divisor Latch (LSB) [DLAB=1] bit7...
  • Page 81 6. Appendix Table 6.3. Function of Each Register < 2 / 4 > I/O address Description 03FAH IIR : Interrupt Identification Register Interrupt details 1: Do not generate interrupts 0: Generate interrupts bit2 bit1 bit0 Priority Description Interrupts are not generated. Generated by overrun, parity, framing error or break 1 (high) interrupt.
  • Page 82 6. Appendix Table 6.3. Function of Each Register < 3 / 4 > I/O address Description 03FCH MCR: Modem Control Register Loop IRQ RTS DTR 0 : Inactive [HIGH] 1 : Active [LOW] RTS 0 : Inactive [HIGH] 1 : Active [LOW] Interrupt control bit 0 : Disable...
  • Page 83 6. Appendix Table 6.3. Function of Each Register < 4 / 4 > I/O address Description 03FEH MSR : Modem Status Register DSR CTS DDCD TERI DDSR DCTS Delta CTS Delta DSR Trailing edge RI Delta data carrier detect 03FFH SCR : Scratchpad Register This is an 8-bit, readable/writable register which is available to the user to allow data to be saved temporarily.
  • Page 84 6. Appendix Baud Rate Settings A baud rate is set by software by dividing the clock input (1.8432MHz). The baud rate in terms of hardware can be set to a maximum of 115,200 bps for SERIALA, B. The baud rates available in practice depend on the operating environment (cable, software, etc.).

  • Page 85: Watch-Dog-Timer

    6. Appendix Watch-Dog-Timer The watchdog timer serves as a safeguard against possible system lock-up in your industrial computer system. In most industrial environments, there are heavy equipment, generators, high-voltage power lines, or power drops that have adverse effects on your computer system. For instance, when a power drop occurs, it could cause the CPU to come to a halt state or enter into an infinite loop, resulting in a system lock-up.
  • Page 86 6. Appendix (2) Example programming The following example is written in Intel8086 assembly language. ;=============== ;<WDT Initial> ;=============== ;------------------------------------------- ;Enter the extended function mode ;------------------------------------------- MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL ;----------------------------------------------- ; Select logical device WDT(number 8) ;----------------------------------------------- MOV DX,2EH MOV AL,07H...
  • Page 87 6. Appendix ;================================ ;<WDT START : counter set and a start > ;================================ ;--------------------------------------------- ;Enter the extended function mode ;--------------------------------------------- MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL ;------------------------------------------------ ;Select logical device WDT(number 8) ;------------------------------------------------ MOV DX,2EH MOV AL,07H OUT DX,AL MOV DX,2FH MOV AL,08H OUT DX,AL...
  • Page 88 6. Appendix ;============== ;<WDT STOP> ;============== ;----------------------------------------- ;Enter the extended function mode ;----------------------------------------- MOV DX,2EH MOV AL,87H OUT DX,AL OUT DX,AL ;---------------------------------------------- ;Select logical device WDT(number 8) ;---------------------------------------------- MOV DX,2EH MOV AL,07H OUT DX,AL MOV DX,2FH MOV AL,08H OUT DX,AL ;----------------------------------- ;Stop count down of WDT ;-----------------------------------...

  • Page 89: Life Of Cfast

    The details refer to the manual of the CFast card of the option product. About LiveMonitor The self-diagnosis program “LiveMonitor” can be downloaded for S.M.A.R.T. information of CFast. * For more information, contact us through CONTEC's Web site. PT-956SLXP1 User’s manual...

  • Page 90: Battery

    6. Appendix Battery Battery Specification This product uses the following battery. - Type : Lithium primary battery - Model : BR-1/2AA - Maker : Panasonic - Nominal voltage : 3V - Nominal capacity : 1000mAh - Lithium content : 1g or less Removing the battery Remove the battery according to the following figure.
  • Page 91 6. Appendix (2) Remove the screws securing the PCI expansion section and slide the PCI expansion section in the order shown in 1 and 2 to remove it. Figure 6.2. Removing the battery 2 (3) Remove the screws on the rear and the left, right, upper, and lower sides. Then remove the main unit cover.
  • Page 92 6. Appendix (4) Remove the screws fixing the battery and remove the battery. Cut and remove the Cable Tie. Figure 6.4. Removing the battery 4 Disposing the battery Dispose the removed battery properly as instructed by local government. PT-956SLXP1 User’s manual...

  • Page 93: Differences Between The Pt-956Slxp1 Series And Pt-955Lxp1 Series

    6. Appendix Differences between the PT-956SLXP1 Series and PT-955LXP1 Series Model PT-956SLXP1 Series PT-955LXP1 Series Intel® Atom™ Processor E3845 1.91GHz Intel® Atom™ Processor N270 (1.60GHz/FSB533MHz) Chipset None Intel® 945GSE + ICH7M-DH BIOS BIOS (mfd. By AMI) BIOS (mfd. By Award) Memory 4GB (204pin SO-DIMM x 1), 1GB (200pin SO-DIMM x 1),...

  • Page 94: List Of Options

    32GB CompactFlash for Fix Disk (Higher environmental resistance type) CAUTION If a product other than our option is used, the normal operation may be impaired or the functions may be limited. * Check the CONTEC’s Web site for the latest information on these options. PT-956SLXP1 User’s manual...
  • Page 95 CONTEC CO., LTD. September 2019 Edition 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. [04132018] [06092017] Management No. NA05670 [09202019_rev5] Parts No.
