  • Page 1 IPC Series Panel PC System CA-RU150R30XG-3965U-01-W10 User’s Manual CONTEC CO., LTD.
  • Page 2 Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is completed. If you discover damaged or missing items, contact your retailer or the general CONTEC information. ◆Product Configuration List CA-RU150...
  • Page 3 User’s Manual Download from the Read this when operating This describes the (This document) CONTEC website the product. hardware aspects such as (PDF) functions and settings. IPC Precaution List Download from the Read this before...
  • Page 4 No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.
  • Page 5 Attention This manual contains important information for the proper setup and maintenance of the product(s). Before setup and usage of the product(s), please read this manual thoroughly. The specifications shall apply only to the product(s) in this manual. The specifications may be modified without any notice in advance. Please inquire with your supplier for latest specifications, driver, or manual.

  • Page 6: Table Of Contents

    Table of Contents Check Your Package ..........................ii ◆Product Configuration List ......................ii ◆Must Read the Following Manuals..................iii ◆Download MICROSOFT SOFTWARE LICENSE TERMS ............ iii ◆Download Manuals ........................iii Option Available ..........................iv Copyright ............................iv Trademarks ............................iv Certification ............................
  • Page 7 ◆Super IO Configuration ......................24 ◆H/W Monitor .......................... 27 ◆Smart Fan Configuration......................28 ◆PCI/PCIE Device Configuration ..................... 29 ◆GPIO Group Configuration ..................... 31 Boot ..............................32 Security.............................. 34 ◆PCH-FW Configuration ......................36 ◆AMT Configuration ........................ 39 ◆Trusted Computing ......................... 41 ◆Serial Port Console Redirection ....................

  • Page 8: Introduction

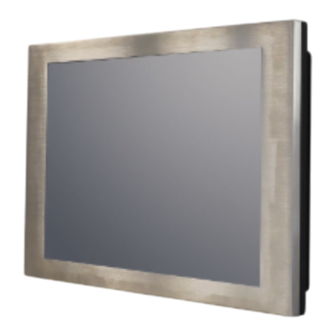

    1. Introduction About the Product This product is an Intel ® Kaby Lake-U Processor fanless 304 stainless steel front bezel plus metal back covered touch panel pc with IP65. ◆Appearance Front View (CA-RU150) Back View (CA-RU150) Side View (CA-RU150) Up/ Down View (CA-RU150) CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 9: Supported Os

    Wall Mount Type VESA Clamp ◆Supported OS - Windows 10 IoT Enterprise LTSB 2016 64bit. ® CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 10: Customer Support

    Customer support CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably. ◆Web Site https://www.contec.com/ ■Latest product information CONTEC provides up-to-date information on products. CONTEC also provides product manuals and various technical documents in the PDF.

  • Page 11: Safety Precaution

    Safety precaution Understand the following definitions and precautions to use the product safely. ◆Safety information This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely.
  • Page 12 To prevent corruption of files, always shutdown the OS before turning off this product. CONTEC reserves the right to refuse to service a product modified by the user. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.

  • Page 13: System Reference

    2. System Reference Specification Table 2.1. Functional specification Model CA-RU150 Series Display Type 15.0” Panel Ratio Max. Resolution 1024 x 768 Max. Colors 16.7M Luminance 300 cd/m2 Viewing Angle (H/V) 176°/176° LED Backlight (Hrs) 70,000 Contrast 2500:1 Response Time 21ms Active Area (HxV) mm 340.1 x 228.1 mm Bezel &...
  • Page 14 Mounting VESA 75x75 mm Mechanical Net Weight (kg) Dimension (mm) 380 x 280 x 58.1 mm Certificate RoHS & CE & FCC Class A & UKCA Table 2.2. Installation Environment Requirements Model CA-RU150 Series Operating temperature 0°C - 50°C with Air Flow: 0.5 m/s Ambient Storage temperature -20 - +50°C (-4°F - +122°F)

  • Page 15: Physical Dimensions

    Physical dimensions CA-RU150 Series [mm] Figure 2.1. CA-RU150 Series Dimension CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 16: Bios Setup

    3. BIOS setup Introduction This chapter discusses American Megatrends’ (AMI) Setup program built into the FLASH ROM BIOS. The Setup program allows users to modify the basic system configuration. This special information is then stored in FLASH ROM so that it retains the Setup information when the power is turned off. The rest of this chapter is intended to guide you through the process of configuring your system using Setup.

  • Page 17: Using Setup

    Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

  • Page 18: Main Menu

    Main Menu When the setup program (Aptio Startup Utility) is started, the main menu will be displayed. Navigate through the various tabs by pressing the right and left arrow keys. (Represented by using CA-RU150P30XG-3965U model) Figure 3.1. Main Menu ◆Main Use this menu for basic system configurations, such as time, date, etc.

  • Page 19: Main

    Main Figure 3.2. Main menu ◆System Date This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>. ◆System Time This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>. ◆SATA Mode Selection Table 3.2.

  • Page 20: Advanced

    Advanced Figure 3.3. Advanced Manu ◆Full Screen Logo Display This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo. When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.
  • Page 21 Table 3.3. Advanced Menu Item Option Description Disabled Full Screen Logo Display Enabled Bootup NumLock State Force BIOS Option ROM Messages Keep Current CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 22: Cpu Configuration

    ◆CPU Configuration Figure 3.4. CPU Configuration ◆Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “Virtual” systems. ◆Active Processor Cores This setting specifies the number of active processor cores.
  • Page 23 ◆C-States This setting controls the C-States (CPU Power states). Table 3.4. CPU Configuration Item Option Description Disabled Intel Virtualization Technology Enabled Active Processor Cores Disabled Execute Disable Bit Enabled Disabled Intel SpeedStep Enabled Enabled C-State Disabled CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 24: Super Io Configuration

    ◆Super IO Configuration Figure 3.5. Super IO Configuration ◆Serial Port 1/ 2/ 3/ 4/ 5/ 6 ▶Change Settings This setting enables/disables the specified serial port. ▶Mode Select This setting is used to change the address & IRQ settings of the specified serial port. Select an operation mode for the specified serial port.
  • Page 25 Table 3.5. Super IO Configuration Item Option Description Disabled Serial Port 1 Enabled Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; RS232 RS422 Mode Select RS485 RS422 with TR RS485 with TR Disabled Serial Port 2 Enabled Auto IO=2F8h;...
  • Page 26 Disabled Serial Port 6 Enabled Auto IO=2E0h; IRQ=7; IO=3E8h; IRQ=5,6,7,9,10,11,12; Change Settings IO=2E8h; IRQ=5,6,7,9,10,11,12; IO=2F0h; IRQ=5,6,7,9,10,11,12; IO=2E0h; IRQ=5,6,7,9,10,11,12; Disabled Watch Dog Timer Enabled 16-byte 32-byte FIFO Mode 64-byte 128-byte Level/ Low Active Edge/ High Active Share IRQ Mode Level/ High Active Edge/ Low Active CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 27: H/W Monitor

    ◆H/W Monitor Figure 3.6. H/W Monitor ◆H/W Monitor These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 28: Smart Fan Configuration

    ◆Smart Fan Configuration Figure 3.7. Smart Fan Configuration ◆SYSFAN1 This setting enables/disables the Smart Fan function. Smart Fan is an excellent feature which will adjust the CPU/system fan speed automatically depending on the current CPU/system temperature, avoiding the overheating to damage your system. Table 3.6.

  • Page 29: Pci/Pcie Device Configuration

    ◆PCI/PCIE Device Configuration Figure 3.8. PCI/PCIE Device Configuration ◆Legacy USB Support Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix. ◆Audio Controller This setting enables/disables the onboard audio controller.
  • Page 30 Disabled Launch Onboard Lan OpRom Enabled CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 31: Gpio Group Configuration

    ◆ GPIO Group Configuration Figure 3.9. GPIO Group Configuration ◆GPO0 ~ GPO7 These settings control the operation mode of the specified GPIO Table 3.8. GPIO Group Configuration Item Option Description GPO0 High GPO1 High GPO2 High GPO3 High GPO4 High GPO5 High GPO6...

  • Page 32: Boot

    Boot Figure 3.10. Boot Menu ◆CSM Support This setting enables/disables the support for Compatibility Support Module, a part of the Intel Platform Innovation Framework for EFI providing the capability to support legacy BIOS interfaces. ◆Video This setting selects the video mode. ◆Boot Option Priorities This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system.
  • Page 33 Table 3.9. Boot Menu Item Option Disabled CSM Support Enabled UEFI Video Legacy UEFI: Build-in EFI Shell Boot Option #1 P1: WDC WD5000LPSX-22A6WT0 Disabled UEFI: Build-in EFI Shell Boot Option #2 P1: WDC WD5000LPSX-22A6WT0 Disabled P1: WDC WD5000LPSX-22A6WT0 Hard Drive BBS Priorities Boot Option #1 Disabled CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 34: Security

    Security Figure 3.11. Security menu ◆Administrator Password Administrator Password controls access to the BIOS Setup utility. ◆User Password User Password controls access to the system at boot and to the BIOS Setup utility. ◆Intel BIOS Guard Support Enable/Disable Intel BIOS Guard Support. ◆Intel Trusted Execution Technology Intel Trusted Execution Technology provides highly scalable platform security in physical and virtual infrastructures.
  • Page 35 Table 3.10. Security Menu Item Option Disabled Intel Bios Guard Support Enabled Disabled Intel Trusted Execution Technology Enabled CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 36: Pch-Fw Configuration

    ◆PCH-FW Configuration Figure 3.12. PCH-FW Configuration ◆ME Firmware Version, ME Firmware Mode, ME Firmware SKU, System Integrity Value, ME Firmware Status 1, ME Firmware Status 2, NFC Support These settings show the firmware information of the Intel ME (Management Engine). ◆ME Status This setting enables/disables the ME status.
  • Page 37 This setting enables/disables the Core BIOS Done Message. ◆Firmware Update Configuration ◆PTT Configuration Intel Platform Trust Technology (PTT) is a platform functionality for credential storage and key management used by Microsoft Windows ◆ME Debug Configuration Table 3.11. PCH-FW Configuration Item Option Disabled ME Status...
  • Page 38 Disabled ME Debug Configuration MBP HOB Skip Enabled Disabled ME Debug Configuration HECI2 Interface Communication Enabled Disabled ME Debug Configuration KT Device Enabled Disabled ME Debug Configuration IDER Device Enabled Disabled ME Debug Configuration End of Post Message Send in DXE Disabled ME Debug Configuration DOI3 Setting for HECI Disable...

  • Page 39: Amt Configuration

    ◆AMT Configuration Figure 3.13. AMT Configuration ◆AMT Configuration Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band. Table 3.12. AMT Configuration Item Option Disabled ASF Support Enabled Disabled USB Provisioning of AMT Enabled Disabled CIRA Configuration Activate Remote Assistance Process Enabled...
  • Page 40 Disabled OEM Flags Settings MEBx Selection Screen Enabled Disabled OEM Flags Settings Hide unconfigure ME Confirmation Prompt Enabled Disabled OEM Flags Settings MEBx OEM Debug Menu Enable Enabled Disabled OEM Flags Settings Unconfigure ME Enabled Auto MEBx Resolution Settings 80x25 Non-UI Mode Resolution 100x31 Auto...

  • Page 41: Trusted Computing

    ◆Trusted Computing Figure 3.14. Trusted Computing ◆Security Device Support This setting enables/disables BIOS support for security device. When set to [Disable], the OS will not show security device. TCG EFI protocol and INT1A interface will not be available Table 3.13. Trusted Computing Item Option Disabled...

  • Page 42: Serial Port Console Redirection

    ◆Serial Port Console Redirection Figure 3.15. Serial Port Console Redirection ◆Console Redirection Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables/disables the operation of console redirection. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen.

  • Page 43: Chipset

    Chipset Figure 3.16. Chipset Menu ◆DVMT Pre-Allocated This setting defines the DVMT pre-allocated memory. Pre-allocated memory is the small amount of system memory made available at boot time by the system BIOS for video. Pre-allocated memory is also known as locked memory.
  • Page 44 Table 3.15. Chipset Menu Item Option Description DVMT Pre-Allocated 32M/F7 128M DVMT Total Gfx Mem 256M VBIOS Default Primary IGFX Boot Display HDMI2 LVDS/eDP Enabled LVDS Disabled 800 x 600 & 18bit 1024 x 768 & 18bit 1024 x 768 & 24bit 1280 x 768 &...

  • Page 45: Power

    Power Figure 3.17 Power menu ◆Restore AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: [Power Off] Leaves the computer in the power off state.  [Power On] Leaves the computer in the power on state. ...
  • Page 46 ◆RTC When [Enabled], your can set the date and time at which the RTC (real-time clock) alarm awakens the system from suspend mode Table 3.16. Power Menu Item Option Description Power On Restore AC power Loss Power Off Last State Disabled Deep Sleep Mode S4 + S5...

  • Page 47: Save & Exit

    Save & Exit Figure 3.18 Save & Exit menu ◆Save Changes and Reset Save changes to CMOS and reset the system. ◆Discard Changes and Exit Abandon all changes and exit the Setup Utility. ◆Discard Changes Abandon all changes. ◆Load Optimized Defaults Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.

  • Page 48: 4．Each Component Function

    4．Each component function Power Control Button Reset Power on/off Table 4.1. Power Control Button Icon Function Power On/Off Button HDD LED (Red Color) *1 Power LED (Green Color) *2 Reset Button Note: *1: When HDD in accessed LED “light “ *2: Power On LED”...

  • Page 49: I/O Definition

    I/O Definition ◆I/O Connector CA-RU150 Series Table 4.2. CA- RU150P Series I/O Connection Number Component DisplayPort HDMI USB3.2 Gen1 (USB3.0) x 4 LAN x 2 12V DC Jack COM 2 (RS-232C) COM 1 (RS-232C/422A/485) USB2.0 x 1 CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 50: Power Connector

    ◆Power Connector Table 4.3. DC Power Input Connector Description + 12V DC - 12V DC Ground Ground ◆LAN RJ45 Connector CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 51: Usb 3.2 Gen1 Connector

    Table 4.4. LAN Pin Definition Description TX1+ TX1- TX2+ TX3+ TX3- TX2- TX4+ TX4- ◆USB 3.2 Gen1 Connector Pin 1 Pin 4 Table 4.5. USB 3.2 Gen1 Pin Definition Description USB D- USB D+ Ground USB RX- USB RX+ Ground USB TX- USB TX+ CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 52: Usb 2.0 Connector

    ◆USB 2.0 Connector Table 4.6. USB 2.0 Pin Definition Description USB D- USB D+ Ground ◆DisplayPort Table 4.7. DP Pin Definition Pin No. Symbol Pin No. Symbol Pin No. Symbol ML_Lane 0 (p) AUX_CH (p) ML_Lane 2 (n) ML_Lane 0 (n) ML_Lane 3 (p) AUX_CH (n) ML_Lane 1 (p)

  • Page 53: Hdmi Port

    ◆HDMI Port Table 4.8. HDMI Pin Definition Pin No. Symbol Pin No. Symbol Pin No. Symbol HDMI1 DATA2+ Ground HDMI1 DDC_SCL Ground HDMI1 DATA0- HDMI1 DDC_SDA HDMI1 DATA2- HDMI1 CLK+ Ground HDMI1 DATA1+ Ground HDMI1_5V Ground HDMI1 CLK- HDMI1 HPD HDMI1 DATA1- HDMI1 DATA0+ CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 54: Serial Port

    ◆Serial Port Table 4.9. Serial Port Pin Definition Description Pin No. Half Duplex Full Duplex RS-232C RS-422A RS-485 RS-485 DATA- DATA+ Ground Ground Ground Ground CA-RU150R30XG-3965U-01-W10 User’s Manual...

  • Page 55: 6．Lvds Backlight Brightness Control

    6．LVDS Backlight Brightness Control LVDS Backlight Brightness Control The LVDS controller support 17 level of backlight brightness value from 0 (30%) to 16 (100%) and it is accessible through SMBus. The associated access method (SMBus_ReadByte, SMBus_WriteByte) are provided in part 4. ◆Set the Level of LVDS Backlight Write 0xED into address 0x7F on SMBus device 0x42.

  • Page 56: 7．Watchdog Timer - Wdt

    7．Watchdog Timer – WDT Watchdog Timer – WDT The base address (WDT_BASE) of WDT configuration registers is 0xA10. ◆Set WDT Time Unit val = Inportb (WDT_BASE + 0x05); // Read current WDT setting val = val | 0x08; // minute mode. val = val & 0xF7 if second mode Outportb (WDT_BASE + 0x05, val) ;...

  • Page 57: Disable Wdt

    ◆Disable WDT val = Inportb (WDT_BASE + 0x05); // Read current WDT setting val = val & 0xDF; // Disable WDT by set WD_EN (bit 5) to 0. Outportb (WDT_BASE + 0x05, val); // Write back WDT setting. Check WDT Reset Flag If the system has been reset by WDT function, this flag will set to 1.

  • Page 58: List Of Options

    Precautions when using products other than our options - If a product other than our option is used, the normal operation may be impaired or the functions may be limited. * Check the CONTEC’s Web site for the latest information on these options. CA-RU150R30XG-3965U-01-W10 User’s Manual...
  • Page 59 CA-RU150R30XG-3965U-01-W10 User’s Manual CONTEC CO., LTD October 2022 Edition 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan https://www.contec.com/ All rights reserved. This product and this document are protected by copyright law. Unauthorized copying, duplication, reproduction, and tampering are prohibited. [10072022] [11302020] Management No...
