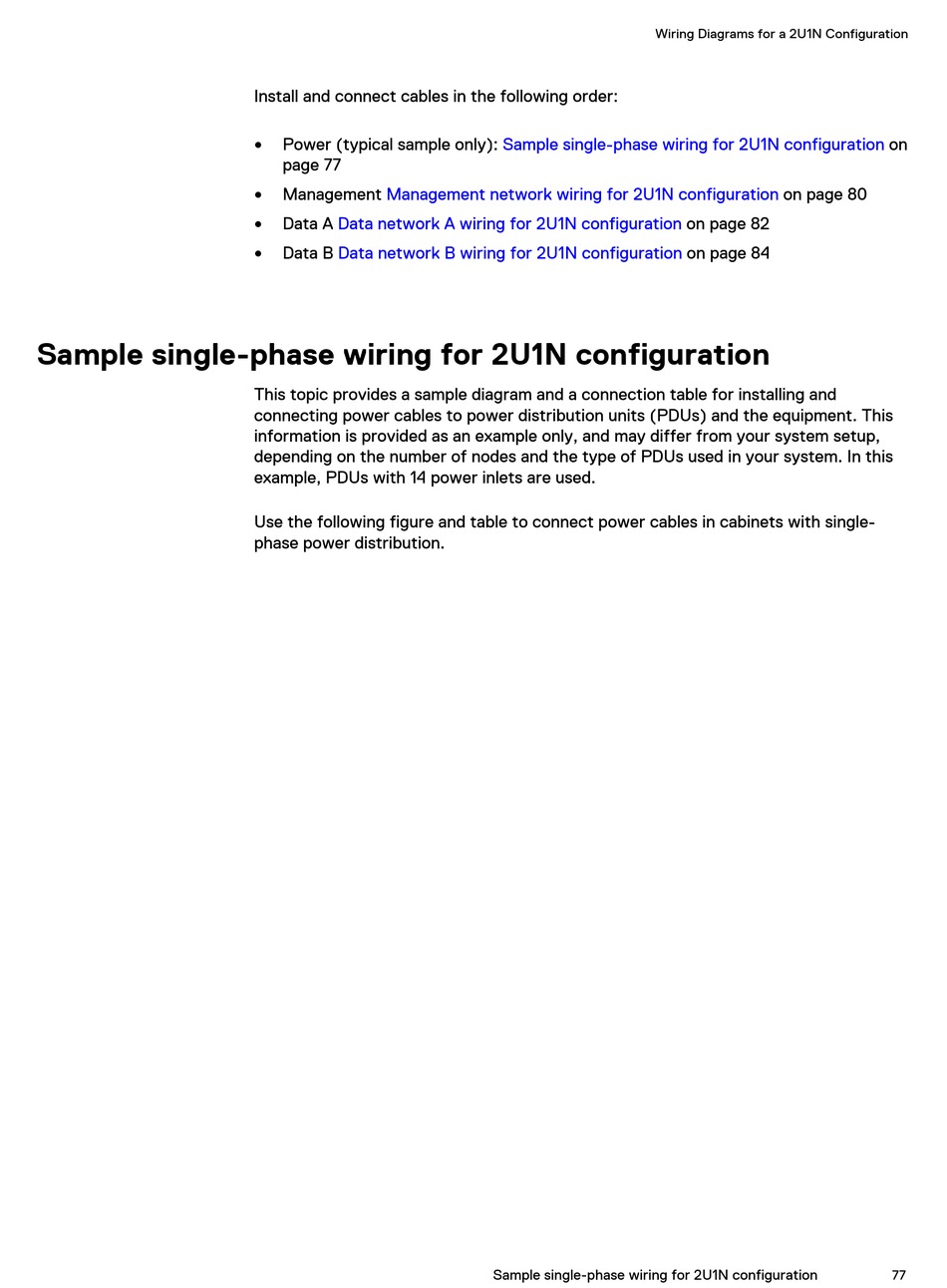

Sample single-phase wiring for 2U1N configuration

Install and connect cables in the following order:
Power (typical sample only):
l
page 77
Management Management network wiring for 2U1N configuration
l
Data A Data network A wiring for 2U1N configuration
l
Data B Data network B wiring for 2U1N configuration
l
This topic provides a sample diagram and a connection table for installing and
connecting power cables to power distribution units (PDUs) and the equipment. This
information is provided as an example only, and may differ from your system setup,
depending on the number of nodes and the type of PDUs used in your system. In this
example, PDUs with 14 power inlets are used.
Use the following figure and table to connect power cables in cabinets with single-
phase power distribution.
Wiring Diagrams for a 2U1N Configuration
Sample single-phase wiring for 2U1N configuration
Sample single-phase wiring for 2U1N configuration
on page 80
on page 82
on page 84
on
77
