1U1N Configuration Equipment Installation
Hardware Installation Guide
32
R640. The B13 sliding rail assembly (2U) is used for installation of the PowerEdge
R740xd.

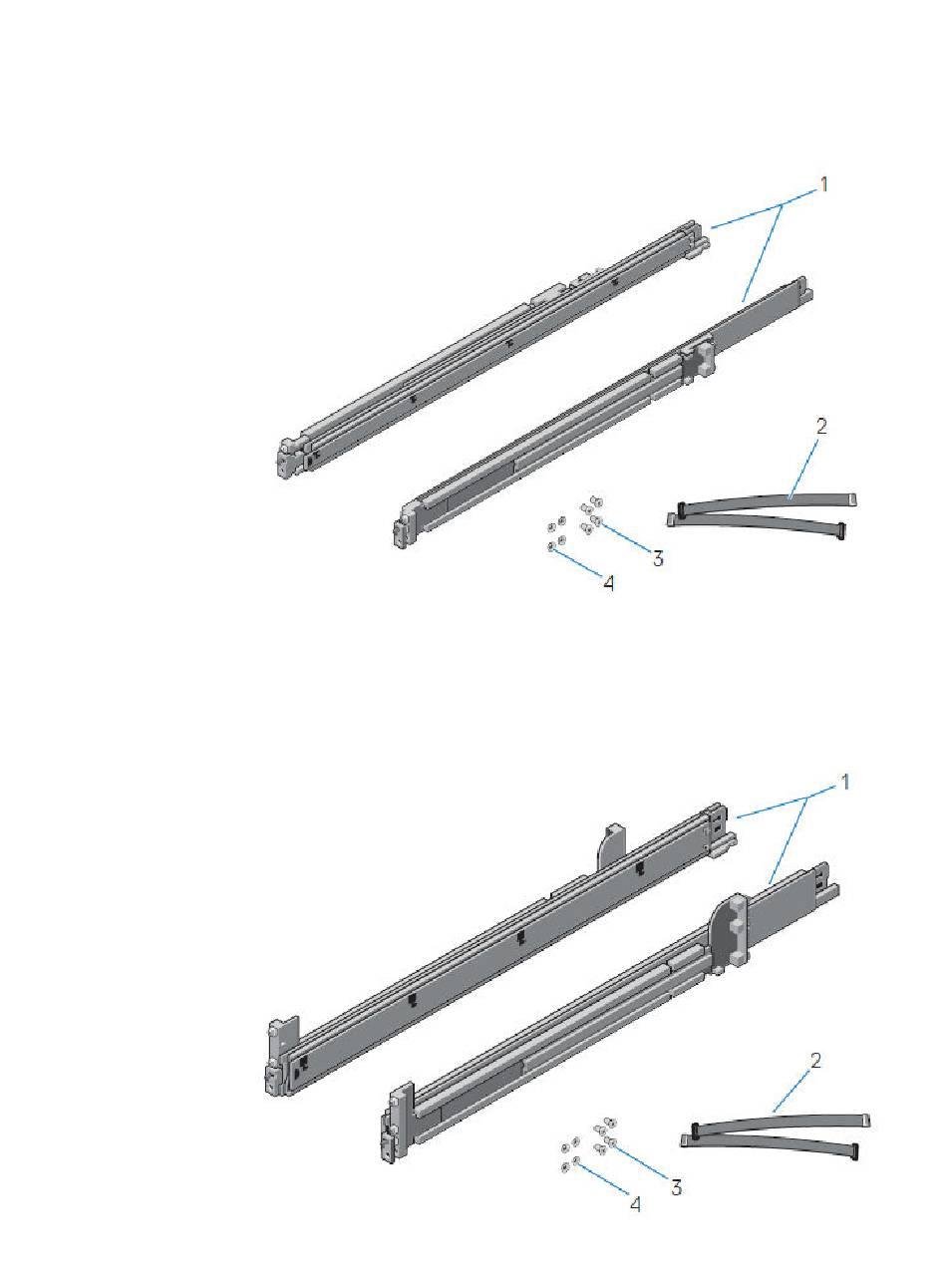

Figure 7 A10 sliding rail assembly - 1U systems
1. A10 sliding rail (2)
2. velcro strap (2)
3. screw (4)
4. washer (4)
Figure 8 B13 sliding rail assembly - 2U systems
