Install Data Network I/O Cables

Data network A, nodes 1 - 22 cabling example

Hardware Installation Guide
56
Use the following figure and table to connect cables for the data network A, nodes 1 -
22. The node ports referred to in this table are 10 G ports.
Note
In this example, data switch ports have been intentionally left empty. These empty
ports can be used for other user-allocated purposes. If no other use is required for the
empty ports, nodes may be connected to the data switches without leaving empty
ports. However, ensure that on each node, each NIC is connected to a different data
switch (either Data Switch A or Data Switch B), in order to prevent a single point of
failure in case a switch fails.

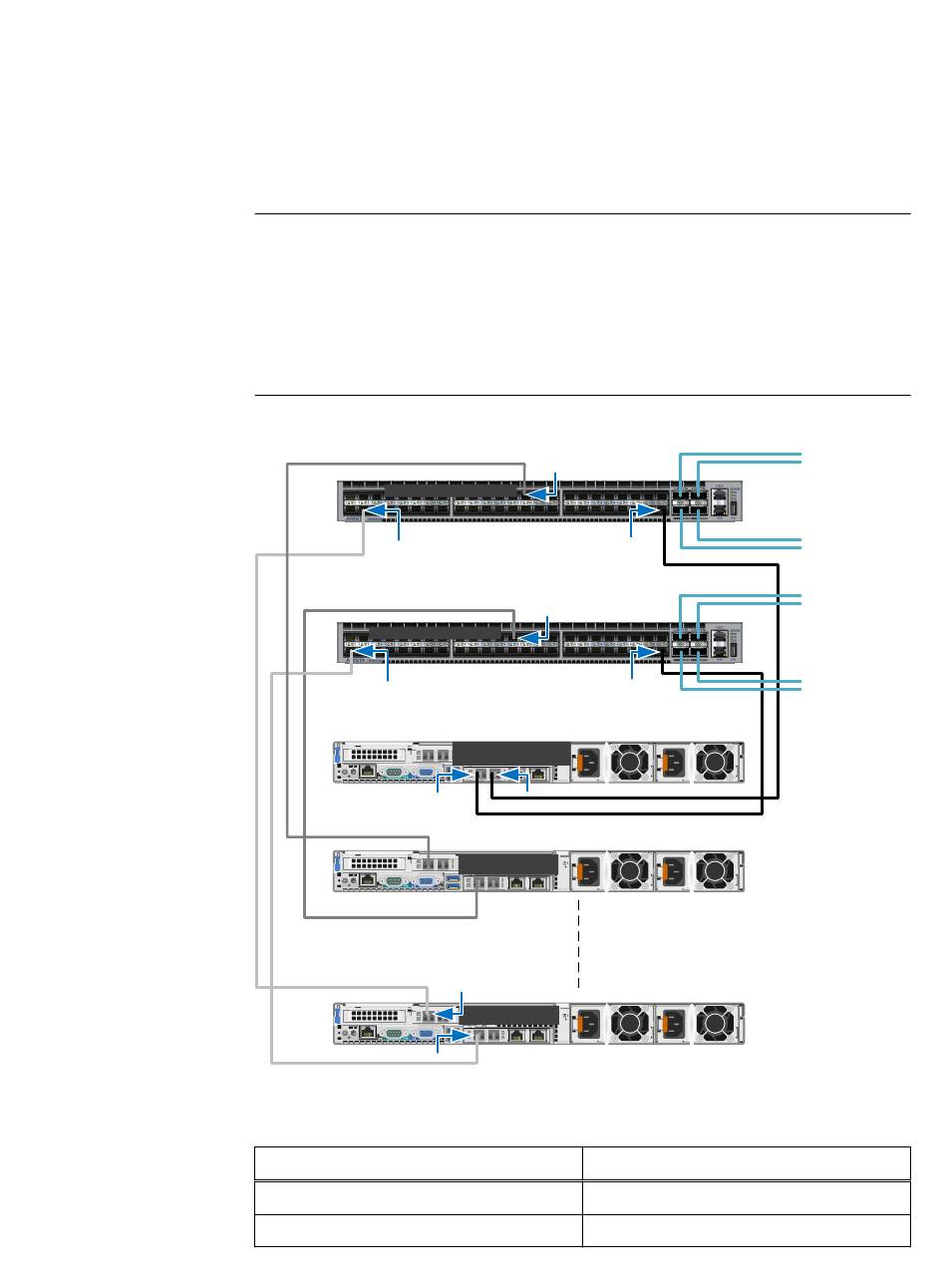

Figure 22 Data networks A and B cabling example
Data Switch B
4
Data Switch A
2
Table 13 Data A, nodes 1 - 22 cabling
Source
Node 1 Onboard Port 0
Node 2 Onboard Port 0
27
25
Mgmt Server
1
0
Node 16
2
Node 1
0
Destination
Data Switch A Port 2
Data Switch A Port 6
48
48
40 G link to
core switch
40 G link to
core switch
40 G link to
core switch
40 G link to
core switch
