IPL EXP PDU4H • Setup Guide (Continued)

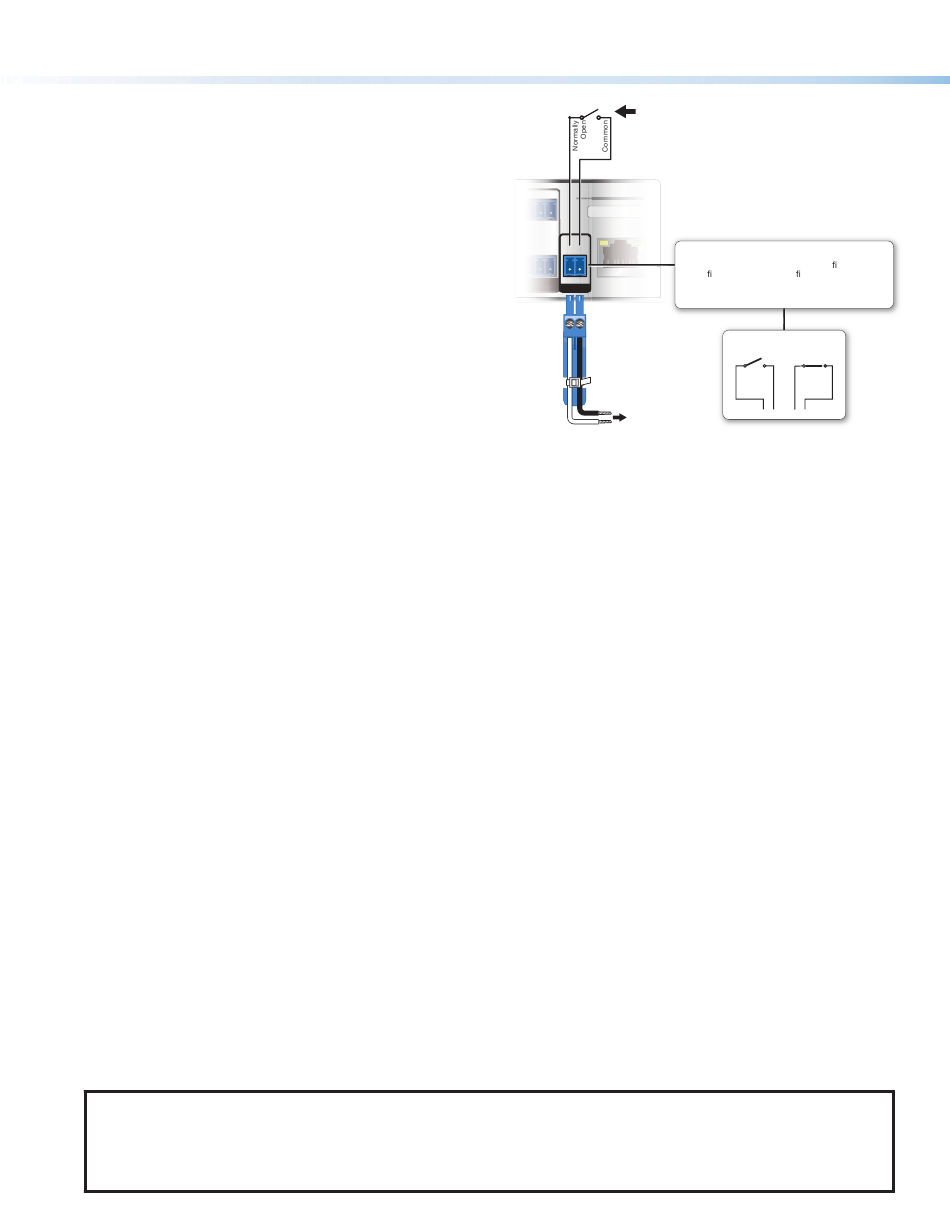

Control, Unidirectional — Relay Output
Connect this port to a notification device to allow visual
or audio alerts for conditions such as power output shutdown
(once the port conditions, events, and notifications are
configured).
SIS-Over-SSH Mode
Using manual control mode, the IPL EXP PDU4H does not need to be configured, nor connected to a network, in order to control
the on/off state of the AC output ports. Manual control mode takes precedence over the other two operation modes.
SIS-over-SSH mode requires a network connection. It allows the user to communicate with non-Extron devices using
Simple Instruction Set (SIS) commands via SSH port 22023. It also permits you to set basic unit functions and settings and
to send information queries to the unit. This mode is enabled at the factory. When SIS-over-SSH mode is enabled and the
IPL EXP PDU4H is connected to the network, the unit is able to respond to SIS commands and information queries. See "SIS
Control and Configuration" in the IPL EXP PDU4H User Guide for details about the Simple Instruction Set commands that can be
used with the unit.
SIS-over-SSH is disabled only when the IPL EXP PDU4H is part of an Extron control system (when you deploy a Global
Configurator or Global Scripter project that includes the IPL EXP PDU4H). Once the unit is configured or programmed as part
of an Extron control system, the SIS-over-SSH mode is disabled and the SPD mode is automatically enabled. All SIS-over-SSH
requests (aside from the query about the current mode of operation) will be unsuccessful, and will return error code 37: Invalid
command while in SPD mode.
To re-enable the SIS-over-SSH mode of operation, the user must clear or remove pairing information from the IPL EXP PDU4H by:
•
Applying a Toolbelt reset to the unit
•
Removing the paired primary controller information from the IPL EXP System tab
•
Performing a Reset to Factory Defaults reset
Resources
Obtaining Instructions, Information, and Assistance
A checklist of basic setup steps is provided at the beginning of this guide. For additional information see the help files and the
IPL EXP PDU4H User Guide, available at www.extron.com.
If you have questions during installation and setup, call the
Systems Support Hotline (1.800.633.9877).
Locating Software, Firmware, and Driver Files on the Extron Website
There are three main ways to find software, firmware, and device drivers within www.extron.com:
•
Via links from the web page for the specific product
•
Download page (Click on the Download tab at the top of any page within www.extron.com.)
Via the
•
Via links from search results
NOTE:
For some software you have the option to click the Download Now button to begin downloading the software file. For
other software there is a link for contacting an Extron support representative who can provide you access to the latest version.
To obtain Extron control product software, you must have an Extron Insider account. Extron provides training to our
customers on how to use the software. Access to the full features of Global Configurator Professional is available to those
who successfully complete Extron Control Professional Certification.
8
Rear
Panel
IPL L L E E E X X X X P P P P P DU4
1 2 G G G G
M M A A C C : : 0 0 0 0 0 -0 0 5 5 -A6 6 -XX X -XX-
S/ / / N: # # # # ## # # # # ## # E# # ###
L L A A N A A
3 4 G G G G G N O C
M A NUAL
C O NTRO L R E L A Y
Notification
Equipment
Extron Sales & Technical Support Hotline
Relay is
normally open.
4 H
- XX
# ##
Relay
• Connect device for relay alert noti cations.
Con gure via Global Con gurator,
Global Scripter, or SIS).
• Do not exceed a total of 24 V, 1 A for the port.
Normally
Closed
Open
To
or the Extron S3 Control
