IPL EXP PDU4H • Setup Guide (Continued)

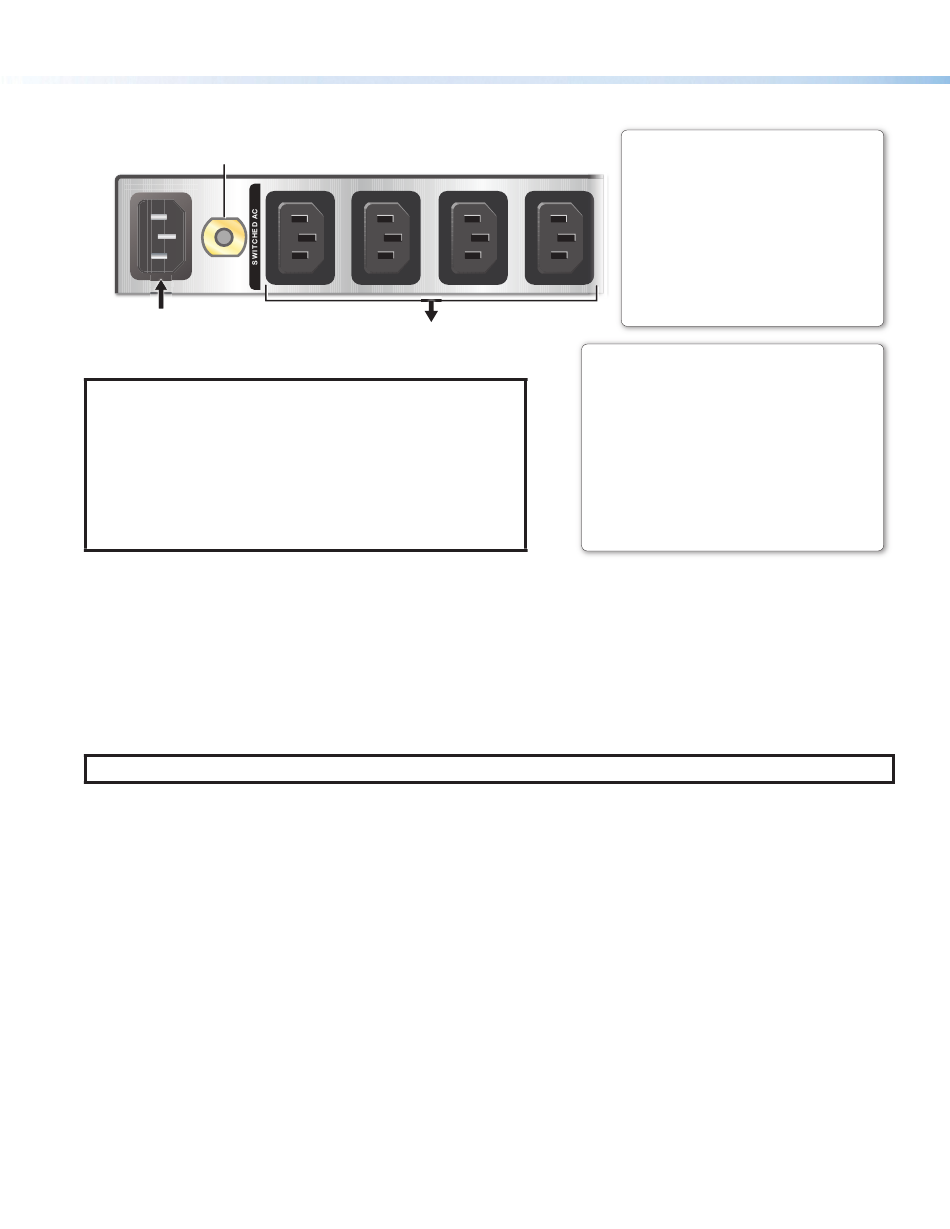

Power Output — Switched AC Power Output
Circuit Breaker
(power output
overcurrent protection)
Rear Panel
100 0 /240V ~ ~ 12/10A MAX
BREAKER
5 50 0 0-60 0-60 0-60 0-60 0 -60 0-60 0-60 0-60 -60 -60 -60 -60 -60 -60 -60 -60 -60 -60 -60 -6 -60 -60 -60 -60 -60 -60 6 6 60 60 60 6 0 0 H H H H H H H H H H H Hz H H H z
120 VAC or 240 VAC,
50-60 Hz
Input
NOTES:
•
Within the United States of America use a power supply cord
with conductors that are a minimum diameter of 17 AWG.
•
For international installations, use a power supply cord with
conductors that are a minimum of 1.0 mm
•
Make sure that the device being controlled can support an
AC power cycle.
•
In case of emergency, disconnect AC power from the
power input (appliance inlet) of the connected equipment.
The four switched AC output ports remain on as long as there is no overload condition. Output power capacity has an aggregate
limit of 12 A at 120 VAC or 10 A at 240 VAC, maximum, total for all switched AC ports. The ports are monitored continuously for
total combined power draw.
The IPL EXP PDU4H (and the IPCP Pro Q xi or xi) can be configured (using Global Configurator or Global Scripter) to monitor
the power output conditions and to alert users in the event of a power fault interruption. The system can be set up to monitor
the circuit breaker and also the combined current load at the switched AC power output ports. The AC current value and circuit
breaker status are shown in the IPL EXP PDU4H embedded web page.
Power output can be toggled on and off using manual contact closure control, SIS commands, or controls in the embedded web page.
NOTE:
The power output state setting persists after and is retained during a power cycle.
6
1 2 3
To AC power input
ports on AV devices
.
2
Switched AC Power Output
Connect AC powered products to these four ports
using a standard IEC power cord, or use an Extron
IEC-to-Edison cable kit if your devices require
NEMA 5-15R receptacles.
4
• Output voltage: 120/240 VAC, 50-60 Hz
• Maximum AC load:
12 A at 120 VAC or 10 A at 240 VAC
• Current sense:
0 A to 12 A, 100 mA resolution, ≤6% tolerance
• Surge protection: Single-stage – multiple MOVs
• Surge energy dissipation: 1750 joules (10/1000 µs)
These outputs can be controlled via software,
controls in the embedded web page, SIS commands
(sent via SSH) or by a keypad or switch connected to
the Manual Control contact closure port.
Sortie Electrique Commutée
Connectez les produits alimentés à ces quatre ports à l'aide
d'un cordon électrique IEC standard, ou utilisez un lot de
câbles IEC/Edison Extron si vos appareils nécessitent des
prises NEMA 5-15R.
• Tension de sortie : 120/240 VAC, 50-60 Hz
• Charge CA maximale : 12 A à 120 VAC ou 10 A à 240 VAC
• Détection de courant : 0 A à 12 A, résolution 100 mA,
tolérance ≤6%
• Protection contre les surtensions : plusieurs
parasurtenseurs à un étage
• Dissipation de l'énergie en cas de surtension : 1 750 joules
(10/1 000 µs)
Plusieurs sorties peuvent être contrôlées via un logiciel, des
contrôles dans la page Web embarquée, des commandes SIS
(envoyées via SSH), ou via un clavier ou un switch connecté
au port de Manual Control avec contact sec.
