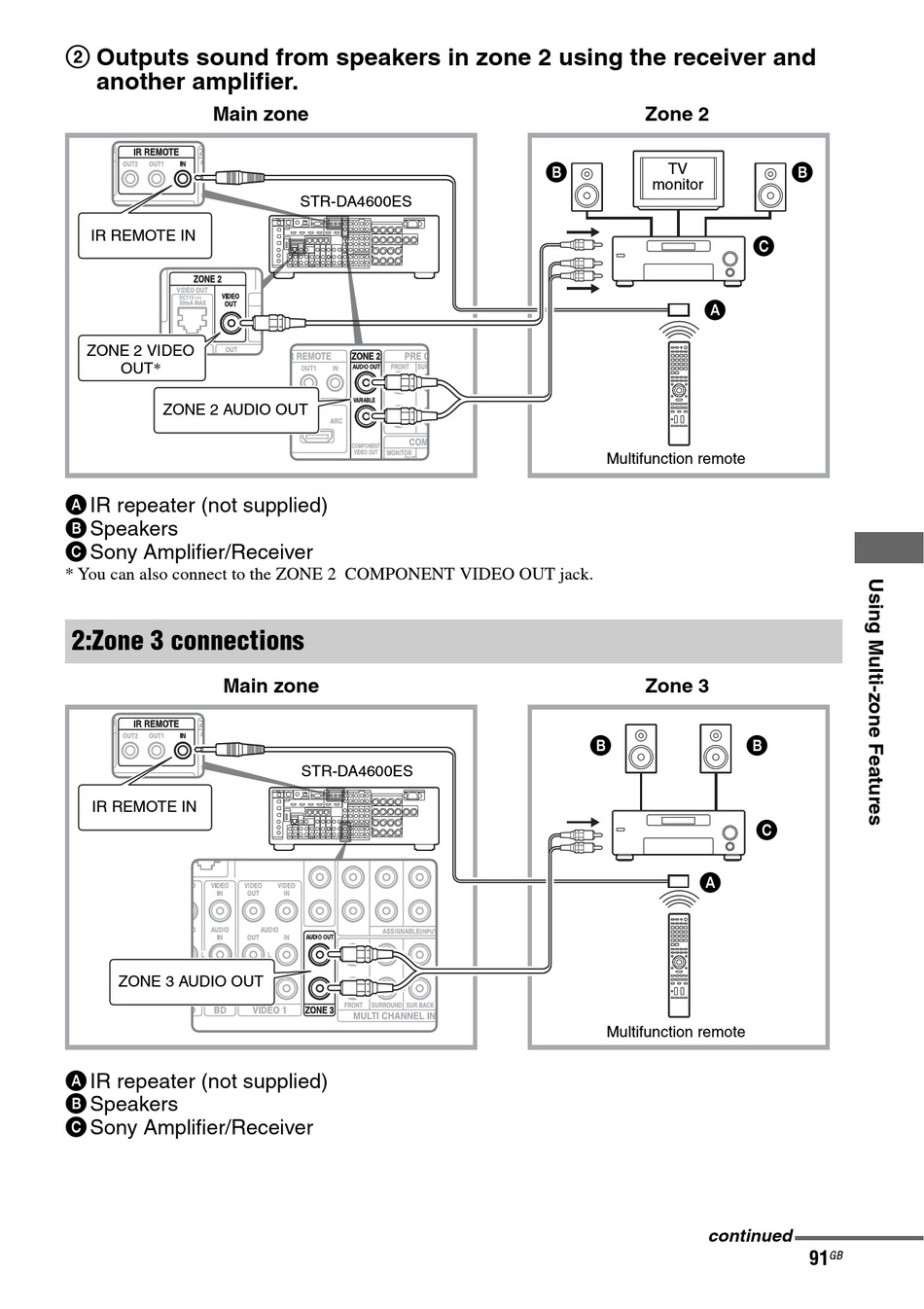

2 Outputs sound from speakers in zone 2 using the receiver and
another amplifier.
Main zone
IR REMOTE IN
ZONE 2 VIDEO
OUT*
ZONE 2 AUDIO OUT
A IR repeater (not supplied)
B Speakers
C Sony Amplifier/Receiver
* You can also connect to the ZONE 2 COMPONENT VIDEO OUT jack.
2:Zone 3 connections
Main zone
IR REMOTE IN
ZONE 3 AUDIO OUT
A IR repeater (not supplied)
B Speakers
C Sony Amplifier/Receiver
STR-DA4600ES
STR-DA4600ES
Zone 2
TV
B
monitor
A
Multifunction remote
Zone 3
B
A
Multifunction remote
continued
B
C
B
C
91 GB
