4.3
Installing/Removing Power Supply Modules
The RUGGEDCOM RX5000 supports dual redundant power supplies that can be
installed in any combination.
1
30
Insert the new module into the slot.
1
2
3
Chassis
1
Module
2
Screw
3

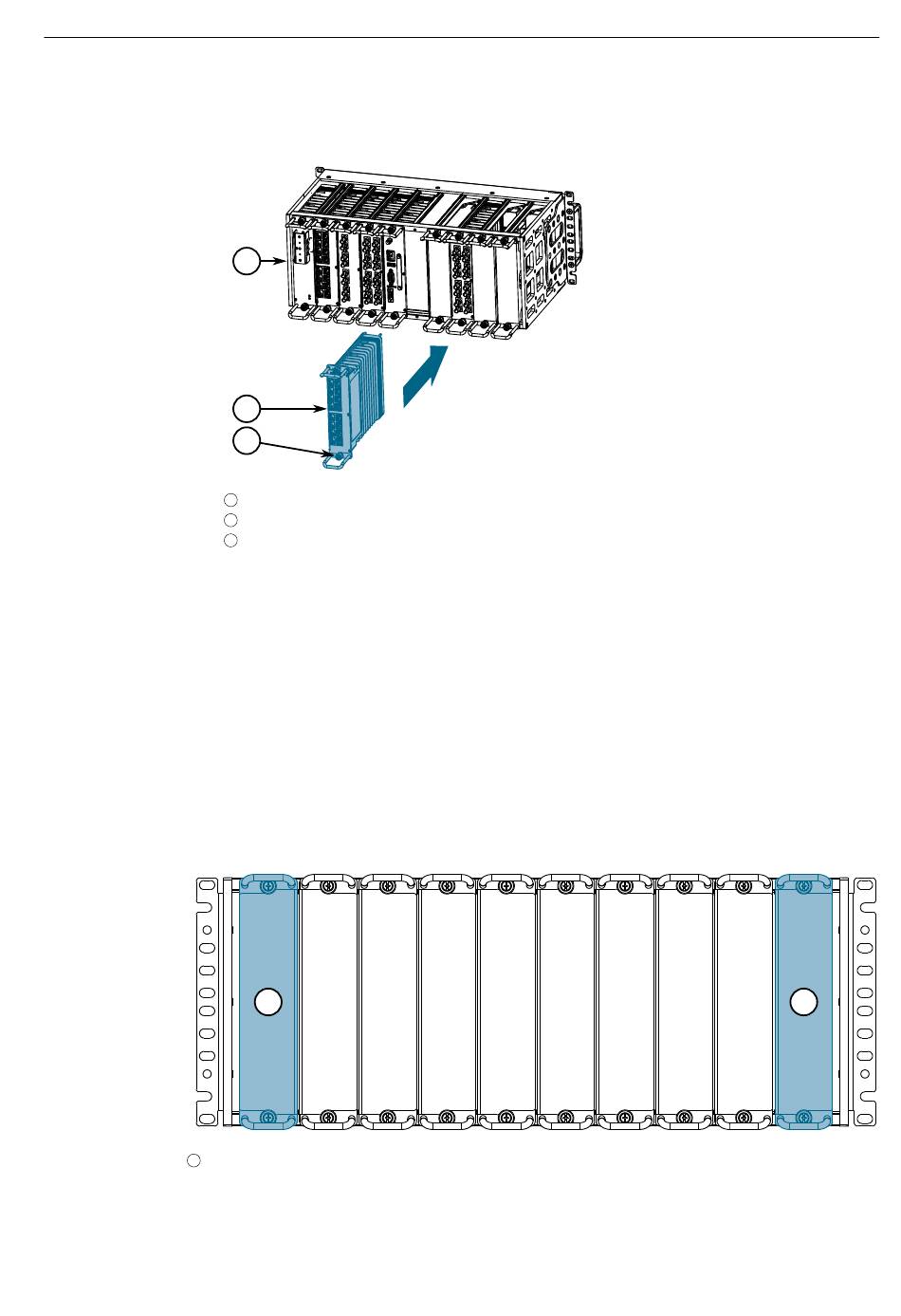

Figure 4.4
Installing a Module
Tighten the screws to secure the module.
[Optional] If necessary, install the device in the rack.
For control and switch modules only, connect power to the device.
1
Power Supply Module (PS1)
2
RUGGEDCOM RX5000
Installation Manual, 01/2021, C79000-G8976-1058-13
