1. Thread the loop F through the fixation on the chair G
and then through BOTH plastic buckles H.

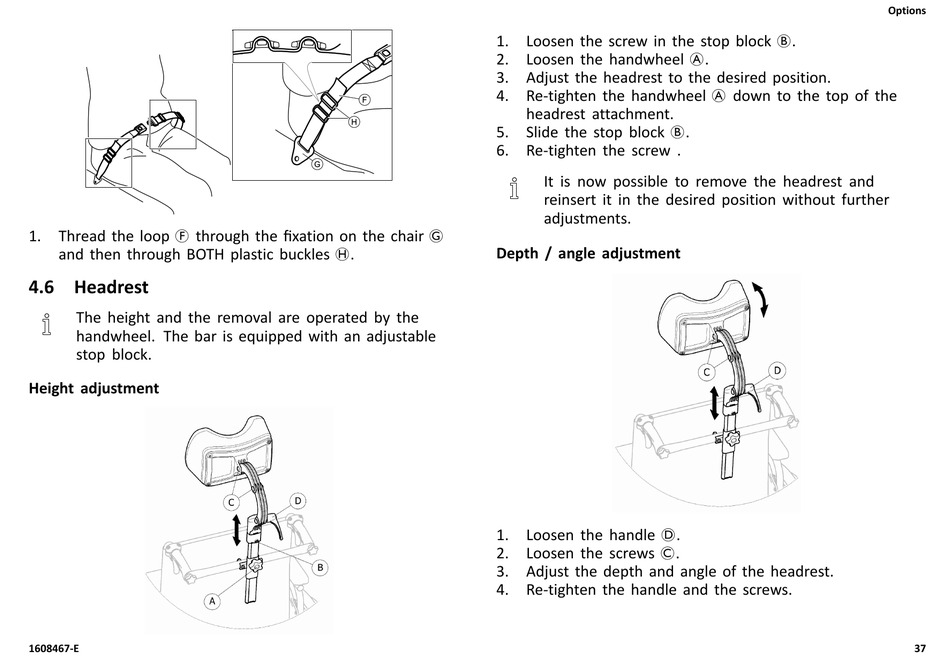

4.6 Headrest
The height and the removal are operated by the
handwheel. The bar is equipped with an adjustable
stop block.
Height adjustment
1608467-E
1. Loosen the screw in the stop block B.
2. Loosen the handwheel A.
3. Adjust the headrest to the desired position.
4. Re-tighten the handwheel A down to the top of the
headrest attachment.
5. Slide the stop block B.
6. Re-tighten the screw .
It is now possible to remove the headrest and
reinsert it in the desired position without further
adjustments.
Depth / angle adjustment
1. Loosen the handle D.
2. Loosen the screws C.
3. Adjust the depth and angle of the headrest.
4. Re-tighten the handle and the screws.
Options
37
