AT&T TL90076 User Manual

Dect 6.0 expansion handset for use with at&t models tl96276/tl96456 with bluetooth wireless technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

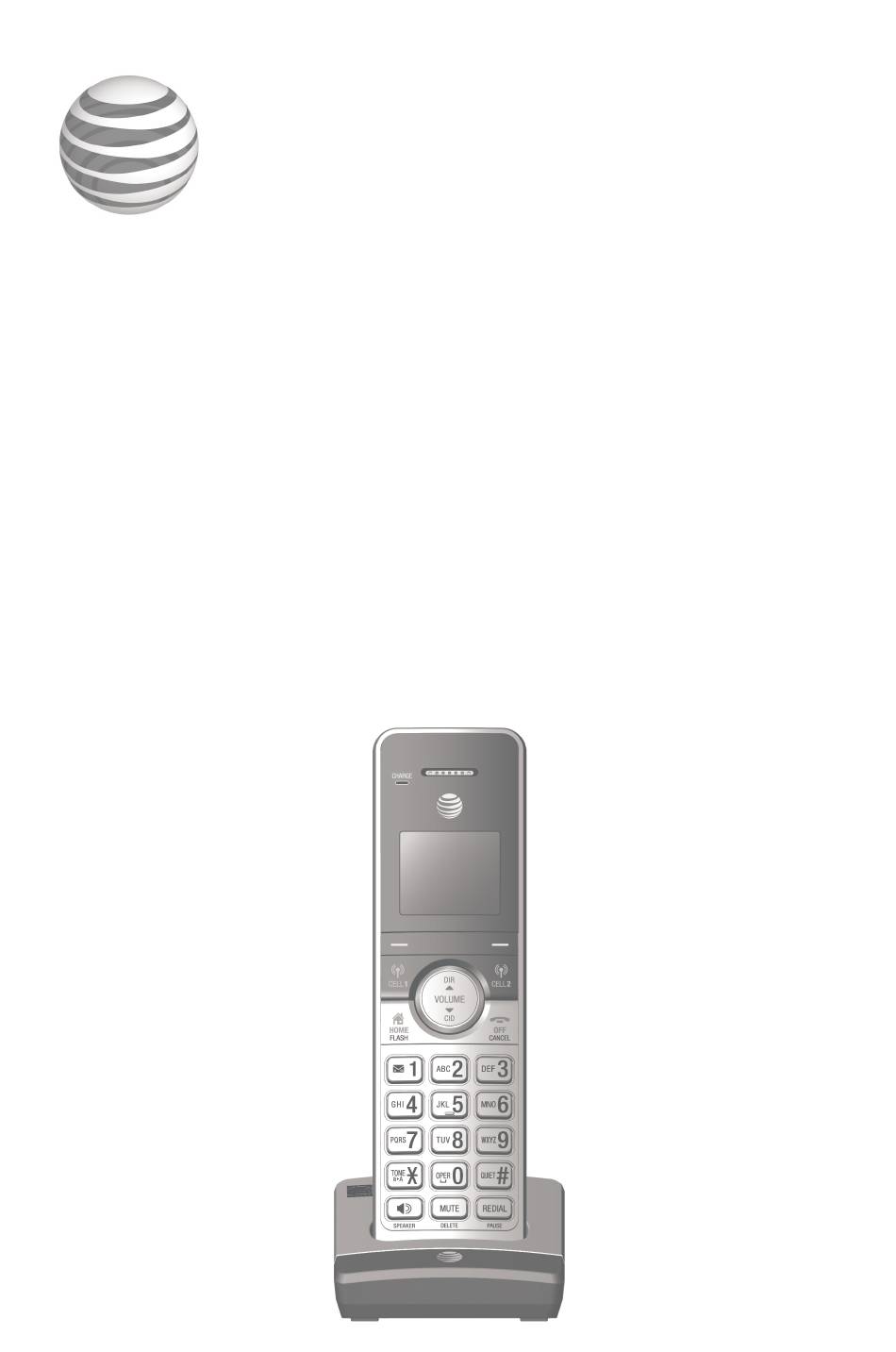

User's manual
TL90076
DECT 6.0 expansion handset
for use with AT&T models
TL96276/TL96456
with BLUETOOTH® wireless technology

Advertisement

Table of Contents
loading

Related Manuals for AT&T TL90076

Summary of Contents for AT&T TL90076

  • Page 1 User’s manual TL90076 DECT 6.0 expansion handset for use with AT&T models TL96276/TL96456 with BLUETOOTH® wireless technology...
  • Page 2 This telephone meets the California Energy Commission regulations for energy consumption. Your telephone is set up to comply with the energy–conserving standards right out of the box. No further action is necessary. Model number: TL90076 Type: DECT 6.0 expansion handset Serial number: ________________________________________________...
  • Page 3 Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. User’s manual TL90076 DECT 6.0 expansion handset for use with AT&T models TL96276/TL96456 with BLUETOOTH® wireless technology User’s manual...

  • Page 4: Table Of Contents

    User’s manual TL90076 DECT 6.0 expansion handset for use with AT&T models TL96276/TL96456 with BLUETOOTH® wireless technology Table of contents Getting started For C-UL compliance ......26 Mesures de sécurité Installation ..........1 importantes ........26 Quick reference guide ......2 FCC Part 68 and ACTA...... 30 Charger installation .......5...

  • Page 5: Getting Started

    Getting started Installation You must install and See pages 6-8 for easy charge the battery before instructions. using the cordless handset. Your product may be shipped with a protective sticker covering the handset or telephone base display - remove it before use. For customer service or product information, visit our website at www.telephones.att.com 1 (800) 222-3111...

  • Page 6: Quick Reference Guide

    Getting started Quick reference guide CHARGE light • On when the handset is charging in the telephone base or charger. Softkeys (2) • Press to select the menu item displayed above the key. • While in a menu, press to select an item or save an entry or setting, cancel an operation, or back up to the previous menu.
  • Page 7 Getting started Quick reference guide DIR/VOLUME • Press to show directory entries when the telephone is not in use. • Press to scroll up while in menus. • Press to increase the listening volume when on a call, or increase the message playback volume. •...
  • Page 8 Getting started Quick reference guide Handset PUSH TO TALK side view • Press to initiate a one-to-one or one-to-group broadcast. • Press and hold to broadcast to a group of system devices. VOICE • Press to activate the voice-controlled application of connected cell phone. Main menu Feature menu The selected menu...

  • Page 9: Charger Installation

    Getting started Charger installation Install the charger, as shown below. Plug the power adapter into an power outlet not controlled by a wall switch. IMPORTANT INFORMATION • Use only the power adapter(s) provided with this product. To obtain a replacement, visit our website at www.telephones.att.com 1 (800) 222-3111 or call...

  • Page 10: Battery Installation And Charging

    Getting started Battery installation and charging Install the battery, as shown on pages 7 and 8. Once you have installed the battery, the screen indicates the battery status (see the following table). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use.
  • Page 11 Getting started Battery installation and charging Plug the battery connector securely into the socket inside the handset battery compartment. Insert the supplied battery with the label THIS SIDE UP facing up, as indicated. Align the cover flat against the battery compartment, then slide it upwards until it clicks into place.
  • Page 12 Getting started Battery installation and charging Charge the handset by placing it face forward in the telephone base or charger. The CHARGE light on the top of the handset is on during charging. CHARGE light To replace the battery, press the tab and slide the battery compartment cover downwards.

  • Page 13: Registration And Deregistration

    Registration and deregistration Add and register handsets Before using a new TL90076 handset, make sure it is registered with an AT&T TL96276/TL96456 telephone system (purchased separately). These telephone systems can support up to 12 handsets. The handset(s) provided with your telephone system are already registered as HANDSET 1, and so forth.
  • Page 14 Registration and deregistration Add and register handsets If registration fails, the system will automatically try to register again. If registration fails after the third try, Registration failed appears on both screens. The handset shows To register, see user manual and the telephone base returns to idle mode. This may take up to five minutes to occur.

  • Page 15: Deregister Handsets

    Registration and deregistration Deregister handsets You may need to deregister your handsets if: • You have 12 registered handsets and need to replace a handset. -OR- • You wish to change the designated handset number of your registered handsets. You must first deregister ALL handsets, and then register each handset you wish to use again, one at a time.

  • Page 16: Appendix

    Appendix Troubleshooting If you have difficulty with your telephone, please try the following suggestions. For customer service, visit our website at www.telephones.att.com 1 (800) 222-3111 , or call 1 (866) 288-4268 In Canada, dial The handset registration is unsuccessful. • Follow the handset registration instructions to register the handset again (see Add and register handsets on pages 9-10).
  • Page 17 Appendix Troubleshooting The remote voice control feature does not work. • Make sure the operating system of your cell phone is iOS 8 or later, or Android® 4 or later. • Make sure your cell phone is paired and connected to your TL96276/TL96456 telephone system via Bluetooth.
  • Page 18 Appendix Troubleshooting • Some cell phone manufacturers or network carriers may customize the phone’s operating system and implement their own voice app. If you want to use Google Now, you need to manually set it as your default voice app. For detailed instructions, refer to your cell phone user’s manual, or contact your cell phone’s manufacturer or network carrier.
  • Page 19 Appendix Troubleshooting The display shows No home line. I cannot get a dial tone. • First, try all the suggestions mentioned above. • If the previous suggestions do not work, disconnect the telephone line cord from your telephone and connect the telephone line cord to another telephone.
  • Page 20 Appendix Troubleshooting My handset isn’t performing normally. • Make sure the power cord is securely plugged into the telephone base. Plug the power adapter into a different working electrical outlet not controlled by a wall switch. • Move the handset closer to the telephone base. You might have moved out of range.
  • Page 21 Appendix Troubleshooting The batteries do not hold a charge. • If the handset is in the charger and the charge light does not turn on, refer to The charge light is off on page 21 in this Troubleshooting guide. • Charge the battery in the handset for at least 11 hours.
  • Page 22 Appendix Troubleshooting • Do not install this phone near a microwave oven or on the same electrical outlet. You may experience decreased performance while the microwave oven is operating. • If your phone is plugged in with a modem or a surge protector, plug the phone (or modem/surge protector) into a different location.
  • Page 23 Appendix Troubleshooting • The layout of your home or office might be limiting the operating range. Try moving the telephone base to another location, preferably on an upper floor. • If the other phones in your home are having the same problem, contact your telephone service provider (charges might apply).
  • Page 24 Appendix Troubleshooting • If other phones in your home are having the same problem, contact your telephone service provider (charges may apply). My caller ID isn’t working. • Caller ID is a subscription service. You must subscribe to this service from your telephone service provider for this feature to work on your phone.
  • Page 25 Appendix Troubleshooting • In a few rare instances, the USB port on your computer may not have enough power. In these instances, try using a USB hub with its own external power supply. • If you are using a firewall, it may prevent access to your nontraditional telephone service provider.

  • Page 26: Maintenance

    Appendix Maintenance Taking care of your telephone • Your cordless telephone contains sophisticated electronic parts, so it must be treated with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it.

  • Page 27: Important Safety Information

    Appendix Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock.

  • Page 28: Especially About Cordless Telephones

    Appendix Important safety information CAUTIONS: • Use only the power adapters provided with this product. To obtain a www.telephones.att.com replacement, visit our website at , or call 1 (800) 222–3111 1 (866) 288-4268 . In Canada, dial • Use only the supplied rechargeable battery or replacement battery (model BT183342/ www.telephones.att.com BT283342).

  • Page 29: Precautions For Users Of Implanted Cardiac Pacemakers

    Appendix Important safety information The RBRC® Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel- metal hydride rechargeable batteries when taken out of service within the United States. These batteries may be taken to a participating local retailer of replacement batteries or recycling center.

  • Page 30: For C-Ul Compliance

    Appendix For C-UL compliance In compliance with the bilingual requirements for safety, caution, and war nin g marki ngs o f Canadian Federal and Provincial/Territorial statutes and regulations, the French version of Important safety information is included. Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation.
  • Page 31 Appendix For C-UL compliance • Si le produit ne fonctionne pas correctement, consultez la section Dépannage (Troubleshooting) des pages 12-21 de ce guide d’utilisation. Si vous ne pouvez pas régler le problème, ou si le produit est endommagé, consultez la section Garantie limitée (Limited warranty) des pages 34-35.
  • Page 32 Appendix For C-UL compliance Spécifiquement en rapport avec les téléphones sans fil • Confidentialité : Les mêmes caractéristiques qui rendent les téléphones sans fil si pratiques créent également des restrictions. Les appels téléphoniques sont transmis entre le socle du téléphone et le combiné par le biais d’ondes radio, et il se peut que vos conversations téléphoniques soient interceptées par d’autres équipements de réception d’ondes radio au sein de la portée du téléphone sans fil.
  • Page 33 Appendix For C-UL compliance Mesures préventives pour les utilisateurs de stimulateurs cardiaques implantés dans l’organisme Stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) : L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche indépendante, a mené une évaluation pluridisciplinaire des interférences entre les téléphones sans fil portatifs et les stimulateurs cardiaques implantés dans l’organisme.

  • Page 34: Fcc Part 68 And Acta

    Appendix FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX.
  • Page 35 Appendix FCC Part 68 and ACTA Industry Canada This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 36: Fcc Part 15

    Appendix FCC Part 15 NOTE: This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation.

  • Page 37: California Energy Commission Battery Charging Testing Instructions

    Appendix California Energy Commission battery charging testing instructions This telephone is set up to comply with the energy-conserving standards right out of the box. These instructions are intended for California Energy Commission (CEC) compliance testing only. When the CEC battery charging testing mode is activated, all telephone functions, except handset battery charging, will be disabled.

  • Page 38: Limited Warranty

    Appendix Limited warranty The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to our website at www.telephones.att.com 1 (800) 222-3111 or call . In 1 (866) 288-4268 Canada, dial What does this limited warranty cover? The manufacturer of this AT&T branded product warrants to the holder of a valid...
  • Page 39 Appendix Limited warranty • PRODUCT to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or • PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or •...
  • Page 40 Appendix Limited warranty Other limitations This warranty is the complete and exclusive agreement between you and the manufacturer of this AT&T branded PRODUCT. It supersedes all other written or oral communications related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT. The warranty exclusively describes all of the manufacturer’s responsibilities regarding the PRODUCT.

  • Page 41: Technical Specifications

    Appendix Technical specifications RF frequency band 1921.536MHz — 1928.448MHz Channels Handset battery 2.4 VDC, AAA x 2, Ni-MH Charger voltage 6VDC @400mA (AC adapter output) Operating times* Talk time (handset): up to 7 hours Talk time (speakerphone): up to 5 hours Standby: up to 7 days * Operating times vary depending on your actual use and the age of the battery.
  • Page 42 www.telephones.att.com The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
