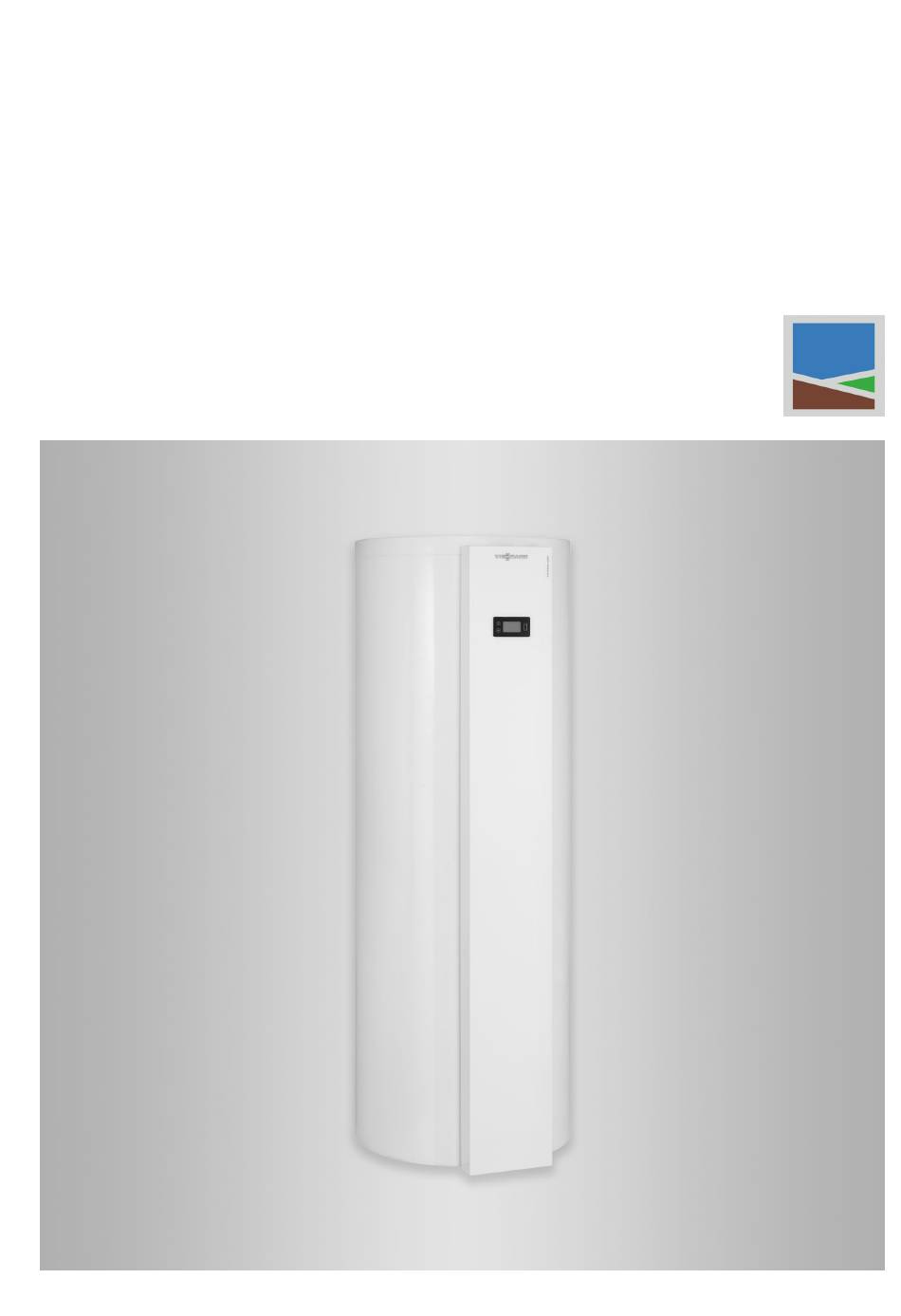

VIESMANN
Operating instructions
for the system user
DHW heat pump
Type T0E 060-A with immersion heater EHE
VITOCAL 060-A
Please keep safe.
5593131 GB
5/2018

Advertisement

Table of Contents
loading

Related Manuals for Viessmann VITOCAL 060-A

Summary of Contents for Viessmann VITOCAL 060-A

  • Page 1 VIESMANN Operating instructions for the system user DHW heat pump Type T0E 060-A with immersion heater EHE VITOCAL 060-A Please keep safe. 5593131 GB 5/2018...
  • Page 2 Safety instructions For your safety Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained Danger Note This symbol warns against the risk of injury. Details identified by the word "Note" contain additional information. Please note This symbol warns against the risk of material losses and environmental pollution.
  • Page 3 Safety instructions For your safety (cont.) Conditions for siting Danger Please note Easily flammable liquids and materials (e.g. Unsuitable ambient conditions can lead to sys- naphtha, solvents, cleaning agents, paints or tem damage and can put safe operation at risk. paper) can cause deflagration and fire.

  • Page 4: Table Of Contents

    Index Index 1. Introductory information Symbols ....................Intended use ..................Product information ................Vitocal 060-A, type T0E ..............■ Commissioning ..................Permissible air intake temperatures ........... ■ Your system is preset at the factory ............Energy saving tips ................. Tips for greater comfort .................
  • Page 5 Index Index (cont.) 10. Keyword index ........................ 25...
  • Page 6 Introductory information Symbols Symbol Meaning Reference to other document containing further information Step in a diagram: The numbers correspond to the order in which the steps are carried out. Warning of material losses and environ- mental pollution Live electrical area Pay particular attention.

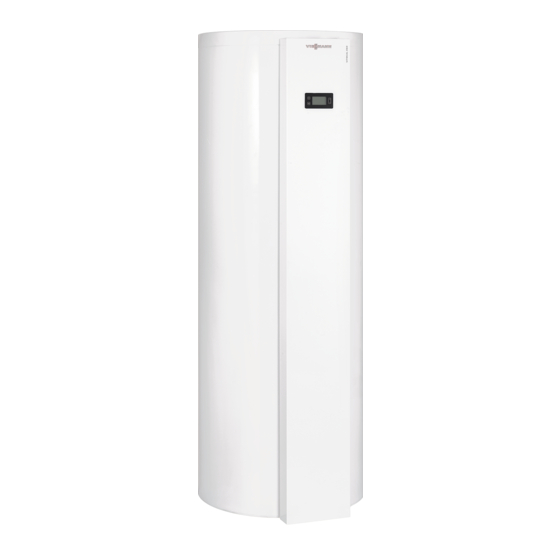

  • Page 7 Introductory information Product information Vitocal 060-A, type T0E The Vitocal 060-A, type T0E, is a DHW heat pump with Recirculation air mode with air discharge to the integral DHW cylinder. outside The heat pump uses the thermal energy in the indoor or outdoor air for DHW heating.
  • Page 8 Introductory information Energy saving tips ■ DHW consumption: Utilisation of power generated on site (in conjunc- Consider showering instead of running a bath. A tion with a photovoltaic system) shower generally uses less energy than a full bath. Low DHW demand (see page 16): Use the power generated by your photovoltaic sys- ■...
  • Page 9 Control unit operation Programming unit Default display Fig. 1 +/− Scrolls through the menu or adjusts values. OK Confirms your selection or saves the setting made. ■ Selects the operating program. ■ Calls up time programs. ■ Displays information. ■ Takes you one step back in the menu.

  • Page 10: Setting The Standard Dhw Temperature

    DHW heating Setting the standard DHW temperature Factory settings: 54 °C 2. OK to confirm To change the standard DHW temperature, press the following buttons: 1. +/− for the selected value Operating programs Menu overview I6 = Off I2 = 0 I6 = On I2 = 1 Fig.

  • Page 11: Setting Operating Programs

    DHW heating Operating programs (cont.) Setting operating programs to select the required operating program. Application limits Note Note The heat pump only switches on at outside tempera- The DHW temperature that the heat pump can achieve tures between –5 and 35 °C. depends on the air intake temperature.

  • Page 12: Smart" Operating Program

    DHW heating Operating programs (cont.) "SMART" operating program DHW is heated by the heat pump according to the Setting options: Comfort level SM1 (economy) to SM5 learned draw-off profile. The control unit determines (comfort) the times for DHW heating based on the times when you regularly draw off DHW.

  • Page 13: Out" Operating Program (Holiday Program)

    DHW heating Operating programs (cont.) DHW is heated by the heat pump and immersion To end the "BOOST" operating program early, select a heater to reach the standard DHW temperature as different operating program. quickly as possible. You can adjust the standard DHW temperature at any Note time.

  • Page 14: Program" Operating Program

    DHW heating Operating programs (cont.) "PROGRAM" operating program As with the "AUTO" operating program, but DHW is heated during the time phases set in the time program; see page 15. DHW heating enabled Outside temperature from –5 °C to +35 °C Outside temperature below –5 °C or above +35 °C DHW temperature in °C DHW temperature in °C...

  • Page 15: Setting A Time Program

    DHW heating Operating programs (cont.) DHW heating enabled Outside temperature from –5 °C to +35 °C Outside temperature below –5 °C or above +35 °C DHW temperature in °C DHW temperature in °C Fig. 18 Fig. 19 Heat pump Heat pump Immersion heater Immersion heater DHW temperature achievable with the heat pump...

  • Page 16: Dhw Demand

    DHW heating Setting a time program (cont.) 4. Confirm with OK. 9. Repeat these steps for the other days. 5. Use +/− to select an hour. Note If no button is pressed for 30 seconds, the program ■ 6. Confirm with OK. closes without saving.

  • Page 17: Utilisation Of Power Generated On Site

    Power from a photovoltaic system Utilisation of power generated on site You can use the power generated by your photovoltaic For this, consult your contractor. system for DHW heating.

  • Page 18: Setting The Time And Day

    Further settings Setting the time and day To use the "PROGRAM" operating program, it is Display Meaning essential to set the time and day. "MON" Monday "TUE" Tuesday Changing the time and day "WED" Wednesday 1. Use to select the time setting "THU"...

  • Page 19: Restoring Factory Settings (Reset)

    Further settings Restoring factory settings (reset) Note 2. Confirm with OK. Not possible if a fault message is active, with "dONE" appears. "increased DHW hygiene" or in the "PROGRAM" The factory settings have been restored. operating program. Note 1. Press and hold and OK simultaneously for 3 Time and date need to be set again.

  • Page 20: Checking Information

    Checks Checking information The following information can be checked: Displaying information ■ Annual consumption: Power consumption as calcula- ted by the control unit. The actual power consump- 1. Use to select information tion may vary. ■ Proportion of DHW heating provided by the immer- 2.

  • Page 21: Switching Off The Dhw Heat Pump

    Switching on and off Switching off the DHW heat pump With frost protection monitoring Set the holiday program for the required time; see If the DHW temperature falls below 5 °C, the frost pro- page 13. tection function is enabled. No frost protection monitoring Disconnect the power plug.

  • Page 22: Dhw Heat Pump Does Not Start

    What to do if... DHW heat pump does not start Cause Remedy The power plug is not plugged in. Insert the power plug into the socket. ■ ■ An ON/OFF switch installed on site has not been Turn on the mains isolator. ■...

  • Page 23: Cleaning

    If there is damage to the connecting cables or lines of the appliance or externally installed accessories, these must be replaced with special cables or lines. Only use Viessmann cables / lines as replacement. For this, notify your qualified contractor.
  • Page 24 (Altstoff Recycling Austria AG, licence num- ber 5766). Final decommissioning and disposal of the heating system Viessmann products can be recycled. Components and fluids from your heating systems are not part of ordinary domestic waste. Please speak to your contractor about the correct dis- posal of your old system.
  • Page 25 Keyword index Keyword index Air intake temperatures..........7 Lower cylinder temperature sensor......16 Buttons................. 9 Maintenance...............23 – Cleaning..............23 – DHW cylinder............23 Check Maintenance contract..........23 – Information.............. 20 Minimum stop time function........18 – Message..............20 Childproofing.............. 18 Cleaning..............23 Permissible air intake temperatures......7 Comfort (tips)...............
  • Page 28 Your contact Contact your local contractor if you have any questions about your system or wish to arrange maintenance or repair work. You can find local contractors on the internet at www.viessmann.de. Viessmann Werke GmbH & Co. KG Viessmann Limited...
