Viessmann VITOCAL 060-A Operating Instructions For The System User
Dhw heat pump
Hide thumbs
Also See for VITOCAL 060-A:
- Installation and service instructions manual (64 pages) ,
- Installation and service instructions for contractors (52 pages) ,
- Operating instructions for the system user (28 pages)
Related Manuals for Viessmann VITOCAL 060-A
Summary of Contents for Viessmann VITOCAL 060-A

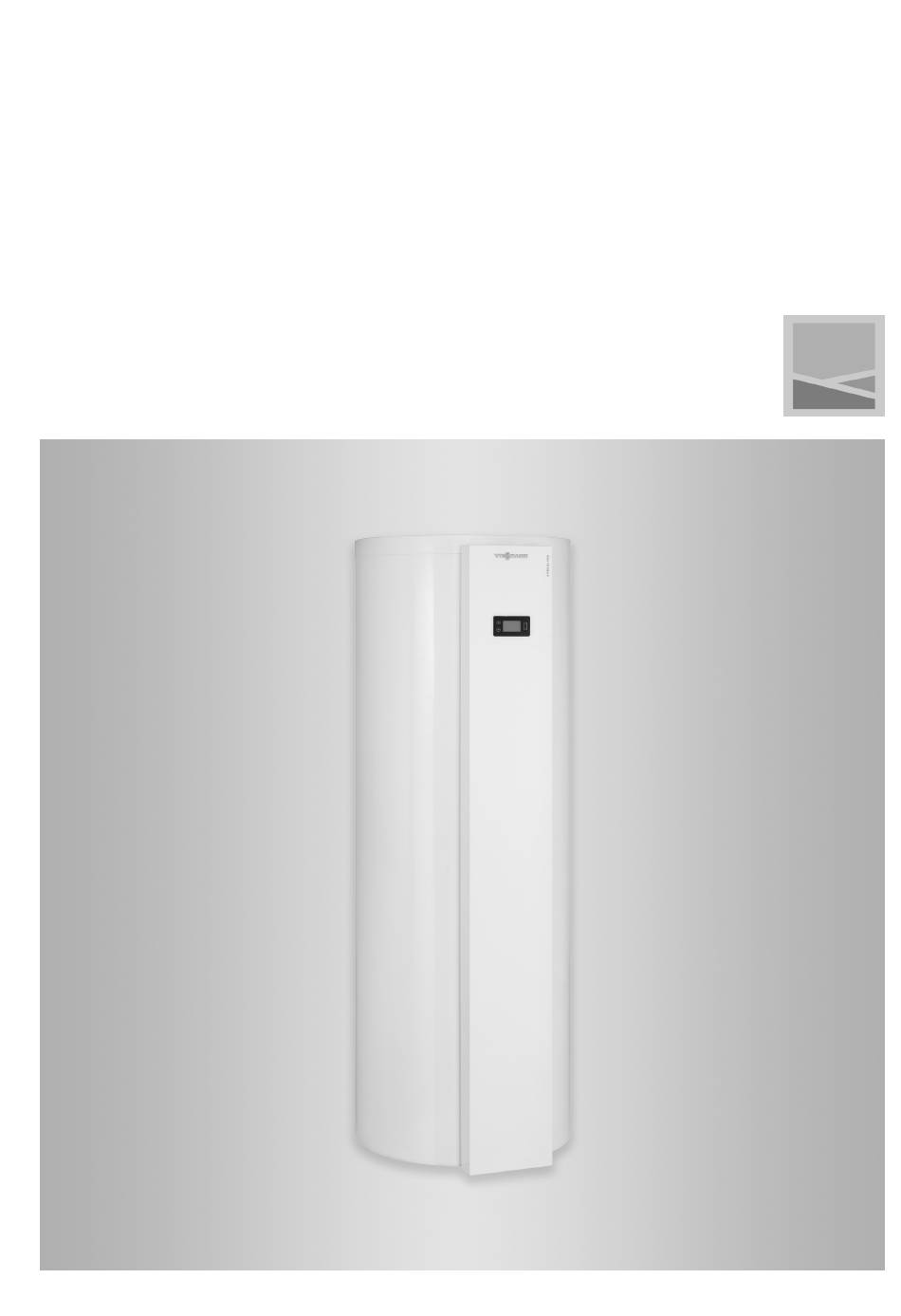

- Page 1 VIESMANN Operating instructions for the system user DHW heat pump Type WWK 060-A with immersion heater EHE Type WWKS 060-A with connection for external heat generator VITOCAL 060-A Please keep safe. 5788 058 GB 6/2015...
- Page 2 Safety instructions For your safety Please follow these safety instructions closely to ■ Never change or remove attachments or fitted prevent accidents and material losses. accessories. Never open or retighten pipe connections. ■ Safety instructions explained Danger Danger Hot surfaces can cause burns. This symbol warns against the risk of injury.
-
Page 3: Table Of Contents
Index Index 1. Introductory information Intended use ..................Appliance description ................Vitocal 060-A, type WWK ..............■ Vitocal 060-A, type WWKS ..............■ Commissioning ..................Permissible air intake temperatures ........... ■ Your system is preset at the factory ............Energy saving tips ................. - Page 4 Appliance description Vitocal 060-A, type WWK The Vitocal 060-A, type WWK is a DHW heat pump When DHW is being heated, the installation room is with an integral DHW cylinder. cooled and dehumidified.
- Page 5 Introductory information Commissioning (cont.) Permissible air intake temperatures The DHW heat pump shuts down outside the permissi- Permissible air inlet temperatures: ble air intake temperatures. You can still heat DHW ■ For DHW heating in recirculation air mode and com- outside the permissible air intake temperatures using bined recirculation air/outdoor air mode (temperature an immersion heater (accessories).
- Page 6 Operation Programming unit Default display Fig. 1 Confirms your selection or saves the setting made. Selects the DHW heat pump operating program, calls up time programs or displays information. + / − Scrolls through the menu or adjusts values. Display Meaning See page "Eco"...
- Page 7 Start-up/shutdown Starting the DHW heat pump After being taken out of use or a power failure lasting longer than 24 hours 1. Check that the power plug is plugged in. Switch 2. Press any key. ON the power supply, e.g. at a separate MCB/fuse The appliance is ready for operation.
- Page 8 DHW heating Standard DHW temperature Factory setting: 54 °C Press the following keys: 1. + / − for the required value. 2. OK to confirm. Operating programs to select the required operating program. Operating program Description DHW is only heated by the heat pump and only up to the maximum set DHW temperature of the heat pump.
- Page 9 DHW heating Time program for DHW (cont.) 2. Press and hold OK for 3 seconds. Note "WEEK" appears. If the time and day have not yet been set, the heat pump control unit will ask you to do this. See Note page 11.
-
Page 10: On-Site Power Consumption
Power from a photovoltaic system On-site power consumption You can use the power generated by your photovoltaic system for DHW heating. For this, consult your contractor. -
Page 11: Time And Day
Further settings Time and day 4. Confirm with OK or wait 3 seconds. To use the PROGRAM operating program, it is essential to set the time and day. The value has been changed. Displays: Changing the time and day "MON" Monday "TUE"... -
Page 12: Calling Up Information
Scanning options Calling up information You can call up information about the proportion of DHW heating provided by the immersion heater and heat pump in the last 30 days. Example Display Meaning "HP:78" The proportion from the heat pump was 78 %. "HE:22"... -
Page 13: Dhw Heat Pump Does Not Start
What to do if... DHW heat pump does not start Cause Remedy The power plug is not plugged in. Insert the power plug into the socket. ■ ■ A switch installed on site has not been switched on. Switch ON the switch. ■... -
Page 14: Cleaning
If there is damage to the connecting cables or lines of the appliance or externally installed accessories, these must be replaced with special cables or lines. Only use Viessmann cables / lines as replacement. For this, notify your qualified contractor. - Page 15 (Altstoff Recycling Austria AG, licence num- ber 5766). Final decommissioning and disposal of the heating system Viessmann products can be recycled. Components and fluids from your heating systems are not part of ordinary domestic waste. Please contact your heating contractor in connection with the correct disposal of your old system.
- Page 16 Inspection..............14 Your contact Contact your local contractor if you have any questions regarding the maintenance and repair of your system. You may, for example, find local contractors on the internet under www.viessmann.com. Viessmann Werke GmbH & Co. KG Viessmann Limited...
