VIESMANN
Service instructions
for contractors

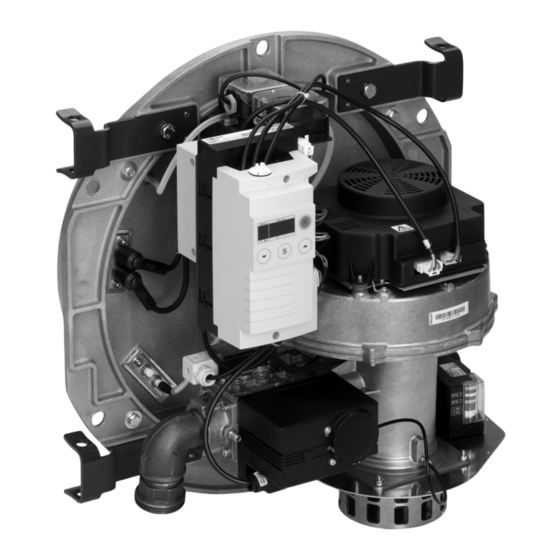

MatriX radiant burner
Type VMIII
Pressure-jet gas burner
for the Vitocrossal 300, type CT3B
Rated heating output 187 to 314 kW
For applicability, see the last page
MatriX radiant burner
Please keep safe.
5609 774 GB
7/2017
