◆Installing the Memory
To install the modules, locate the memory slot on the board and perform the following steps:
(1) Remove the four screws lift from the back cover out of the PT-S2000HX/HXC/LX/LXC.
1

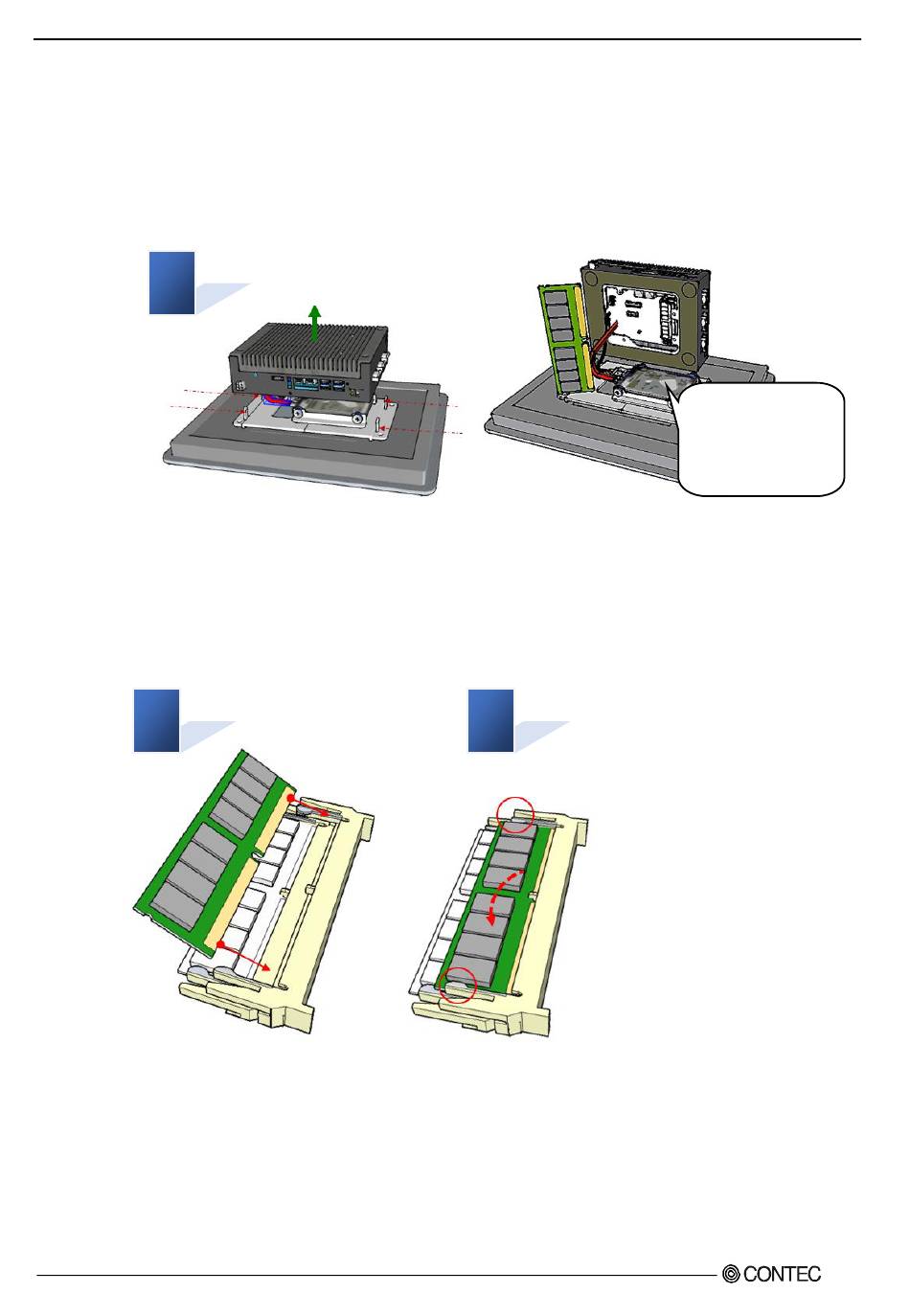

Figure 3.7. Remove back cover
(2) Hold the memory module and align the key of the module with that on the memory slot.
(3) Gently push the module in socket until the ejector tabs of the memory slot close to hold the module in
place when the module touches the bottom of the slot.
2
(To remove the module, press the ejector tabs outwards with your fingertips to eject the
Figure 3.8. Locate the memory module in socket
24
3
PT-S2000HX/HXC/LX/LXC Series User's Manual
locate the
memory slot on
the board.
module.)
