Si01-779

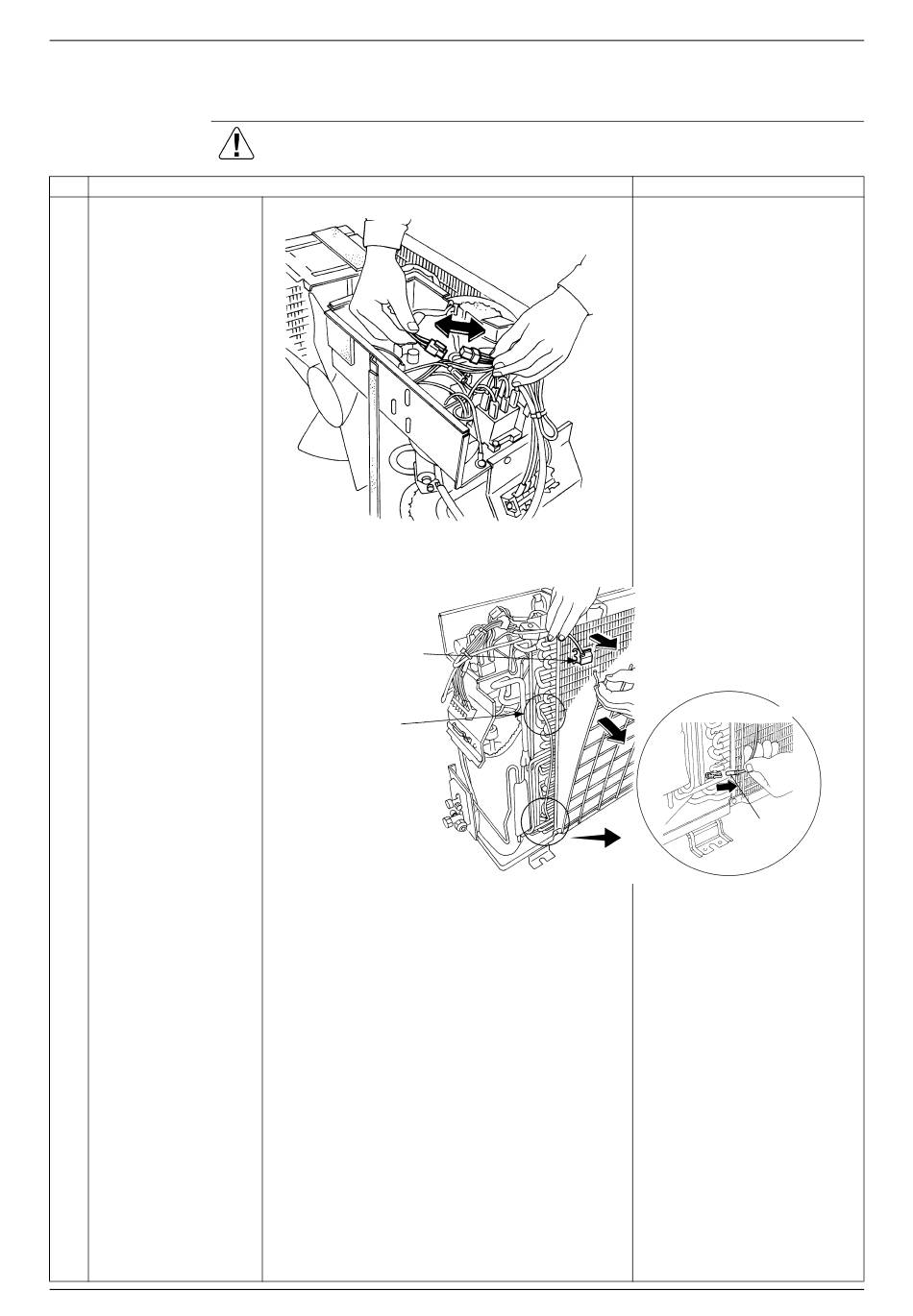

2. Removal of Electrical Components ASSY
Procedure
Step
Disconnect the relay
1
connector for the fan
motor.
Detach the outdoor air
2
thermistor and the
outdoor heat
exchanger.
Removal Procedure
Warning
Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Attach it to the 3rd row of
the outdoor heat exchanger
at 30 mm from the left end
when reassembling.
Route thermistor wire
through the specified
section to prevent wire
pinching.
Removal of Electrical Components ASSY
(R3177)
Thermistor retaining spring
Points
Thermistor
(R2354)
3
