3. Removal of Electrical Components
Procedure
Step
1
Remove the 3 screws
and disconnect the
connecting wire.
Remove the screw and
2
remove the wire clamp.
Remove the screw on
3
the rear side.
4
Lift up the guard net
and remove it.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

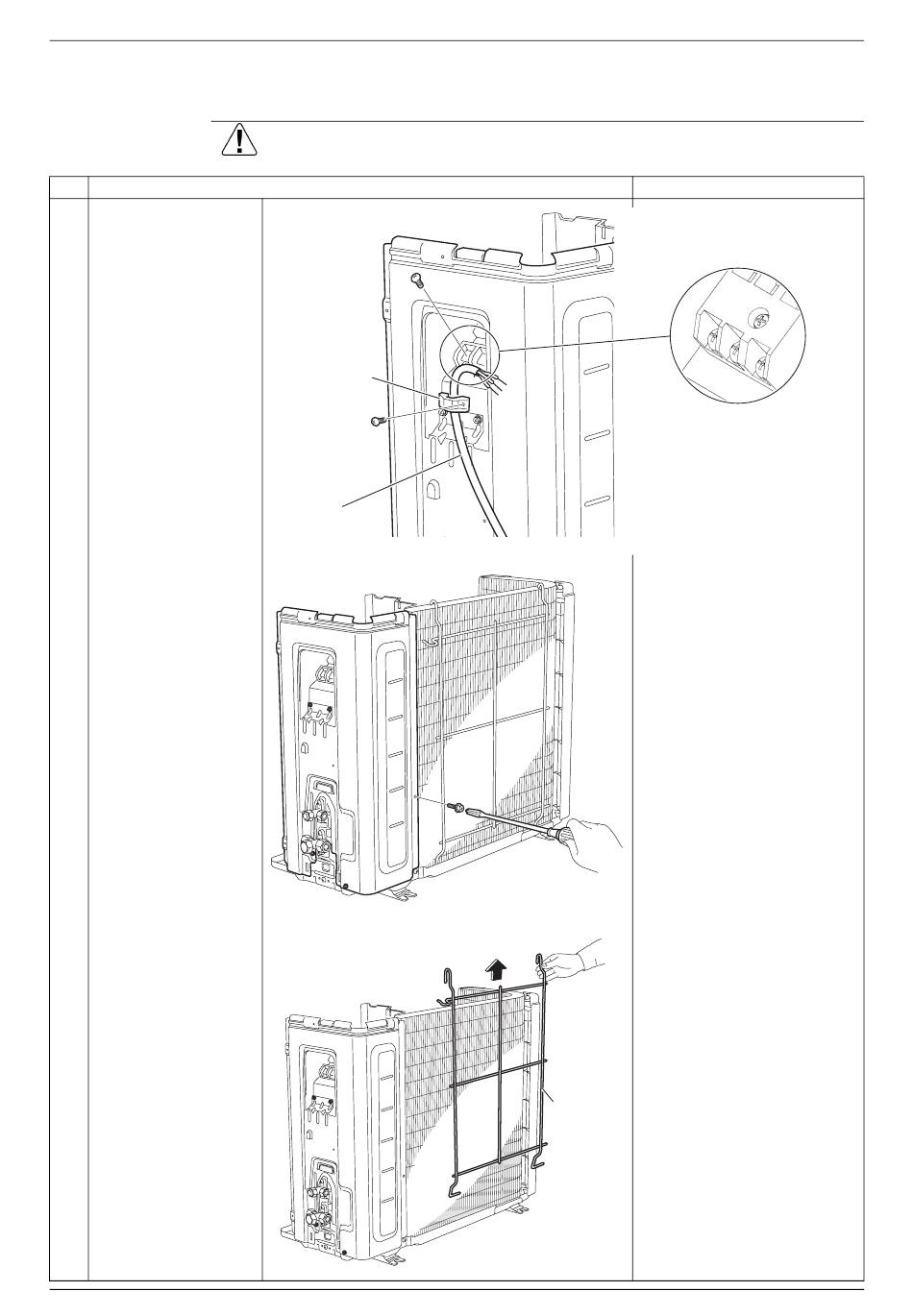

Procedure
Wire clamp
Connecting wire
Removal of Electrical Components
(R15220)
(R15219)
Guard net
(R15221)
Points
