Si01-881
3. Removal of Electrical Components ASSY
Procedure
Step

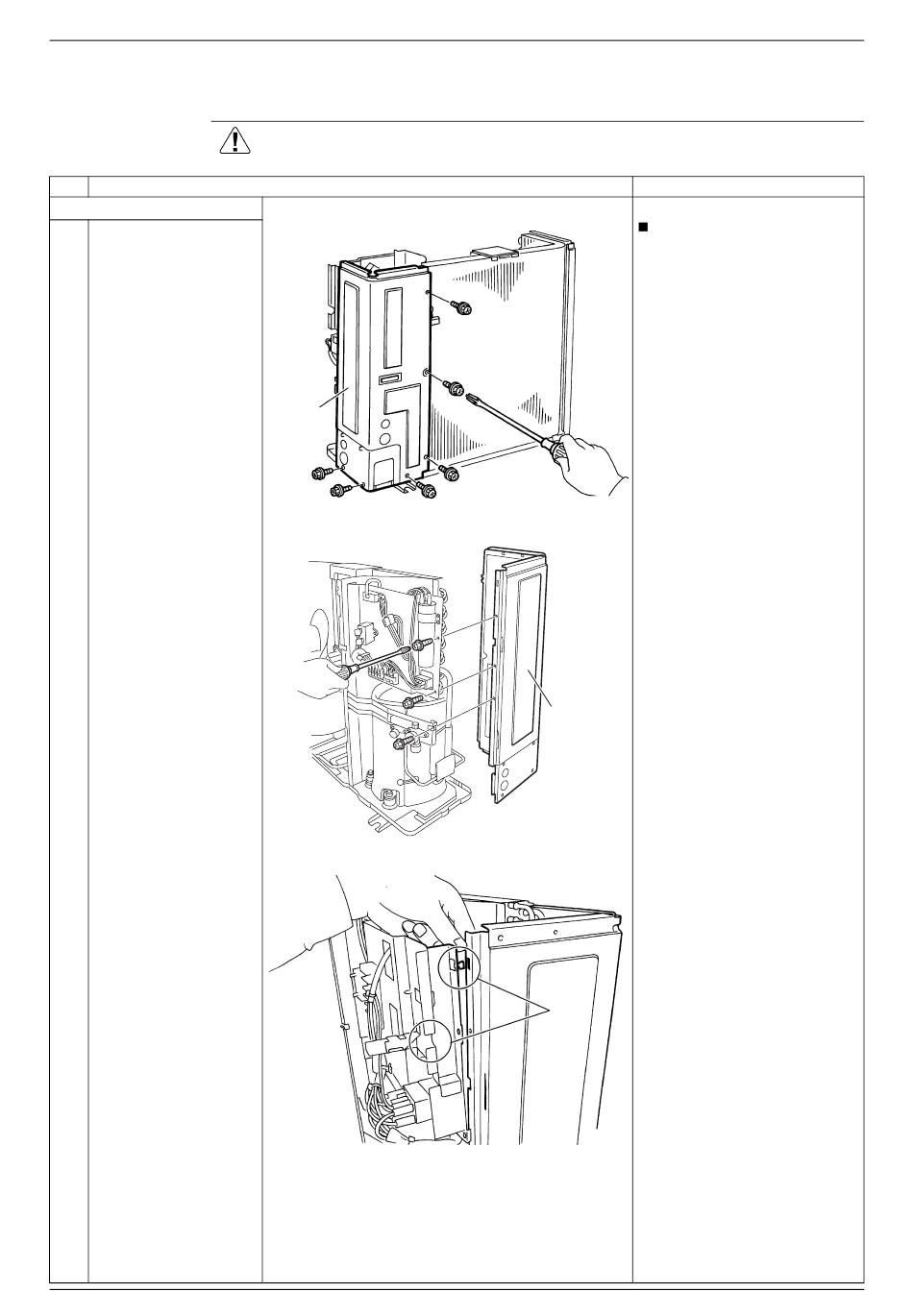

1. Remove the side panel.
1
Remove the 9 screws
and remove the side
panel.
Removal Procedure
Warning
Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Side panel
Removal of Electrical Components ASSY
Preparation
Remove the top panel, front
panel (1) (2), and piping
cover (front) according to the
"Removal of Outer Panels".
(R5440)
Side panel
(R8333)
Hook
(R5442)
Points
7
