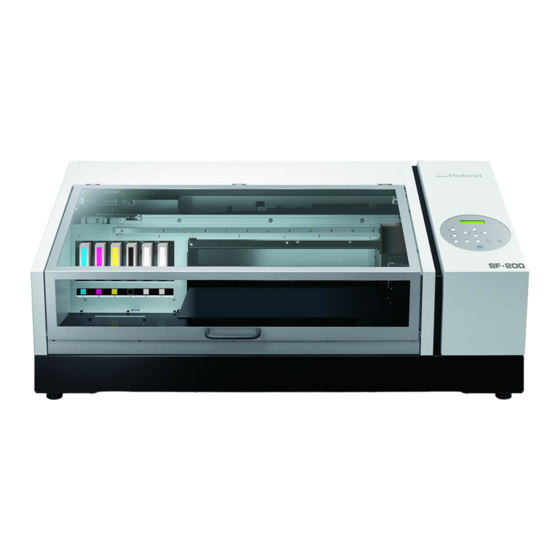

Roland SF-200 Setup Manual
  1. Manuals
  2. Brands
  3. Roland Manuals
  4. Plotter
  5. SF-200
  6. Setup manual

Roland SF-200 Setup Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
• Thank you very much for purchasing this product.
• To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through this manual
completely and store it in a safe location.
• Unauthorized copying or transferal, in whole or in part, of this manual is prohibited.
• The specifications of this product and the contents of this operation manual are subject to change without notice.
• This manual and the product have been prepared and tested as much as possible. If you find any misprints or errors, please inform
Roland DG Corporation.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur through use of this product,
regardless of any failure to perform on the part of this product.
• Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur with respect to any article
made using this product.
R4-210615

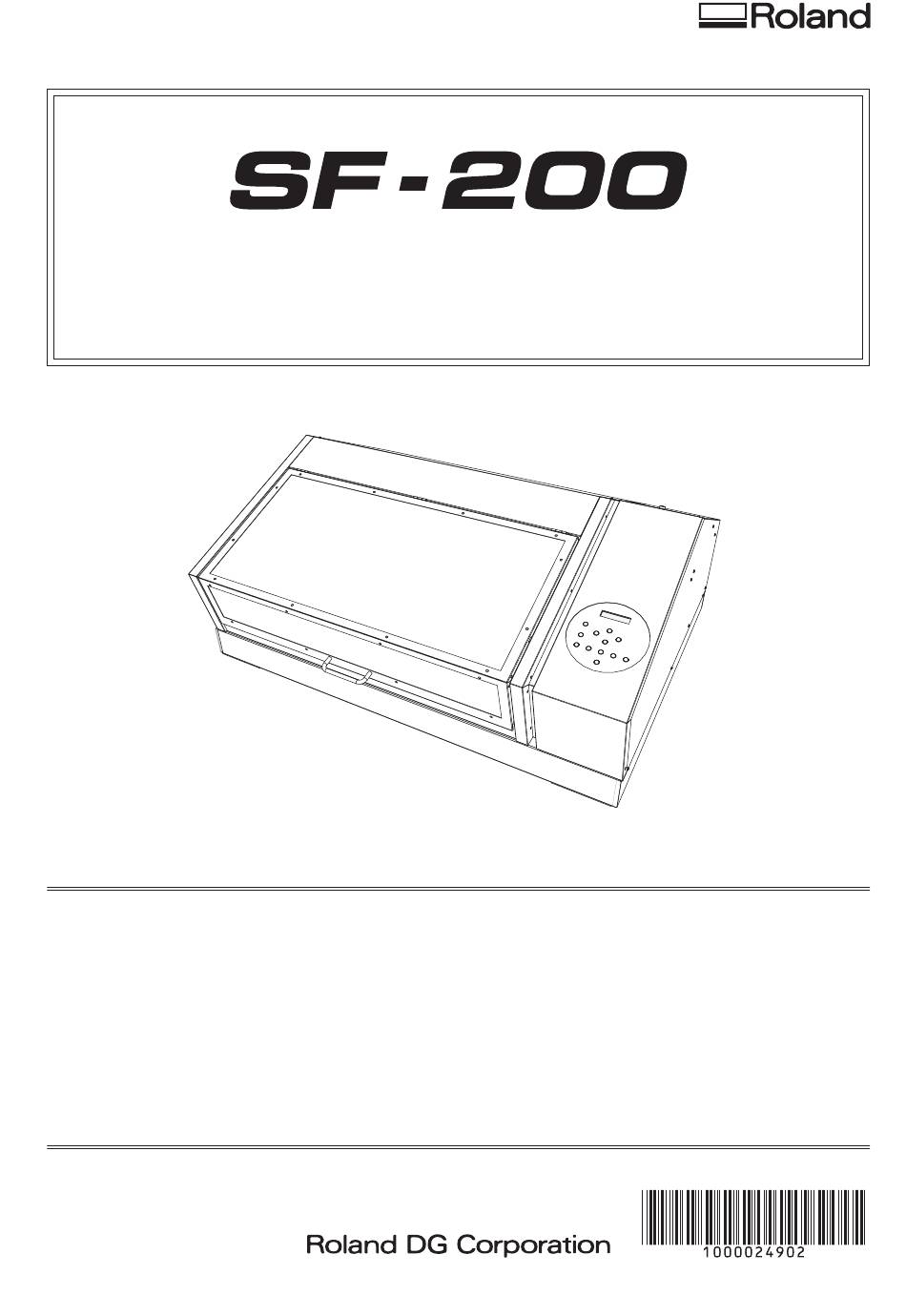

Setup Guide

Advertisement

Table of Contents
loading

Related Manuals for Roland SF-200

Summary of Contents for Roland SF-200

  • Page 1 • This manual and the product have been prepared and tested as much as possible. If you find any misprints or errors, please inform Roland DG Corporation. • Roland DG Corporation assumes no responsibility for any direct or indirect loss or damage that may occur through use of this product, regardless of any failure to perform on the part of this product.
  • Page 2 COMMISSION RADIO FREQUENCY Manufacturer: INTERFERENCE STATEMENT ROLAND DG CORPORATION 1-6-4 Shinmiyakoda, Kita-ku, Hamamatsu-shi, Shizuoka- Responsible Party : Roland DGA Corporation ken, 431-2103 JAPAN Address : 15363 Barranca Parkway Irvine, CA 92618 U.S.A. Telephone : 949-727-2100 The importer in the EU: Type of Equipment :Printer Roland DG Europe Holdings B.V.

  • Page 3: Table Of Contents

    3. Appendix ........................45 Locations of the Power Rating and Serial Number Labels ..................... 46 Specifications ....................................47 Company names and product names are trademarks or registered trademarks of their respective holders. Copyright © 2019 - 2021 Roland DG Corporation http://www.rolanddg.com/...
  • Page 4 For China 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(Ⅵ)) (PBB) (PBDE) 印刷电路板 × ○ ○ ○ ○ ○ 头部 × ○ ○ ○ ○ ○ 壳体、底架 × ○ ○ ○ ○ ○ 电源 × ○ ○ ○ ○...

  • Page 5: Introduction

    1. Introduction To Ensure Safe Use ..........................4 Pour utiliser en toute sécurité ...................... 11 Machine Highlights ......................... 18 Features of This Machine ....................18 About the User's Manuals for This Machine ..............18 1.Introduction...

  • Page 6: To Ensure Safe Use

    To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points that must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
  • Page 7 To Ensure Safe Use Incorrect operation may cause injury WARNING WARNING Always unplug the power cord when Conduct operations in a clean, brightly lit attaching or removing parts and optional location. parts and when performing cleaning or Working in a location that is dark or cluttered maintenance that does not require the may lead to an accident, such as becoming machine to be connected to a power source.
  • Page 8 Contact your machine. authorized Roland DG Corporation dealer. Incompatible items may lead to an accident. Never use outside or in any location where Do not use the supplied power cord for exposure to water or high humidity may other products.
  • Page 9 To Ensure Safe Use Important notes about the power cord, plug, and electrical outlet Never place any object on Never bend or twist Never pull with Never bundle, bind, or top or subject to damage. with excessive force. excessive force. roll up.
  • Page 10 To Ensure Safe Use In the event of ingestion or physical distress • In the event of contact with the eyes, immediately flush with water for at least 15 minutes. If eye irritation continues, seek treatment by a physician. • In the event of contact with skin, immediately wash with soap. If irritation or inflammation occurs, seek treatment by a physician.
  • Page 11 To Ensure Safe Use Warning Labels Warning labels are affixed to the machine to make areas of danger immediately clear. The meanings of these labels are as follows. Be sure to heed their warnings. Also, never remove the labels or allow them to become dirty. Caution: Pinching Hazard Be careful not to allow the fingers to become pinched when closing covers.
  • Page 12 To Ensure Safe Use Ink, cleaning fluid, and discharged fluid are flammable and toxic. If these fluids come into contact with the eyes or skin, it may be hazardous to the health. When performing maintenance work, for example when disposing of discharged fluid, wear protective eyewear and protective gloves (refer to the safety data sheet [SDS]).

  • Page 13: Pour Utiliser En Toute Sécurité

    Pour utiliser en toute sécurité La manipulation ou l’utilisation inadéquate de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. À propos des avis ATTENTION et PRUDENCE Utilisé...
  • Page 14 Pour utiliser en toute sécurité Une utilisation incorrecte peut causer des blessures ATTENTION ATTENTION Toujours débrancher le câble Utiliser l'appareil dans un endroit propre et d’alimentation lors de la fixation ou du bien éclairé. retrait de pièces et de pièces en option et Travailler dans un endroit sombre ou du nettoyage ou des travaux d’entretien encombré...
  • Page 15 Continuer à utiliser l'appareil peut causer un l'appareil près d'une prise électrique. En outre, incendie, un choc électrique ou des blessures. prévoir suffisamment d'espace pour que la Communiquer avec le représentant Roland prise électrique soit facile d'accès. DG Corporation autorisé. Utiliser uniquement des accessoires Ne jamais utiliser à...
  • Page 16 Pour utiliser en toute sécurité Remarques importantes à propos du câble d'alimentation, de la fiche et de la prise électrique. Ne jamais déposer aucun Ne jamais plier ni Ne jamais tirer avec Ne jamais plier ni objet dessus au risque tordre avec une force une force excessive.
  • Page 17 Pour utiliser en toute sécurité En cas d'ingestion ou de trouble physique • En cas de contact avec les yeux : rincer immédiatement et abondamment à l'eau courante pendant au moins 15 minutes. Si les yeux sont toujours irrités, consulter un médecin. •...
  • Page 18 Pour utiliser en toute sécurité Vignettes d’avertissement Des vignettes d’avertissement sont apposées pour qu’il soit facile de repérer les zones dangereuses. La signification des vignettes est donnée ci-dessous. Respecter les avertissements. Ne jamais retirer les vignettes et ne pas les laisser s’encrasser.
  • Page 19 Pour utiliser en toute sécurité L'encre, les liquides nettoyants et les liquides usés sont inflammables et toxiques. Si ces liquides entrent en contact avec les yeux ou la peau, ils peuvent être dangereux pour la santé. Lors des travaux d'entretien, par exemple lors de l'élimination des liquides évacués, porter des lunettes de protection et des gants de protection (voir la fiche de sécurité...

  • Page 20: Machine Highlights

    This manual contains details such as how to use and maintain the machine as well as an FAQ (a set of frequently asked questions). You can view and download the electronic-format manual from the following URL or QR code. https://downloadcenter.rolanddg.com/SF-200 * You can also view and download the paper manuals. * You can also view this website from a smartphone.

  • Page 21: Installation

    2. Installation Deciding On an Installation Environment ................20 Deciding On an Installation Site ..................20 Temperature and Humidity ....................21 Installation Space and Height ..................21 Air Ventilation ........................21 Installation Stand........................21 Checking the Included Items ....................... 22 Setting Up the Machine .........................

  • Page 22: Deciding On An Installation Environment

    Deciding On an Installation Environment Deciding On an Installation Site Install the machine in a quiet, stable location offering good operating conditions. An unsuitable location can cause accidents, fire, faulty operation, or breakdown. WARNING Install the machine in a location that is level, stable, and able to bear the weight of the machine.

  • Page 23: Temperature And Humidity

    For installation of a ventilation machine, contact your authorized Roland DG Corporation dealer. Installation Stand Use a stand specified by Roland DG Corporation or an installation stand that meets the following conditions. • Material: Not resin (examples: metal and wood) •...

  • Page 24: Checking The Included Items

    Checking the Included Items The following items are included with the machine. Make sure they are all present and accounted for. SOL INK cleaning Positioning jigs (4) Power cord (1) Mist filters (4) cartridges (2) Retaining screws (8) Cleaning sticks Cleaning liquid (2) Tweezers (1) Wipers (6) Hexagonal wrench Drain bottle (1) Pad trays (2)

  • Page 25: Setting Up The Machine

    • Make sure to remove all the retainers. Any that remain may cause faulty operation or breakdown when the power is switched on. • Store the retainers carefully because they are needed again when transporting the machine. • For transportation of this machine, contact your authorized Roland DG Corporation dealer. Procedure Open the front cover.
  • Page 26 Setting Up the Machine Remove the retainers. Remove retainer A and retainer B. Retainer A Retainer B Screw You can store the retainers in the locations indicated in the illustration. Use the screws previously attached to the retainers to attach them to the machine. Inside Retainer A Screw...
  • Page 27 Setting Up the Machine Push the print-head carriage to the right side. Push the print-head carriage until an audible click is heard. CAUTION When moving the print-head carriage by hand, be sure to push the specified position. Moving it by pushing positions other than that specified may deform and damage the cover. (1): Position to push with your hand Move the print-head carriage to the position indicated in the picture. Move the print-head carriage by hand.
  • Page 28 Setting Up the Machine Remove retainer C. Close the panel cover. Close the front cover. 2.Installation...

  • Page 29: Step 2: Attaching The Pad Tray

    Setting Up the Machine Step 2: Attaching the Pad Tray The pad tray prevents discharged fluid from entering the machine when discharged fluid spills from the drain bottle. Point When the pad tray gets dirty, replace it with a spare pad tray (included) as needed. Procedure Open the panel cover.
  • Page 30 Setting Up the Machine Place the pad tray on the place where the drain bottle was stored. Point Place the pad tray so that it is not creased or loose. If the pad tray is creased or loose, it will be difficult to install the drain bottle.

  • Page 31: Step 3: Connecting The Cables

    Setting Up the Machine Step 3: Connecting the Cables WARNING Perform this task with all power switches left switched off. Otherwise sudden movement of the machine may cause injury. WARNING Connect to an electrical outlet that complies with this machine's ratings (for voltage, frequency, and current). Incorrect voltage or insufficient current may cause fire or electrical shock. WARNING Connect the machine to ground.

  • Page 32: Step 4: Initial Settings

    Setting Up the Machine Step 4: Initial Settings IMPORTANT Be sure to hold the handle of the front cover and open and close it gently. Handle Procedure Close the front cover. Turn on the main power switch. Hold down [MENU] and press the sub power switch. Press [ ] or [ ] to select the language you want.

  • Page 33: Step 5: Ink Filling

    Setting Up the Machine Press [ ] or [ ] to select the unit of measurement you want for temperature. TEMP. UNIT 。 。 Press [ENTER] to confirm your entry. Step 5: Ink Filling Firstly, clean the print heads with cleaning liquid when installing ink cartridges for the first time after shipment from the factory.
  • Page 34 Be careful not to insert the wrong cartridges. If you insert an incorrect cartridge by mistake, contact your authorized Roland DG Corporation dealer. • Be sure to insert cartridges horizontally. Otherwise, cleaning and filling may not be performed properly.
  • Page 35 Setting Up the Machine Select the ink type. When the following screen appears, press [ENTER] to confirm your entry. SELECT INK TYPE ECO-UV4 CMYKWW Ink type Ink cartridge to use ECO-UV4 Ink cartridge ECO-UV4 CMYKWW Cyan, magenta, yellow, black, white, white Make sure the drain bottle is installed. INSTALL DRAIN BOTTLE Press [ENTER] to confirm your entry.
  • Page 36 Setting Up the Machine When the following screen is displayed, insert SOL INK cleaning cartridges into the slots whose numbers are flashing. The SOL INK cleaning cartridges are not differentiated by color. SET CL-LIQUID The screen shown below appears. FILLING INK... > When the following screen is displayed, remove the SOL INK cleaning cartridges whose slot numbers are flashing.
  • Page 37 Setting Up the Machine Remove the drain bottle and discard the discharged fluid. IMPORTANT When you remove the drain bottle, a few drops of discharged fluid may come out of the machine. Exercise caution to prevent this fluid from soiling your hands. Quickly attach the emptied drain bottle to the machine once more. Close the panel cover.
  • Page 38 Setting Up the Machine Insert the ink cartridge for each color. IMPORTANT Be sure to hold the handle of the front cover and open and close it gently. Before inserting ink cartridges, shake each of them 50 times (about 15 seconds). The precipitation of the ingredients in the ink disables printing in normal color. So that the ink mixes well, shake the ink cartridge horizontally with a stroke length of around 5 cm (2 in.) from each end of the ink cartridge.
  • Page 39 Setting Up the Machine Quickly attach the emptied drain bottle to the machine once more. Close the panel cover. Make sure the drain bottle is installed, and then press [ENTER]. When the following screen is displayed, filling with ink is finished. SETUP MEDIA Close the front cover.

  • Page 40: Connecting To The Computer

    Connecting to the Computer Introduction Make sure the machine is connected to the network by an Ethernet cable. The network settings on the machine must be made manually, using the operation panel. For information about how to make the settings, refer to P. 41 "Step 2: Make the Network Settings on the Printer" later in this step. Also, to perform printing from this machine, the software RIP included with the machine must be installed on the computer you are using.

  • Page 41: Step 1: Make The Network Settings For The Computer

    Connecting to the Computer Step 1: Make the Network Settings for the Computer Procedure Log on to Windows as the "Administrator" or a member of the "Administrators" group. Display the [Local Area Connection Status] dialog box. Windows 10 users From the [Start] menu, click [Settings], and then click [Network & Internet]. Click [Network and Sharing Center].
  • Page 42 Connecting to the Computer Select [Internet Protocol Version 4 (TCP/IPv4)], and then click [Properties]. MEMO If the [Internet Protocol] check box is clear, select it. Select [Use the following IP address]. Enter the information as shown below, then click [OK]. Item Address to enter IP address 192.168.0.XXX Subnet mask 255.255.255.0 Here, "XXX"...

  • Page 43: Step 2: Make The Network Settings On The Printer

    Connecting to the Computer Step 2: Make the Network Settings on the Printer IMPORTANT The addresses used in this section are merely example settings. For detailed information about the settings, consult your network administrator. Set the IP address. Press [MENU]. Press [ ] several times to display the screen shown below.
  • Page 44 Connecting to the Computer Set the subnet mask. Press [ ]. The screen shown below appears. NETWORK SUBNET MASK Press [ ] twice to display the screen shown below. SUBNET MASK 000.000.000.000 Press [ ] or [ ] to select the address number. Press [ ].

  • Page 45: Step 3: Make The Port Settings For The Software Rip

    Connecting to the Computer Set the gateway address. Press [ ]. The screen shown below appears. NETWORK GATEWAY ADDR. Press [ ] twice to display the screen shown below. GATEWAY ADDR. 000.000.000.000 Press [ ] or [ ] to select the address number. Press [ ].
  • Page 46 Connecting to the Computer 2.Installation...

  • Page 47: Appendix

     .3Appendix Locations of the Power Rating and Serial Number Labels ........46 Specifications ........................47 3.Appendix...

  • Page 48: Locations Of The Power Rating And Serial Number Labels

    Locations of the Power Rating and Serial Number Labels • Serial Number This number is required when you seek maintenance, servicing, or support. Never peel off the label. • Power Rating Use an electrical outlet that meets the requirements for voltage, frequency, and amperage given here. 3.Appendix...

  • Page 49: Specifications

    Max. 5 kg (11 lb.) Maximum printing width/printing length Max. 508 (width) × 330 (length) mm (20 × 13 in.) Type Ink specified by Roland DG Corporation Five colors (cyan, magenta, yellow, black, and white) Color Printing resolution (dots per inch) Max.
