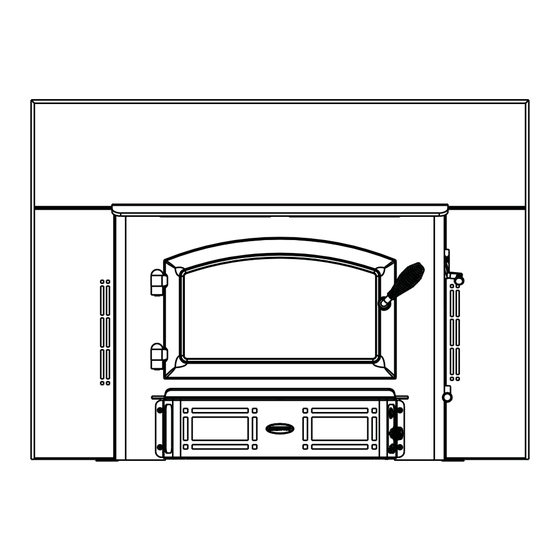

Quadra-Fire 27I-ACC Installation Manual

2700 insert wood insert automatic combustion control (acc)
Hide thumbs Also See for 27I-ACC:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
2700 INSERT WOOD INSERT
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL(S):
27I-ACC
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
7046-192I
R
If the information in these instructions is
not followed exactly, a fire could result
causing property damage, personal injury,
or death.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
•
Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void
your warranty.
•
Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
•
Do not touch glass until it is cooled
•
Use leather gloves when reloading fuel
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room
as appliance.
•
Alert children and adults to hazards of
high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate
poisonous gases (i.e. carbon monoxide).
NOTE: To obtain a French translation of this
manual, please contact your dealer or visit
www.quadrafire.com
REMARQUE : Pour obtenir une traduction française de
ce manuel, s'il vous plaît contacter votre
revendeur ou visitez
WARNING
WARNING
WARNING
www.quadrafire.com
November 22, 2019
