Crestron iLux CLS-IRHT8 User Manual

iLux IR Remote: CLS-IRHT8
Features and Functions

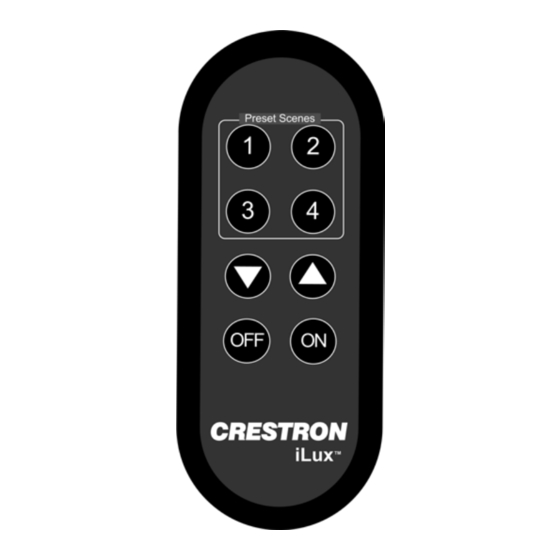

The CLS-IRHT8 remote control is a hand-held wireless
IR transmitter that provides convenient control of the
®
Crestron CLS-C6 and CLS-C6M lighting systems.
The CLS-IRHT8 is powered by two AA batteries
(supplied) and requires no programming. The unit enables
recall of scenes 1 – 4 and the On and Off scenes. It also
enables master raise and lower functions on the last
recalled scene.
If the CLS-IRHT8 will be used to control two or more
combined CLS-C6 units, consult your dealer for proper
configuration of the CLS-C6.
Installing Batteries
To install the batteries, remove the snap-in cover on the
rear compartment, insert two AA batteries (supplied),
observing the indicated polarity, and reattach the cover.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
™
iLux Lighting Systems
Specifications
Following are specifications for the iLux IR Remote.
CLS-IRHT8 Specifications
SPECIFICATION
Power Requirements
IR Transmitter
Format
Range
Environmental Temperature
Humidity
Overall Dimensions:
Height
Width
Depth
Weight
Industry Compliance
NOTE: This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Further Inquiries
If you cannot locate specific information or have
questions after reviewing this guide, please take
advantage of Crestron's award winning customer service
team by calling the Crestron corporate headquarters at
1-888-CRESTRON [1-888-273-7876]. For assistance in
your local time zone, refer to the Crestron website
(www.crestron.com) for a listing of Crestron worldwide
offices.
You can also log onto the online help section of the
Crestron website to ask questions about Crestron
products. First-time users will need to establish a user
account to fully benefit from all available features.
Operations Guide – DOC. 6419
DETAILS
3.0 VDC (Two 1.5V AA alkaline
batteries included)
38 kHz IR
RC5
40 feet
32° to 104°F (0° to 40°C)
10% to 90% RH
(non-condensing)
4.33 in (11.00 cm)
1.77 in (4.50 cm)
0.73 in (1.86 cm)
1.7 oz (47.6 g) without batteries
(2014332)
12.05
Specifications subject to
change without notice.
