Technical Specifications
Power
AC 120V~60Hz
Fuse
20mm Glass 6.3A Fast Blow
1 x 24V 250W
Lamps
Part No. ELC3 24V 250W (300 Hrs)
DMX-100
263mm x 314mm x 202mm / 10.35in x 12.36in x 7.95in
Dimension
DMX-100S/DMX-100B
470 x 314 x 245 mm / 18.5in x 12.36in x 9.65in
7.7 kg / 16.94 lbs ( DMX-100 )
Weight
10 kg / 22 lbs ( DMX-100S/DMX-100B )
User Information (Please complete for your records)
Data Purchased :
/
Dealer Stamp :

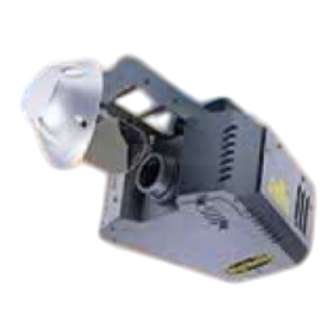

Model : DMX-100 FASCINATION
AC 230V~50Hz
20mm Glass 5A Fast Blow
/
Serial No. :
DMX-100S IMAGINATION
DMX-100B SENSATION
FASCINATION
DMX-100
IMAGINATION
DMX-100S
SENSATION
DMX-100B
User Guide
Please read these instructions carefully before use
World-wide Headquarters:
th
3000 North 29
Ct., Hollywood, FL
USA 33020
Tel: +1-954-929-1115 Fax: +1-954-929-5560
www.ChauvetLighting.com
Advertisement
Related Manuals for Chauvet DMX-100
Summary of Contents for Chauvet DMX-100
-
Page 1: User Guide
263mm x 314mm x 202mm / 10.35in x 12.36in x 7.95in Dimension DMX-100S/DMX-100B 470 x 314 x 245 mm / 18.5in x 12.36in x 9.65in 7.7 kg / 16.94 lbs ( DMX-100 ) Weight 10 kg / 22 lbs ( DMX-100S/DMX-100B ) User Information (Please complete for your records) Data Purchased : Serial No. -
Page 2: Fixture Cleaning
E. FIXTURE CLEANING The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. •... - Page 3 CA-6 ( 3 ) By easy controller The easy remote control is used only in master/slave mode. By connecting to the 1/4” microphone jack of the first unit (its DMX input plug is not used), you will find that the remote control on the first unit will control all the other units for stand by, Strobe/Next and Fast/Slow function.
- Page 4 ( 2 ) Preprogram functions DMX-100 can be linked together as master/slave in 2 or 4 channels and run by built in preprogrammed chase sequences by sound activation. When sound stops, all the lights will shut down (blackout) immediately and then the bulb will turn off 15 seconds later.
-
Page 5: General Instructions
DMX512 CONFIGURATION Channel 1 Channel 2 Channel 3 Shutter Gobo / Color Reflector mirror Flat Fast strobe Fastest speed Stopped Slowest speed Stopped Gobo 14 / Green + Pink Gobo 13 / White Gobo 12 / Blue Gobo 11 / Orange Gobo 10 / Magenta Gobo 9 /Pink Gobo 8 / Light Blue... -
Page 6: Main Features
263 x 314 x 202 mm / 10.35in x 12.36in x 7.95in DMX-100S / DMX-100B 470 x 314 x 245 mm / 18.5in x 12.36in x 9.65in • Weight： 7.7 kg / 16.94 lbs ( DMX-100 ) 10 kg / 22 lbs ( DMX-100S / DMX-100B ) C. LAMP ELC3 24V 250W (300 Hrs) •...
